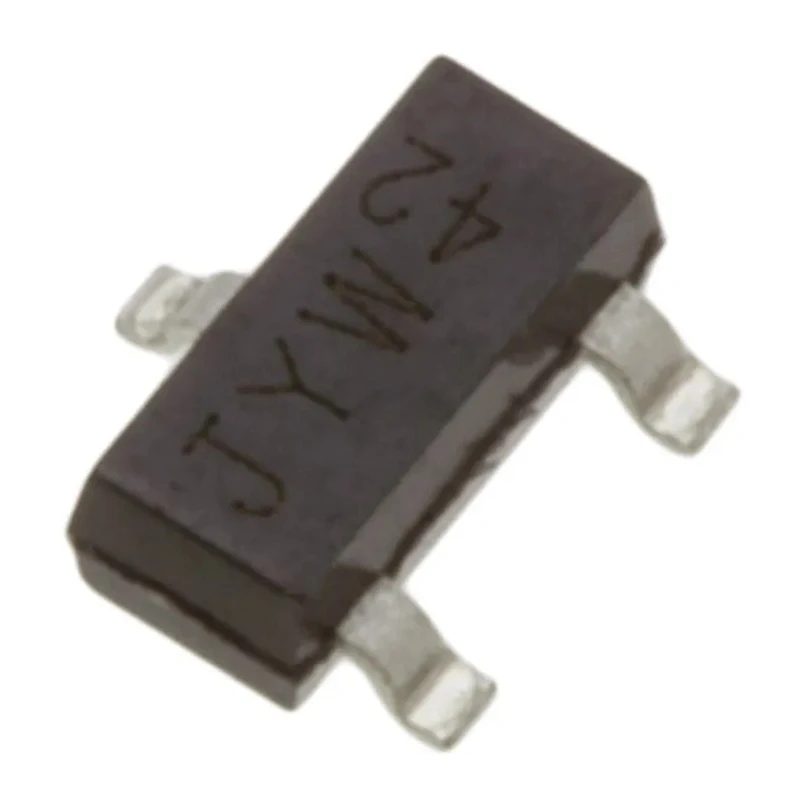

Nexperia Low Leakage 85 V 160 mA Surface Mount Diode 3-Pin SOT-23 BAV199,215

Nexperia BAV199,215 low leakage diode is a surface mount semiconductor designed for efficient rectification and switching in electronic circuits. Encapsulated in a compact 3-pin SOT-23 package, it supports customised high-density circuit designs with minimal leakage current and excellent high voltage endurance up to 85 V.

This diode is rated for a maximum continuous forward current of 160 mA and can tolerate peak surge currents of up to 4 A, making it suitable for various sensitive electronic applications. Its low forward voltage of 1.25 V and ultra-low peak reverse current of 5 nA minimize power loss and improve efficiency.

Operating temperature ranges from -65°C to 150°C, allowing reliable performance even in harsh environments, while a peak reverse recovery time of 3 μs ensures fast switching capabilities.

The compact dimensions (3 mm length, 1.4 mm width, 1 mm height) enable space-saving implementations on printed circuit boards. Additionally, this diode conforms to the automotive standard AEC-Q101, making it apt for automotive electronics requiring rigorous quality standards.

This diode is ideal for industrial electronics, power management circuits, communication systems, and automotive uses where low leakage and fast switching diodes are critical components.

Designed for low leakage current and high switching speeds. Supports customised high-density circuit designs. Capable of operating between -65°C to 150°C. Features a peak reverse repetitive voltage of 85 V. Maximum continuous forward current of 160 mA.

Low capacitance suitable for fast switching applications. Compact dimensions: length 3 mm, width 1.4 mm, height 1 mm. Conforms to automotive standard AEC-Q101. Peak forward surge current up to 4 A ensures robustness. Explore more high-quality semiconductor components and rectify your electronics supply needs with EnvMart’s extensive inventory.
