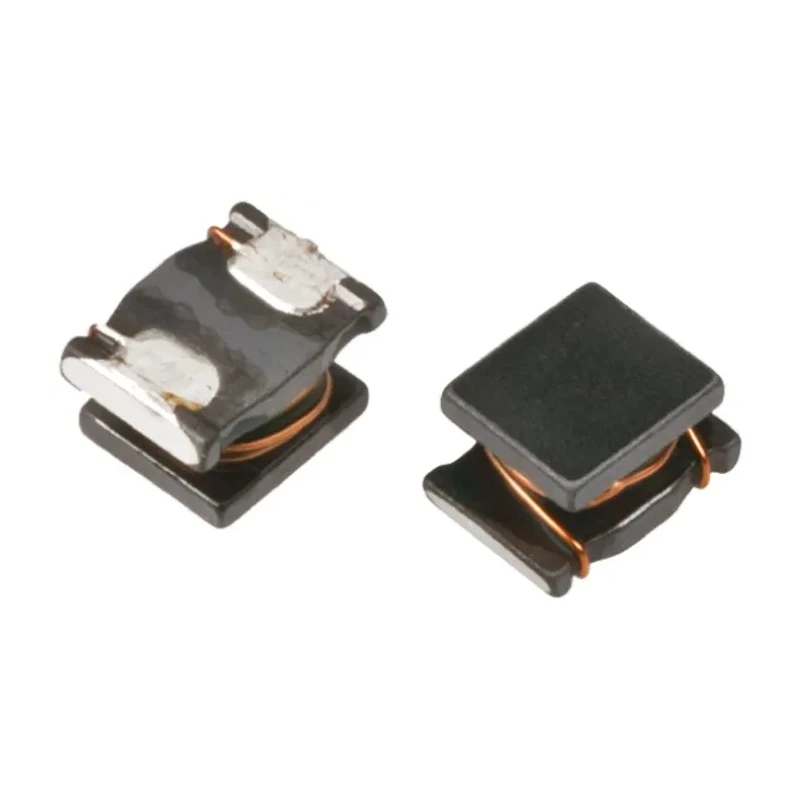

Murata 1812 Shielded Wirewound Surface Mount Inductor with Ferrite Core 100 μH ±10% 190 mA LQH43CN

The Murata LQH43CN is a high-quality shielded wirewound Surface Mount Inductor with a ferrite core, designed for reliable filtration and energy storage in electronic circuits. This component has an inductance of 100 μH with a tolerance of ±10%, supporting a maximum DC current of 190 mA.

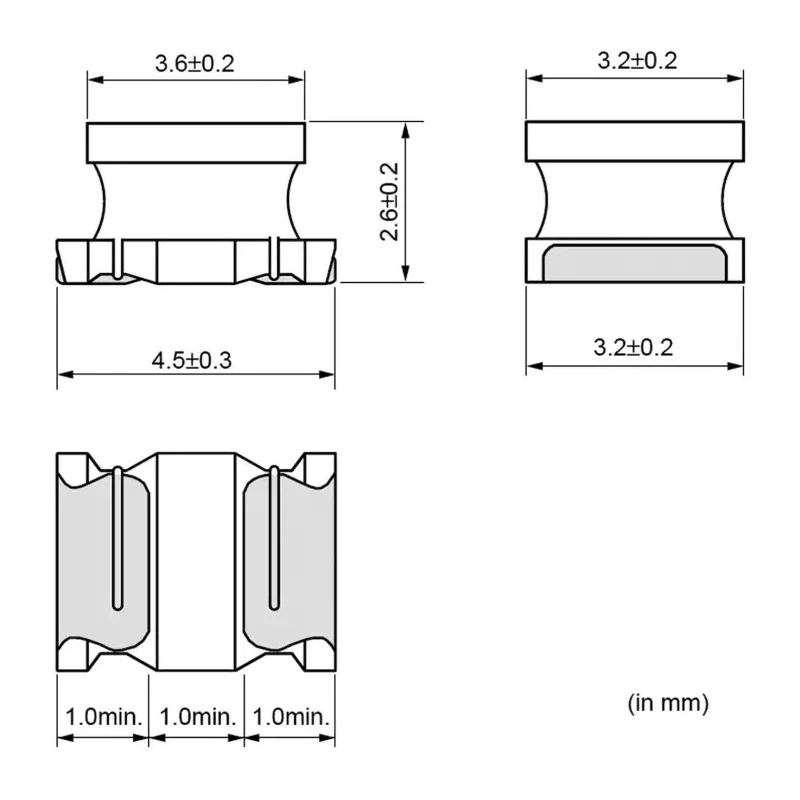

Manufactured in Japan, the inductor is housed in a compact 1812 surface mount package measuring 4.5 mm in length, 2.6 mm in height, and 3.2 mm in depth, making it suitable for high-density PCB layouts.

The wirewound construction provides excellent electrical stability and a maximum DC resistance of 2.2 Ω ensures minimal power loss. The ferrite core enhances magnetic properties, improving performance under varying temperature and load conditions.

The component offers effective shielding to reduce electromagnetic interference, critical in sensitive power supply and signal filtering applications. It operates reliably in temperatures from −40°C to 85°C, which covers typical industrial operating environments.

This inductor complies with RoHS standards, guaranteeing environmentally friendly manufacturing processes with no hazardous substances. It is widely used in switch-mode power supplies and other electronic filtration circuits where stable inductance and durability are required.

This wirewound inductor is shielded to minimize EMI for cleaner signal performance. Its ferrite core construction ensures efficient inductance stability under temperature fluctuation. The 1812 package is standard for surface mount technology assembly.

Operates at a maximum DC current of 190 mA with low 2.2 Ω DC resistance. Suitable for industrial and commercial electronic applications requiring reliable filtration. Explore Murata inductors and related electronic passive components on EnvMart for trusted performance and quality.
