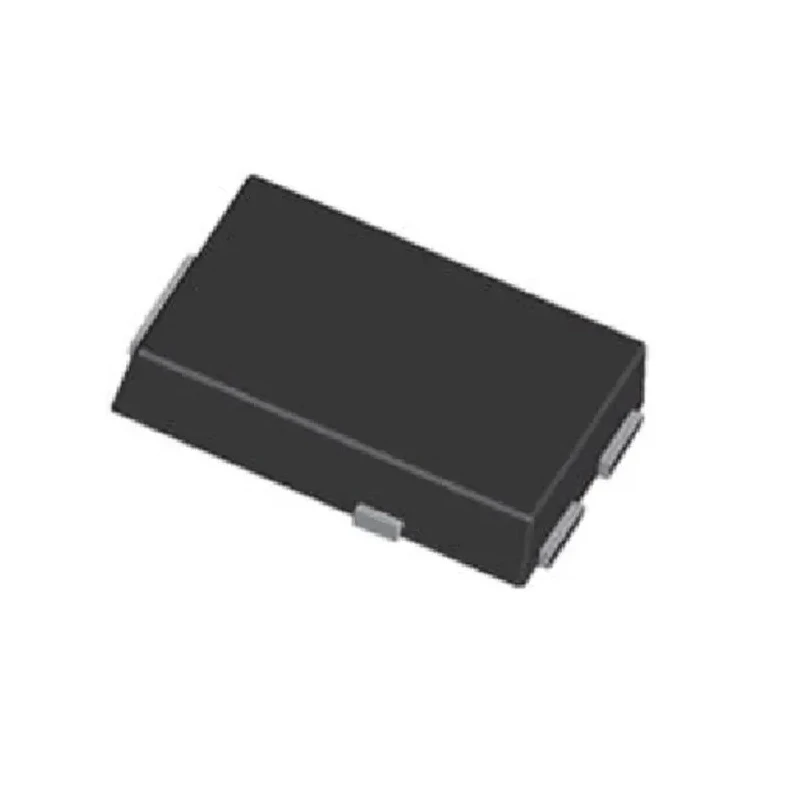

Vishay 150 V 15 A Schottky Barrier Schottky Rectifier Surface Mount TO-252 V15PM153HM3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | V15PM153HM3/H |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 15A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 0.62V |
Key Features
- Uses Trench MOS Barrier Schottky technology for low forward voltage drop.
- Suitable for DC/DC converters, freewheeling diodes, and polarity protection.
- Typical package height is 1.3 mm enabling very low profile design.
- Rated for continuous forward current of 15 A and peak surge current of 200 A.
- Operates over a temperature range from -65°C to 150°C.
- Complies with RoHS and is AEC-Q101 qualified for automotive applications.
- Ideal for automated placement processes in circuit assembly.
- Provides high current density surface-mount performance.
Product Description
Vishay V15PM153HM3/H Schottky Barrier Schottky rectifier is a discrete semiconductor device designed for efficient power conversion and protection in electronic circuits. It features a 150 V peak reverse repetitive voltage rating and supports a maximum continuous forward current of 15 A, making it suitable for demanding industrial, automotive, and electronic power applications.
Employing trench MOS Schottky technology, this device offers a low forward voltage drop (typically 0.62 V) which helps reduce power loss and improve overall efficiency in DC/DC converters, freewheeling diode circuits, and polarity protection arrangements.
The device comes in a compact TO-252 (DPAK) surface mount package with a typical height of 1.3 mm, facilitating modern low-profile PCB designs and efficient thermal management.
It withstands wide temperature extremes ranging from -65°C up to 150°C, providing robust operation across various environmental conditions, including automotive-grade reliability following AEC-Q101 standards.
Low forward voltage drop to minimize energy loss. High efficiency for DC/DC conversion and power control. Surface mount TO-252 package ideal for automated PCB assembly. Wide operating temperature range from -65°C to 150°C.
High surge current capability up to 200 A. RoHS compliant and environmentally friendly design. AEC-Q101 automotive qualification ensuring durability. Suited for industrial, automotive, power management, and electronics manufacturing.
This Vishay Schottky diode supports industrial and automotive power electronics requiring high current capability with excellent efficiency and reliability. It is widely used in power supply design, DC-DC converters, automotive electronics, and other commercial electrical systems.
Explore a broad range of Vishay electronic components and semiconductors in EnvMart’s catalog for your advanced circuit and power design needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 15 A.
This Schottky rectifier has a peak reverse repetitive voltage rating of 150 V.
The typical forward voltage drop for this diode is 0.62 V.
It operates over a temperature range from -65°C to 150°C.
This model comes in a TO-252 surface mount package.
The peak non-repetitive forward surge current rating is 200 A.
Yes, it is RoHS compliant and meets AEC-Q101 automotive standards.
It is suitable for DC/DC converters, freewheeling diodes, and polarity protection applications.
The country of origin for this Schottky rectifier is India.
This diode belongs to the eSMP series.
The diode configuration of this model is single.
