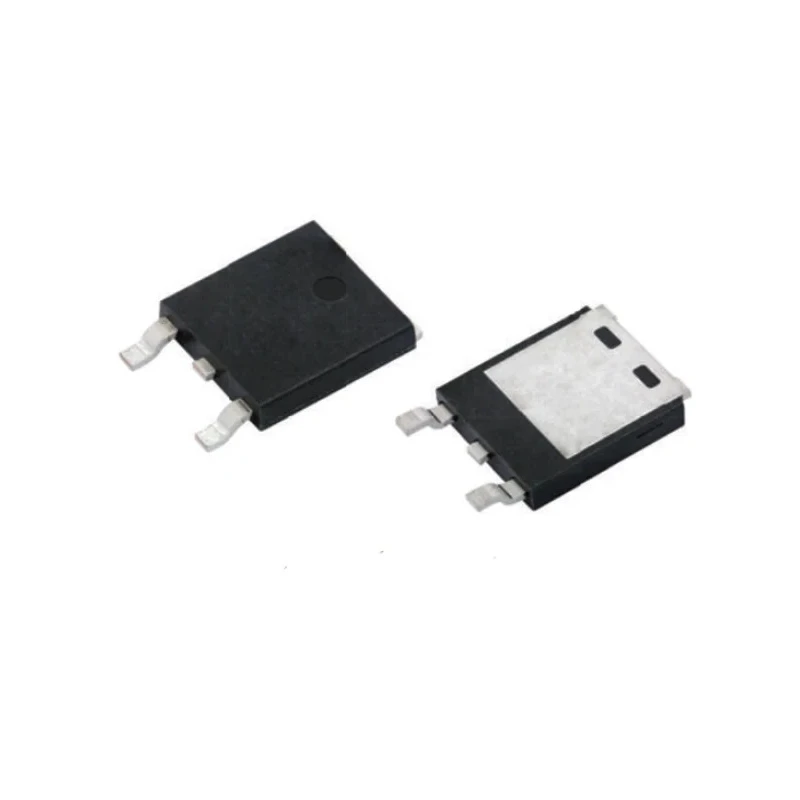

Vishay 100 V 10 A Schottky Barrier Rectifier Surface-Mount TO-252 DPAK V10PW10HM3/I
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | V10PW10HM3/I |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 180A |
| Maximum Forward Voltage Vf | 0.58V |
Key Features
- Utilizes trench MOS barrier Schottky technology for high efficiency.
- Low forward voltage drop of 0.58 V reduces power loss.
- Package type is TO-252 (DPAK) with very low profile of 1.3 mm height.
- Suitable for automated placement in electronics manufacturing.
- Rated for peak non-repetitive forward surge current of 180 A.
- Operates reliably over temperature range from -65°C to 150°C.
- Meets RoHS compliance and automotive grade versions available.
- Designed for use in low voltage high-frequency DC/DC converters, freewheeling diodes, and polarity protection.
Product Description
Vishay V10PW10HM3/I is a high current density Schottky Barrier Rectifier designed for surface-mount applications in semiconductor electronics. Its robust trench MOS barrier Schottky (TMBS) technology offers very low forward voltage drop of 0.58 V, enabling efficient and low power loss operation in low voltage high frequency circuits.
This rectifier is housed in a compact TO-252 (DPAK) package with a typical height of 1.3 mm, optimized for automated pick-and-place assembly processes. It is suitable for a wide variety of industrial, laboratory, and commercial electronics applications, including DC/DC converters, freewheeling diodes, and polarity protection circuits.
The device supports a maximum continuous forward current of 10 A and can withstand peak reverse repetitive voltages up to 100 V, with a peak non-repetitive surge current rating of 180 A, making it well suited for rugged operating environments.
Operational temperature ranges from -65°C to 150°C ensure reliability under demanding thermal conditions. While it complies with RoHS directives, it is not rated for automotive standards but automotive qualified versions with the AEC-Q101 standard are available based on ordering code P/NHM3.
Trench MOS Schottky technology for superior efficiency and low power dissipation. Surface-mount TO-252 (DPAK) package for automation compatibility. Maximum continuous forward current of 10 A at 100 V peak reverse voltage.
Wide operational temperature range from -65°C to 150°C. Designed for industrial and commercial semiconductor applications. Meets RoHS compliance for environmental considerations. Peak surge current rating of 180 A for transient tolerance.
Single diode configuration with eSMP series alignment. Compact low-profile package aiding space-saving PCB designs. Automotive qualified options available for specialized orders.
This Vishay Schottky Barrier Rectifier is ideal for engineers and designers seeking efficient and reliable diode components for electronic power management, switching regulation, and protective circuitry. For additional technical documentation, 3D models, and schematics, refer to Vishay’s official resources or authorized distributors.
Explore more semiconductor components and Schottky diodes compatible with your industrial or laboratory application needs on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 10 A.
This rectifier can withstand a peak reverse repetitive voltage of up to 100 V.
The forward voltage drop of this Schottky rectifier is 0.58 V.
It is housed in a TO-252 (DPAK) package, which is suitable for surface-mount applications.
The operational temperature range for this model is from -65°C to 150°C.
The peak non-repetitive forward surge current rating is 180 A.
Yes, this model meets RoHS compliance for environmental considerations.
It uses a single diode configuration.
It is designed for use in low voltage high-frequency DC/DC converters, freewheeling diodes, and polarity protection circuits.
It utilizes trench MOS barrier Schottky technology for high efficiency and low power dissipation.
The TO-252 package has a low profile height of 1.3 mm, optimized for automated placement.
Yes, automotive qualified versions based on the AEC-Q101 standard are available upon request.
