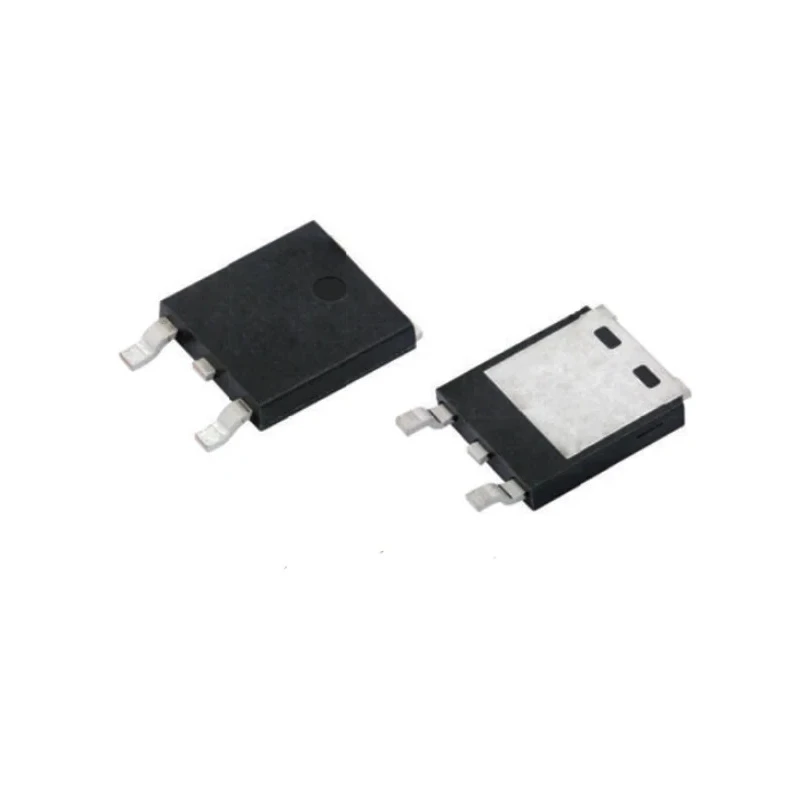

Vishay High Current Density Surface-Mount Schottky Barrier Rectifier 100 V 10 A TO-252 Package V10PW10HM3/I
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | V10PW10HM3/I |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 180A |
| Maximum Forward Voltage Vf | 0.58V |
Key Features
- Features a low forward voltage drop of 0.58 V for higher efficiency.
- Packaged in TO-252 surface-mount type suitable for automated placement.
- Supports maximum continuous forward current of 10 A and surge current up to 180 A.
- Operates reliably in temperature range from -65°C to 150°C.
- Trench MOS Schottky technology ensures low power loss and high efficiency.
- Meets RoHS compliance and achieves MSL level 1 per J-STD-020 standards.
- Ideal for use as freewheeling diodes and polarity protection in power electronics.
- Typical height profile is 1.3 mm for compact PCB designs.
Product Description
Vishay V10PW10HM3/I is a high current density Schottky Barrier Rectifier designed for industrial and electronic applications requiring efficient low voltage, high frequency DC/DC conversion. It features a surface-mount TO-252 package optimized for automated PCB assembly, with a very low profile height of 1.3 mm enabling compact designs.
This rectifier exhibits a maximum continuous forward current of 10 A and a peak reverse repetitive voltage rating of 100 V, making it suitable for demanding power supply, freewheeling diode, and polarity protection roles. The device operates efficiently with a low forward voltage drop of 0.58 V which reduces power dissipation and thermal stress.
With a broad operating temperature range from -65°C up to 150°C and surge current capability of 180 A, it fits industrial, automotive, and commercial electronics where robustness is critical. The device complies with RoHS standards and meets Moisture Sensitivity Level 1 as per J-STD-020, ensuring reliability in standard manufacturing processes.
Utilizing advanced Trench MOS Schottky technology, this rectifier lowers forward voltage and switching losses, which enhances overall efficiency and thermal performance within power management circuits.
The Vishay V10PW10HM3/I offers high efficiency operation, compact form factor, and robust electrical characteristics necessary for modern semiconductor applications in automotive, industrial machinery, and power electronics manufacturing.
Features a low forward voltage drop of 0.58 V for higher efficiency. Packaged in TO-252 surface-mount type suitable for automated placement. Supports maximum continuous forward current of 10 A and surge current up to 180 A.
Operates reliably in temperature range from -65°C to 150°C. Trench MOS Schottky technology ensures low power loss and high efficiency. Meets RoHS compliance and achieves MSL level 1 per J-STD-020 standards. Ideal for use as freewheeling diodes and polarity protection in power electronics.
Typical height profile is 1.3 mm for compact PCB designs. AEC-Q101 qualified automotive grade ordering codes available. Choose Vishay products from EnvMart's comprehensive catalog to ensure quality, performance, and industrial compliance in your electronic components needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this rectifier is 10 A.
The peak reverse repetitive voltage rating is 100 V.
The forward voltage drop is 0.58 V, which contributes to higher efficiency.
It operates reliably within a temperature range of -65°C to 150°C.
This rectifier is packaged in a TO-252 surface-mount type, suitable for automated placement.
The surge current capability is up to 180 A.
Yes, it meets RoHS compliance standards.
It utilizes Trench MOS Schottky technology, which ensures low power loss and high efficiency.
The typical height profile is 1.3 mm, allowing for compact PCB designs.
It features a single diode configuration.
It achieves Moisture Sensitivity Level 1 as per J-STD-020 standards.
It is ideal for use as freewheeling diodes and polarity protection in power electronics.
