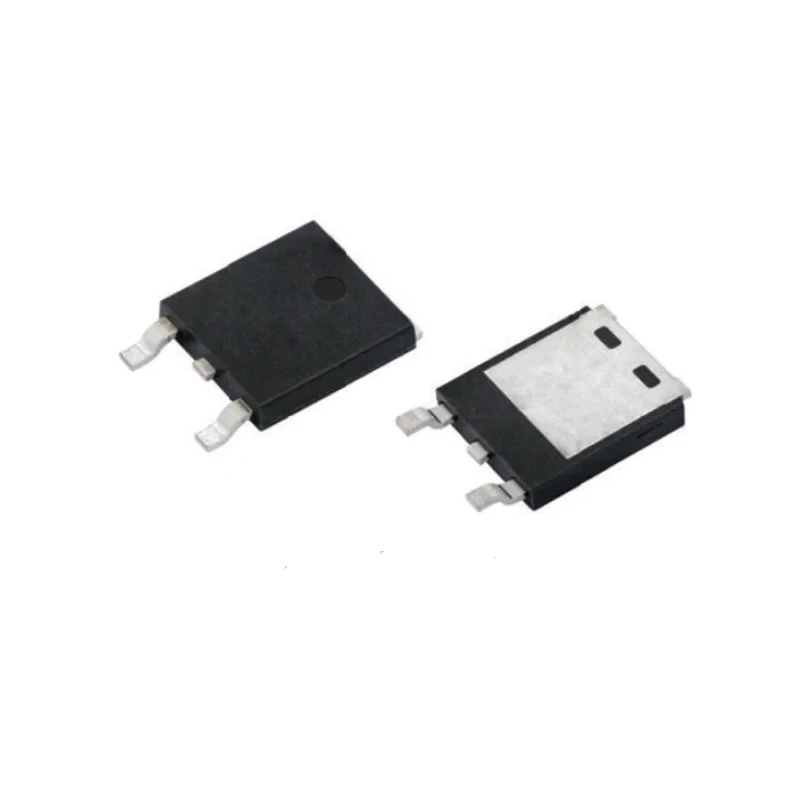

Vishay 100 V 10 A Schottky Barrier Schottky Diode Surface Mount TO-252 Package V10PW10HM3/I
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | V10PW10HM3/I |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 180A |
| Maximum Forward Voltage Vf | 0.58V |
Key Features
- High current density surface-mount TMBS rectifier technology ensures efficient performance.
- Low forward voltage drop of 0.58 V reduces power loss during operation.
- Operating temperature range from -65°C to 150°C supports harsh environments.
- Designed for use in low voltage DC/DC converters, freewheeling diodes, and polarity protection.
- MSL level 1 compliant with J-STD-020 standard and AEC-Q101 qualified versions available.
- Trench MOS Schottky technology enables high efficiency and low profile with 1.3 mm typical height.
- Ideal for automated placement in manufacturing processes.
Product Description
Vishay V10PW10HM3/I is a high-performance Schottky Barrier Schottky diode in a surface mount TO-252 package, designed for industrial electronic applications requiring efficient low voltage and high current rectification.
This diode supports a maximum continuous forward current of 10 A and a peak reverse repetitive voltage of 100 V, making it suitable for DC/DC converters, freewheeling diode circuits, and polarity protection tasks where low forward voltage and power loss are critical.
Its Trench MOS barrier Schottky (TMBS) technology offers a low 0.58 V forward voltage drop and minimal power dissipation, thereby enhancing overall device efficiency. The device is designed with a very low profile, typically 1.3 mm in height, aiding compact assembly and automated surface mounting.
Operation is reliable across a wide temperature range, from -65°C minimum to 150°C maximum, enabling use in demanding industrial and commercial environments. Compliance with RoHS standards ensures environmental safety, and the availability of AEC-Q101 qualified automotive versions underscores its quality for automotive electronics.
High current density TMBS technology for robust electronic performance. Low forward voltage minimizes power losses in circuit designs. Wide operating temperature range suitable for industrial applications. Compliant with international environmental and automotive standards.
Compact TO-252 package ideal for automated PCB assembly. Suitable for a variety of power rectifying applications including DC/DC converters. Meets moisture sensitivity level 1 for handling and storage.
This Vishay Schottky diode is widely applicable in industrial, commercial, automotive, and manufacturing sectors requiring reliable, efficient power rectification in compact designs.
Explore more electronic semiconductors and Schottky diodes at EnvMart for your industrial and technical needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 10 A.
The peak reverse repetitive voltage rating is 100 V.
The maximum forward voltage drop is 0.58 V, which helps reduce power loss during operation.
This diode operates within a temperature range of -65°C to 150°C.
It comes in a TO-252 package, which is suitable for surface mounting.
Yes, it is compliant with RoHS standards, ensuring environmental safety.
The typical height of this model is 1.3 mm, aiding in compact assembly.
Yes, there are AEC-Q101 qualified versions available, making it suitable for automotive electronics.
This diode is a Schottky rectifier, designed for efficient low voltage and high current rectification.
The peak non-repetitive forward surge current rating is 180 A.
It is suitable for low voltage DC/DC converters, freewheeling diodes, and polarity protection tasks.
The diode configuration is single, designed for various power rectifying applications.
