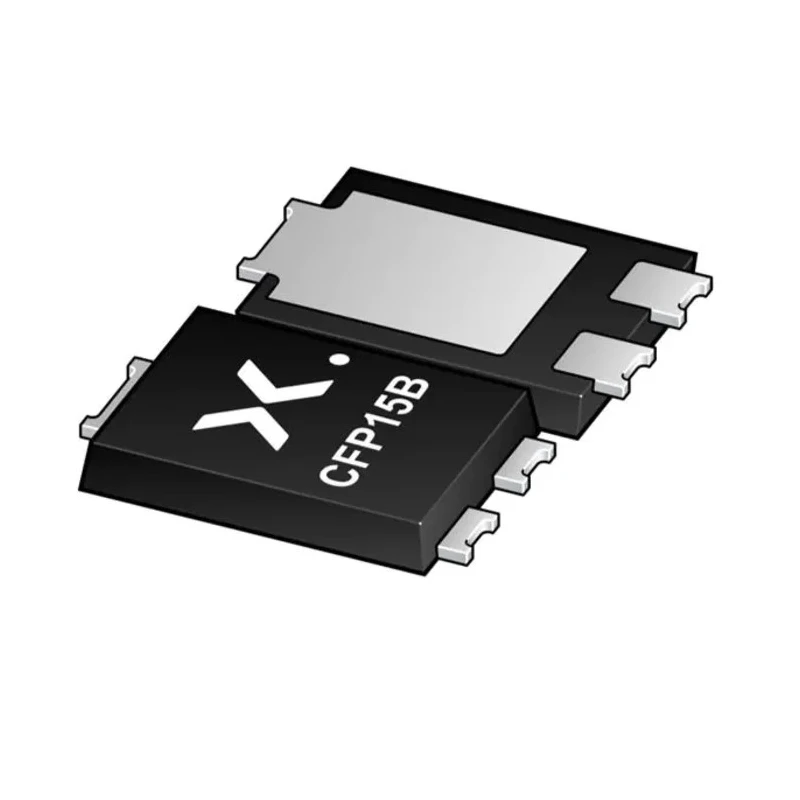

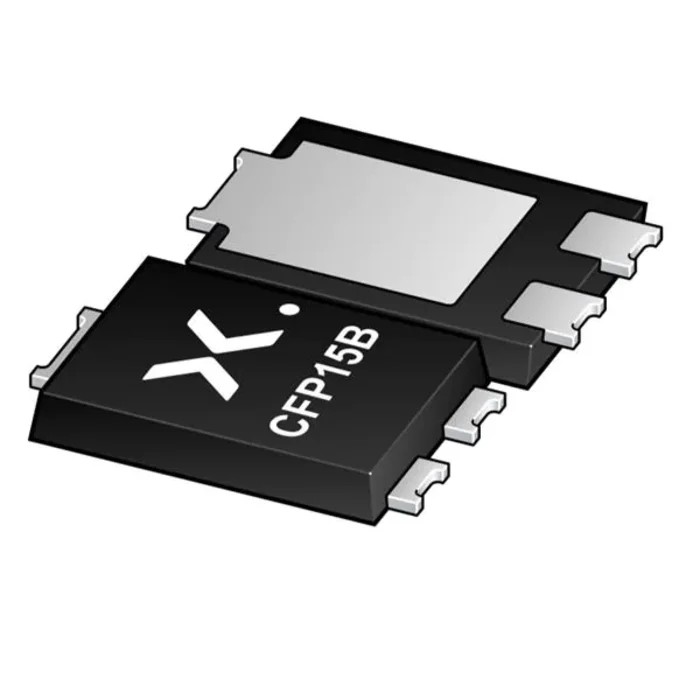

Nexperia 100 V 5 A Rectifier & Schottky Diode Schottky Barrier 3-Pin CFP15B PMEG100T050ELPE-QZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PMEG100T050ELPE-QZ |
| Mount Type | Surface |
| Series | PMEG100T50ELPE |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky Barrier |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 810mV |
| Peak Reverse Recovery Time trr | 12ns |
Key Features
- Maximum continuous forward current of 5 amperes ensures robust conduction.
- Peak reverse repetitive voltage rating of 100 volts enhances reverse voltage tolerance.
- Schottky barrier rectifier design reduces forward voltage drop and switching losses.
- Encapsulated in compact CFP15B plastic package suitable for surface mounting.
- Meets automotive standard AEC-Q101 for high reliability in automotive applications.
- Operates efficiently within temperature range of -55°C to 175°C for diverse environments.
- Peak non-repetitive forward surge current tolerance of 100 amperes supports transient loads.
- Ultra-fast peak reverse recovery time of 12 nanoseconds contributes to high switching speed.
Product Description
Nexperia PMEG100T050ELPE-QZ is a high-performance 100 V 5 A Rectifier & Schottky Diode manufactured with a Schottky barrier design, encapsulated in a surface mount CFP15B plastic package. This device offers low forward voltage and low leakage current characteristics, making it suitable for efficient power management in electronic circuits.
The device's maximum continuous forward current rating is 5 amperes, combined with a peak reverse repetitive voltage of 100 volts, providing reliable performance in demanding environments. It supports a wide operating temperature from -55°C to 175°C, validating its use in industrial and automotive applications.
Featuring a low peak reverse current of 3 mA and an ultra-fast peak reverse recovery time of 12 nanoseconds, the PMEG100T050ELPE-QZ minimizes switching losses and improves overall circuit efficiency. Its plastic CFP15B package integrates clip-bonding technology, enhancing its high power capability in a compact form factor.
This Schottky diode is qualified according to the AEC-Q101 automotive standard, ensuring high reliability for automotive LED lighting, switch mode power supplies, DC-DC converters, freewheeling applications, and reverse polarity protection circuit designs. Its package ensures ease of mounting and optimal thermal characteristics for soldering processes.
Maximum continuous forward current of 5 A ensures robust current handling. Peak repetitive reverse voltage rated at 100 V provides protection against voltage spikes. Schottky barrier rectifier reduces forward voltage drop, improving efficiency.
Surface mount CFP15B package enables compact PCB layouts and easy assembly. AEC-Q101 qualification guarantees automotive-grade reliability and durability. Operating temperature range from -55°C to 175°C allows use in harsh environments.
Peak forward surge current of 100 A supports transient surge handling capabilities. Fast peak reverse recovery time of 12 ns optimizes high-speed switching performance. Low leakage current enhances circuit stability and reduces power loss.
Suitable for automotive LED lighting, DC-to-DC converters, power supplies, and reverse polarity protection.
Choose the Nexperia PMEG100T050ELPE-QZ for reliable, efficient, and high-performance Schottky diode solutions across industrial, automotive, electronic design, and manufacturing applications. Explore more semiconductor components at EnvMart for your project and production needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the PMEG100T050ELPE-QZ is 5 amperes.
This model has a peak reverse repetitive voltage rating of 100 volts.
It operates efficiently within a temperature range of -55°C to 175°C.
The peak non-repetitive forward surge current tolerance is 100 amperes.
The peak reverse recovery time is 12 nanoseconds, contributing to its high switching speed.
It is encapsulated in a compact CFP15B plastic package suitable for surface mounting.
The PMEG100T050ELPE-QZ meets the AEC-Q101 automotive standard for high reliability.
The maximum forward voltage is 810 millivolts.
This model features a single diode configuration.
The peak reverse current is rated at 3 milliamperes.
It is suitable for automotive LED lighting, DC-DC converters, power supplies, and reverse polarity protection.
This diode has a pin count of 3.
