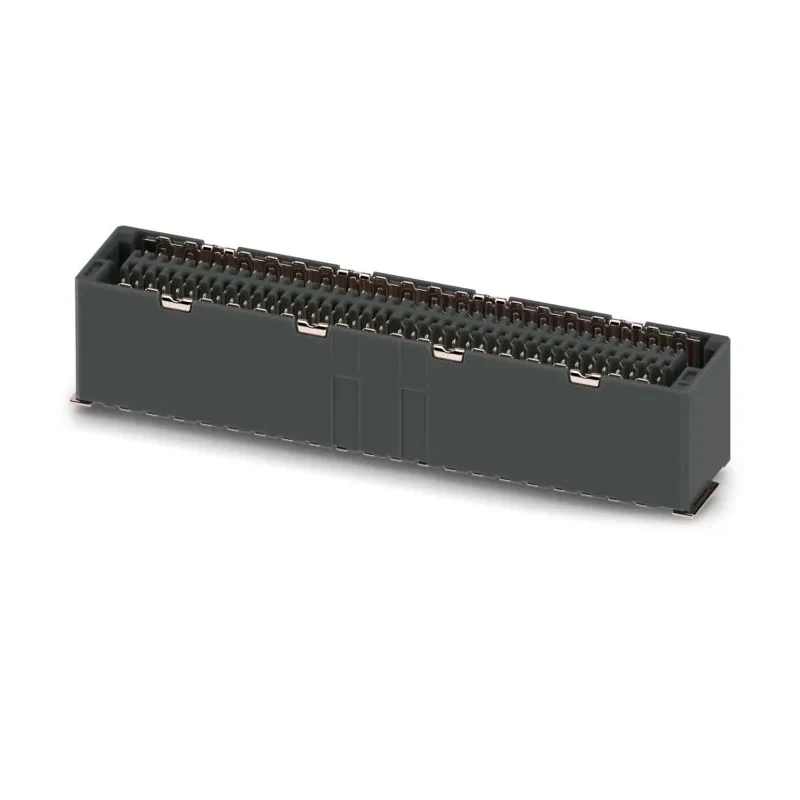

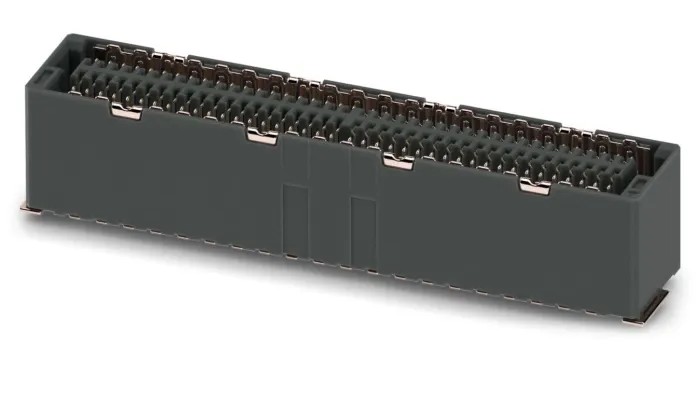

Phoenix Contact FP 0.8/80-FV-SH Series Right Angle Surface PCB Socket 80-Contact 2 Row 0.8 mm Pitch Solder 1043685

Phoenix Contact 1043685 Right Angle Surface PCB Socket is a high-quality electronic component designed for reliable board-to-board connections in industrial and commercial electronics. This socket features 80 contacts arranged over 2 rows with a fine 0.8 mm pitch and a row pitch of 1.42 mm, making it ideal for compact PCB layouts requiring high-density connectors.

The female connector uses a liquid crystal polymer housing material that ensures strength and thermal stability. Contact material is copper, plated with gold to provide excellent electrical conductivity and resistance to corrosion, which is crucial for maintaining connection integrity over time.

Rated for a nominal current of 1.7 amperes and a test voltage of 500 volts AC, this socket supports demanding electrical requirements while maintaining safety and performance. The right angle mounting orientation and a stacking height of 9 mm promote efficient PCB assembly and space-saving designs.

Its operational temperature range from -55°C to 125°C makes it suitable for harsh industrial environments including manufacturing equipment, instrumentation, automation systems, and other electronic devices exposed to temperature variations. The black color of the connector housing supports easy identification and aesthetic integration in PCB assemblies.

The socket provides reliable board-to-board connection with a right angle orientation. It is designed with a liquid crystal polymer housing material offering durability. Contacts are made from copper and plated with gold for excellent conductivity and corrosion resistance.

The socket supports a nominal current of 1.7 A and voltage rating of 500 V. It offers a stacking height of 9 mm and row pitch of 1.42 mm for compact PCB integration. Operating temperature range is from -55°C to 125°C, suitable for industrial applications.

This shielded SMD female connector is black in color and ensures quality signal integrity. This component is manufactured in Germany by Phoenix Contact, a leader in electronic connector technology. It complies with industry standards for quality and reliability.
