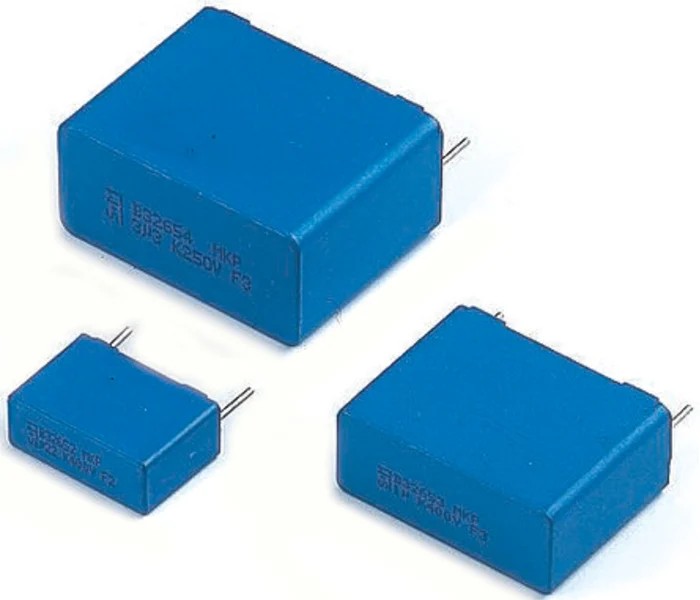

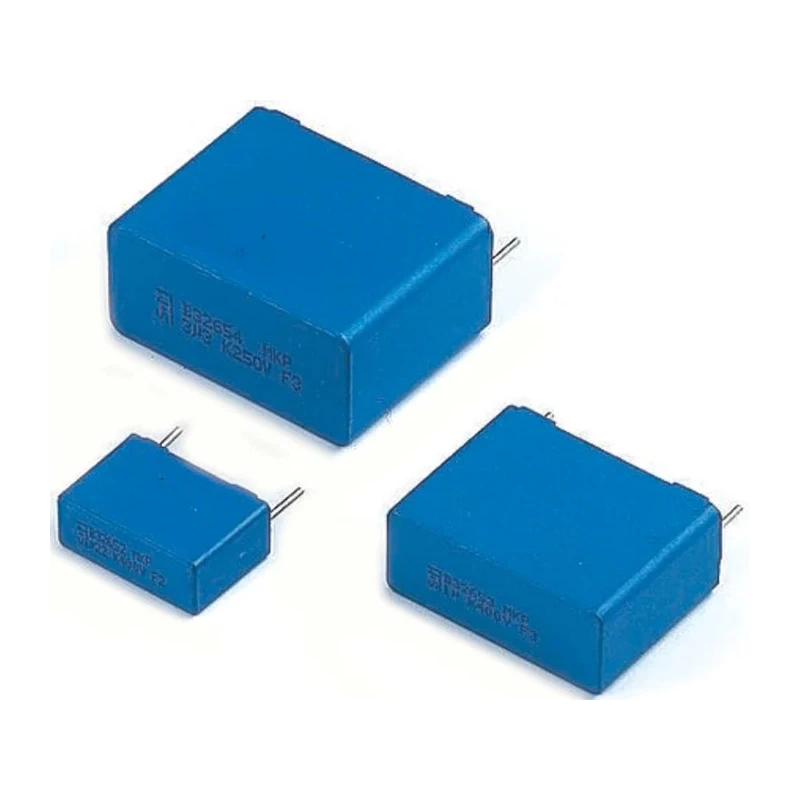

TDK Film Capacitor 470nF 500V AC 1.25kV DC Tab Mount B32656S7474J564
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 32.5mm |
| Length | 42mm |
| Model | B32656S7474J564 |
| Width | 18mm |
| Mount Type | Tab |
| Series | B32656S |
| Maximum Operating Temperature | 100°C |
| Capacitance | 470nF |
| Standards/Approvals | UL, RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 500V ac |
| Rated DC Voltage | 1.25kV dc |
| Lead Pitch | 12mm |
Key Features
- Rated AC voltage of 500 volts and DC voltage up to 1.25 kilovolts.
- Capacitance value of 470 nanofarads suitable for various electronic applications.
- Tab mount type with 12mm lead pitch and 2 pins.
- High pulse strength and contact reliability ensured by wound capacitor technology.
- Plastic case with epoxy resin sealing complying with UL 94 V-0 standard.
- Maximum operating temperature of 100°C for durable performance.
- Compact dimensions of 42mm length, 18mm width, and 32.5mm height.
- Complies with UL and RoHS safety and environmental standards.
Product Description
The TDK B32656S7474J564 is a high-quality film capacitor designed for industrial and electronic applications requiring reliable capacitance and voltage tolerance. It features a capacitance of 470 nanofarads, rated for 500 volts AC and 1.25 kilovolts DC, making it ideal for power electronics, filtering, and high-pulse strength circuits.
This film capacitor uses a tab mounting type with a 12mm lead pitch and has two pins for secure installation. The component boasts a plastic case sealed with epoxy resin that meets the UL 94 V-0 flammability standard, ensuring safe operation under harsh conditions. It operates reliably at temperatures up to 100°C.
The winding capacitor technology with an internal series connection provides very low inductance and high contact reliability, contributing to stable performance in demanding industrial and laboratory electronics environments.
With compact dimensions of 42mm length, 18mm width, and 32.5mm height, the B32656S series capacitor fits efficiently in space-constrained assemblies and electronic panels. Standard approvals include UL and RoHS compliance, confirming the capacitor meets stringent safety and environmental regulations.
Rated AC voltage of 500 volts and DC voltage up to 1.25 kilovolts. Capacitance of 470 nanofarads suitable for various electronic circuit designs. Plastic case and epoxy resin sealing for durability and safety. Wound capacitor technology with internal series connection for performance.
Tab mount type with 12mm lead pitch for easy PCB installation. UL and RoHS compliant for quality assurance and eco-friendliness.
This film capacitor is widely used in electronics manufacturing, industrial power circuits, and HVAC systems where reliable capacitance and voltage ratings are critical. It represents a trusted choice for engineers and procurement specialists sourcing quality capacitors for demanding applications.
Explore EnvMart's wide selection of Film Capacitors and passive components for industrial, laboratory, and construction electronics projects. Discover products that meet your technical requirements and compliance standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this film capacitor is 470 nanofarads (nF).
It is rated for 500 volts AC and up to 1.25 kilovolts DC.
The maximum operating temperature is 100°C.

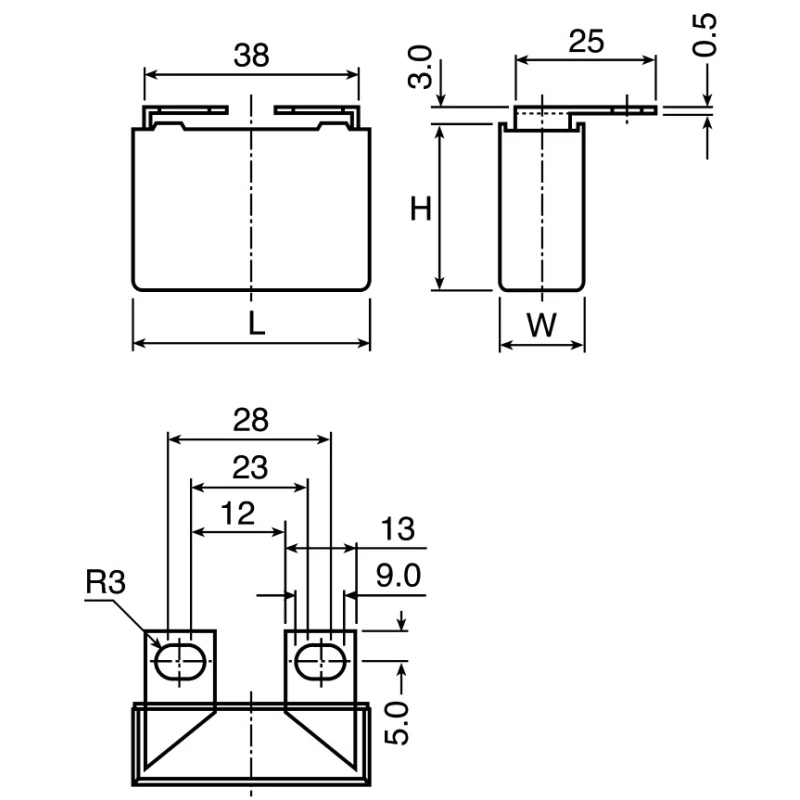

This model has dimensions of 42mm in length, 18mm in width, and 32.5mm in height.
It uses a tab mount type with a 12mm lead pitch and has two pins for installation.
It complies with UL and RoHS safety and environmental standards.
It employs wound capacitor technology with an internal series connection, providing low inductance and high contact reliability.
This capacitor is commonly used in electronics manufacturing, industrial power circuits, and HVAC systems.
The country of origin for this film capacitor is India.
This film capacitor has a pin count of 2.
It features a plastic case sealed with epoxy resin, complying with UL 94 V-0 standard.
The 12mm lead pitch facilitates secure installation on printed circuit boards (PCBs).
