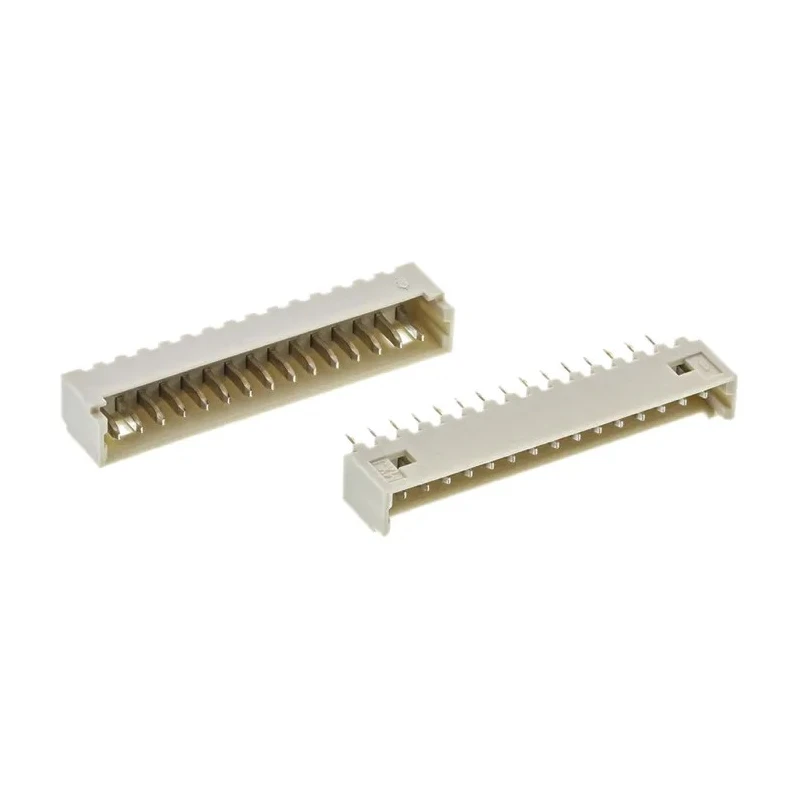

Molex PicoBlade Series Straight Through Hole PCB Header 15 Contacts 1.25 mm Pitch 1 Row Shrouded 53047-1510

Molex 53047-1510 PicoBlade Series Straight Through Hole PCB Header is designed for high-density wire-to-board interconnection applications. This component features 15 male contacts arranged in a single row with 1.25 mm pitch, allowing significant PCB space savings while maintaining 1A current capabilities comparable to larger pitch systems.

The housing is constructed from robust nylon material and includes locking windows that engage with crimp housings for a friction-based locking mechanism, which enhances connection reliability and prevents accidental unmating due to vibration or mishandling. The contacts are made from phosphor bronze and plated with tin to ensure excellent electrical conductivity and corrosion resistance.

With a tail pin length of 2.3 mm and solder termination type, this through hole mounting connector provides secure mechanical and electrical connections. Its wide operating temperature range from -40°C to 85°C makes it suitable for automotive, industrial process controls, medical patient monitors, and various electronic applications.

The PicoBlade Series' compact footprint and friction lock mechanism make it ideal for applications requiring high density and secure connector mating. The shrouded design protects the contacts while ensuring precise alignment and reliable performance on PCB assemblies.

Compact 1.25 mm pitch design minimizes PCB space utilization. 1A current handling capability for efficient power delivery. Durable nylon housing with secure friction locking. Phosphor bronze contacts with tin plating for conductivity and corrosion resistance.

Solder termination with 2.3 mm tail pin length for secure mounting. Wide temperature range: -40°C to 85°C for versatile use. Explore more components in the PCB Header category at EnvMart for your electronic design needs.
