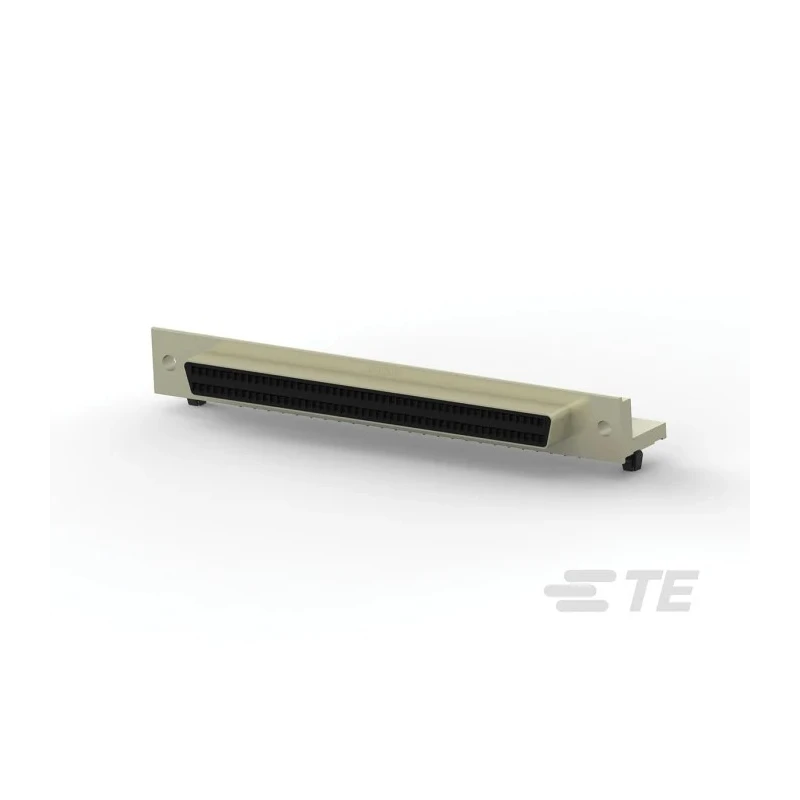

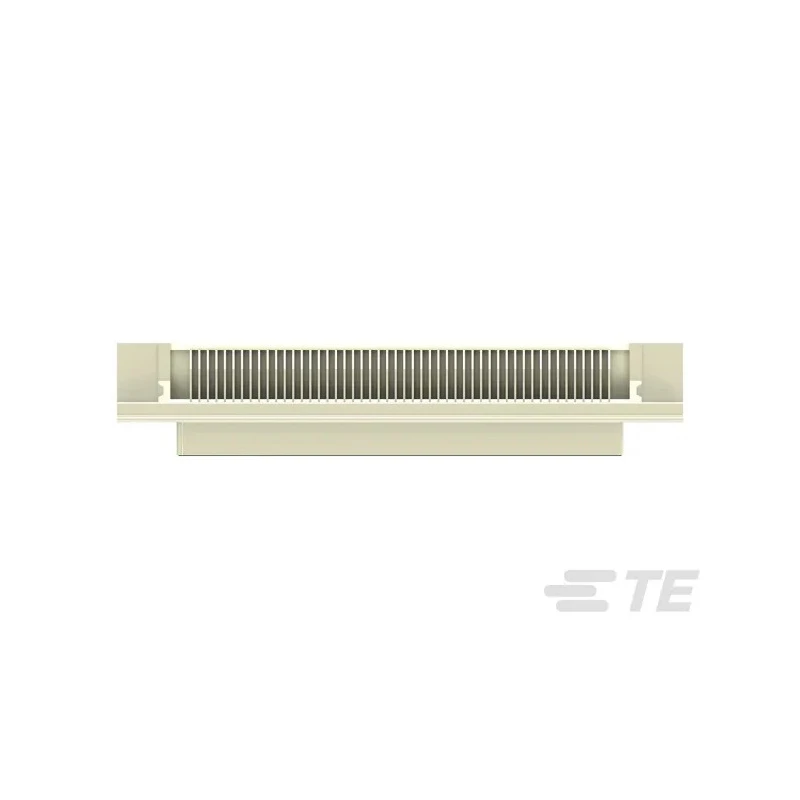

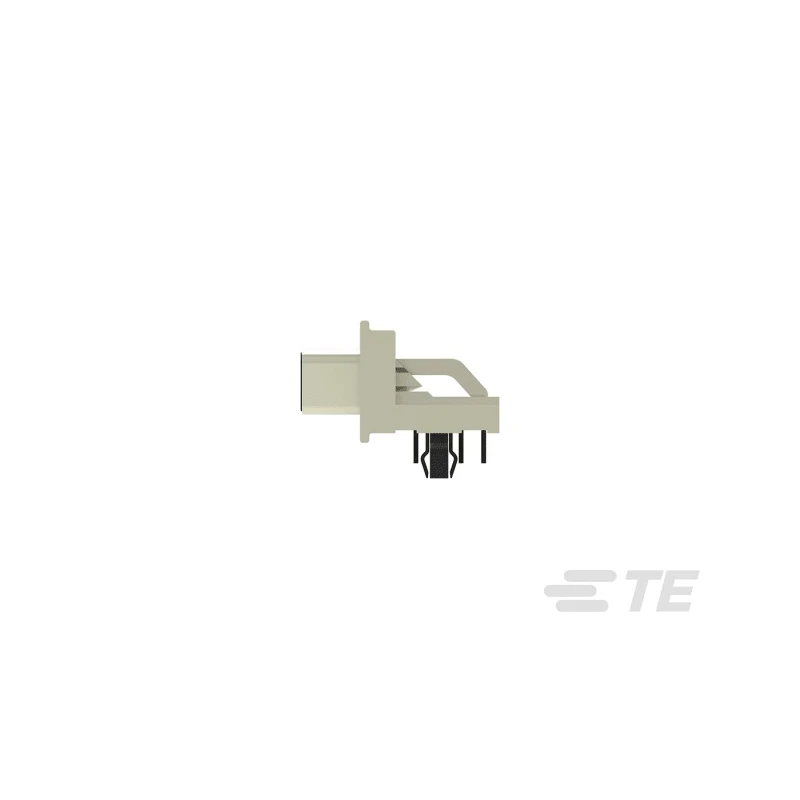

TE Connectivity AMPLIMITE 0.50 100 Way Right Angle 1.27 mm Pitch Through Hole D-Sub Connector Female 5787170-9
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE 0.50 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 1.27mm |
| Contact Plating | Tin |
| Number of Contacts | 100 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
Key Features
- The connector features 100 contacts with a 1.27 mm pitch for dense wiring.
- It supports a maximum current rating of 1 ampere per contact.
- The housing is made of durable thermoplastic material ensuring robust mechanical performance.
- Designed for right angle through-hole PCB mounting with solder termination.
- Operating voltage is rated at 500 volts, suitable for signal applications.
- It has a full metal shell for electromagnetic shielding and mechanical protection.
- Suitable for use within an operating temperature range from -55°C to 105°C.
- The contact plating includes tin over phosphor bronze contacts for effective conductivity.
Product Description
TE Connectivity 5787170-9 AMPLIMITE 0.50 100 Way Right Angle 1.27 mm Pitch Through Hole D-Sub Connector Female is a high-performance electronic connector designed for cable-to-board applications.
This connector features a robust thermoplastic housing with a full metal shell that offers reliable EMI/RFI shielding and mechanical protection in demanding industrial environments.
With 100 contacts arranged in two rows with a pitch of 1.27 mm, it supports dense wiring configurations, suitable for complex signal transmission requirements. The contacts are made from phosphor bronze with tin plating and a gold flash over palladium nickel mating area to ensure excellent electrical conductivity and durability.
The connector is designed for right angle PCB mounting using through-hole solder termination with post size and post plating optimized for reliable mechanical bonding. It operates reliably within a wide temperature range of -55°C to 105°C, making it suitable for harsh industrial, manufacturing, and electronic applications.
The connector supports a maximum current rating of 1 ampere per contact. Voltage rating is 500 volts for signal circuits. The connector system is AMPLIMITE 0.50 series, known for precision and durability. Termination type is solder with PCB mount retention using boardlock style for secure fitting.
The design includes insulation displacement and gold-plated mating contacts for enhanced reliability. This connector is ideal for use in electronic components assembly, communication devices, computing equipment, and other industrial automation systems.
Choose TE Connectivity connectors for superior quality and compliance with UL 94V-0 flammability standards. Explore a wide range of D-Sub Connectors and other electronic components at EnvMart for all your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a maximum current rating of 1 ampere per contact.
It has a voltage rating of 500 volts, suitable for signal applications.
This model is designed for right angle through-hole PCB mounting with solder termination.
The contacts are arranged with a pitch of 1.27 mm, allowing for dense wiring configurations.
The housing is made of thermoplastic material, while the contacts are made from phosphor bronze with tin plating.
It operates reliably within a temperature range from -55°C to 105°C.
This connector features 100 contacts arranged in two rows.
The contact plating includes tin over phosphor bronze contacts, with a gold flash over palladium nickel for the mating area.
It is ideal for use in electronic components assembly, communication devices, computing equipment, and industrial automation systems.
Yes, it features a full metal shell that offers reliable EMI/RFI shielding and mechanical protection.
The termination type is solder, with PCB mount retention using boardlock style for secure fitting.
The country of origin for this connector is India.
