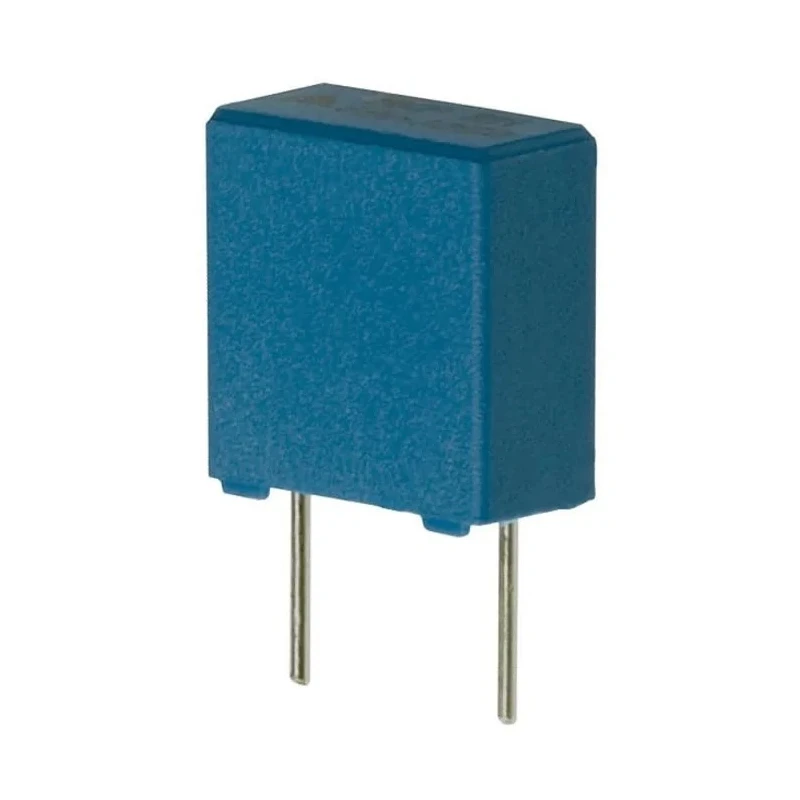

TDK Polypropylene Film Capacitor Through Hole 1 nF 1 kV AC 1 kV DC 7.5mm Lead Pitch B32620J0102K289

Free Delivery in India | Lowest Global Shipping Charges

TDK Polypropylene Film Capacitor Through Hole 1 nF 1 kV AC 1 kV DC 7.5mm Lead Pitch B32620J0102K289



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	Brazil
Brand	TDK
Height	10.5mm
Length	10mm
Model	B32620J0102K289
Width	5mm
Mount Type	Through Hole
Series	B32620
Maximum Operating Temperature	110°C
Capacitance	1nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	1kV ac
Rated DC Voltage	1kV dc
Lead Pitch	7.5mm
Lead Diameter	0.5mm

Key Features

The capacitor uses metallized polypropylene film as dielectric material.
It has a compact plastic case with epoxy sealing for stability and durability.
Lead pitch is 7.5 mm with lead diameter of 0.5 mm, suitable for through-hole PCB mounting.
The maximum operating temperature of the capacitor is 110°C.
It complies with RoHS and UL standards ensuring environmental and safety compliance.
The product is manufactured in Brazil, ensuring quality control and traceability.
This capacitor series is ideal for use in compact fluorescent lamps and switch mode power supplies (SMPS).
It features very high pulse strength and excellent self-healing properties for reliable performance.

Product Description

The TDK B32620J0102K289 is a high-quality polypropylene film capacitor designed for through-hole mounting applications. Featuring a capacitance value of 1 nF, it operates at a rated AC voltage of 1 kV and a DC voltage of 1 kV, making it suitable for high voltage electronic circuits.

This capacitor incorporates a metallized polypropylene dielectric film within a compact plastic casing sealed with epoxy, providing excellent electrical insulation, durability, and environmental protection.

The component has a lead pitch of 7.5 mm and lead diameter of 0.5 mm, which are standard for through-hole mounting, facilitating easy integration into printed circuit boards. It is rated for operation up to 110°C, enabling stable performance under elevated temperature conditions.

Compliant with RoHS and UL safety standards, this capacitor meets environmental safety regulations as well as product reliability requirements. Manufactured in Brazil, it reflects stringent quality assurance and manufacturing standards.

TDK's B32620 series polypropylene film capacitors are widely used in industrial and commercial electronics, including compact fluorescent lamps and switch mode power supplies (SMPS), where high pulse strength and self-healing properties are critical for long term reliability.

The capacitor offers very high pulse strength capacity for demanding electrical environments. Excellent self-healing properties ensure sustained performance throughout the product lifecycle. Its compact size reduces board space, supporting miniaturized electronics design.

Proven technology for stable capacitance over a broad temperature range. Environmentally compliant with RoHS directives. This product is ideal for applications in industrial, electronics manufacturing, electrical equipment, and power electronics sectors.
