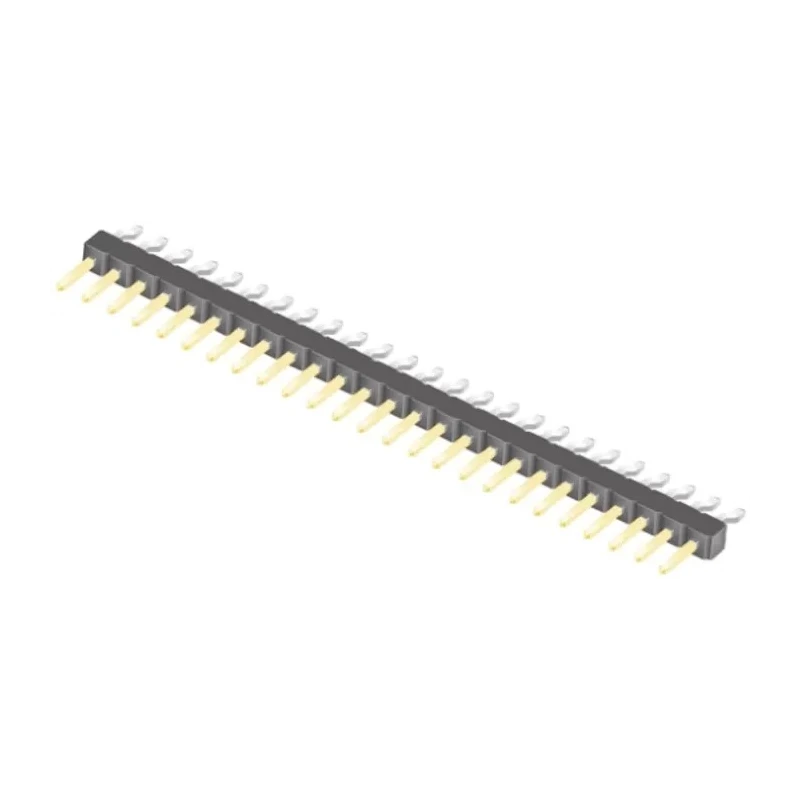

Samtec TSM Series Right Angle Surface Pin Header 25 Contacts 2.54 mm Pitch 1 Row Unshrouded TSM-125-01-L-SH
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 7A |
| Model | TSM-125-01-L-SH |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 5.84mm |
Key Features
- The pin header offers a current rating of 7A suitable for board-to-board and wire-to-board connections.
- It has a black liquid crystal polymer housing material ensuring durability and heat resistance.
- Contact plating is gold over phosphor bronze for reliable conductivity and corrosion resistance.
- The header is designed for surface mount technology with solder termination type and male contact gender.
- Operating temperature range is from -55°C to 125°C, supporting harsh industrial environments.
- The mating pin length measures 5.84 mm for secure engagement.
- This model is unshrouded with a right angle orientation and single row configuration.
- It complies with no specific approvals but meets standard use expectations for PCB connectors.
Product Description
Samtec TSM-125-01-L-SH is a right angle surface mount pin header designed for PCB board-to-board and wire-to-board electronic connections. Featuring 25 contacts with a 2.54 mm pitch and a single row layout, this header is unshrouded and constructed with a black liquid crystal polymer housing for enhanced durability and thermal stability.
The contacts are made from phosphor bronze with a 0.25 μm gold plating on the post and matte tin on the tail, providing excellent conductivity and corrosion resistance for reliable signal transmission in industrial and commercial electronic applications.
This pin header operates efficiently within a wide temperature range from -55°C to 125°C, making it suitable for demanding environments such as manufacturing equipment, automation systems, and instrumentation.
The product features a mating pin length of 5.84 mm, with a surface mount termination type and male contact gender, ensuring secure and precise connections on printed circuit boards. The rated voltage of 475V offers protection and safety compliance for various circuitry requirements.
Samtec's TSM series includes several configurations, including single and double rows, straight and right angle body orientations, with post heights varying between 5.84 mm and 8.13 mm. This particular model is the TSM-125-01-L-SH variant with right angle orientation and 5.84 mm post height.
The pin header offers a current rating of 7A suitable for board-to-board and wire-to-board connections. It has a durable liquid crystal polymer housing with gold-plated phosphor bronze contacts. The device is designed for surface mount technology with solder termination.
Operating temperature range is -55°C to 125°C, suited for industrial uses. Unshrouded single-row configuration with 25 contacts and 2.54 mm pitch. Mating pin length of 5.84 mm supports reliable mechanical connection. Rated voltage is 475V with male contact gender.
Ideal for use in electronics manufacturing, instrumentation, and automation industries. Explore a wide range of professional PCB connectors and headers at EnvMart to support your industrial and commercial electronics projects.
Explore more products in our PCB Headers category.
