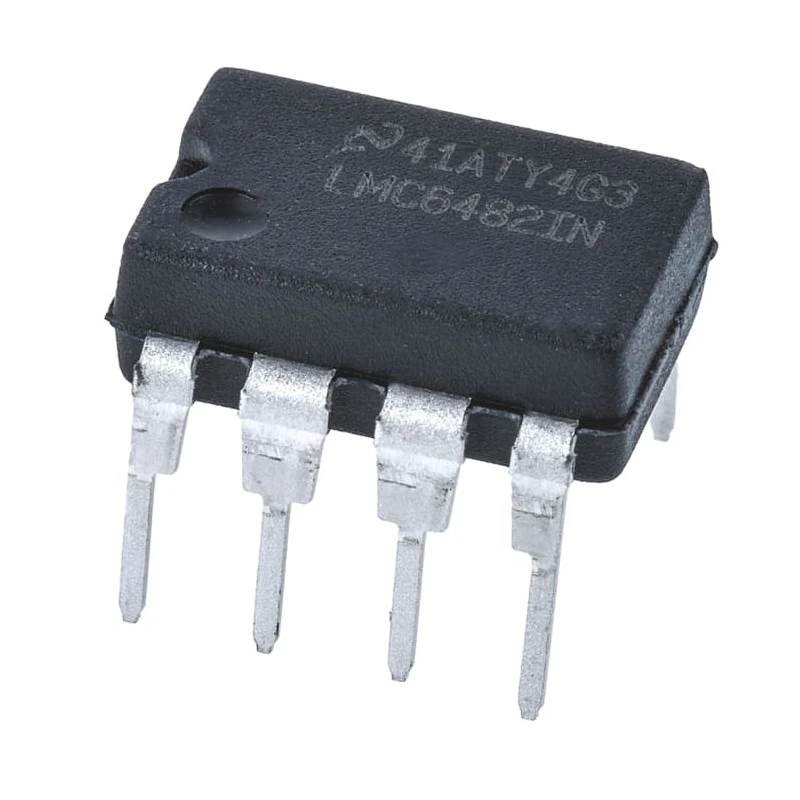

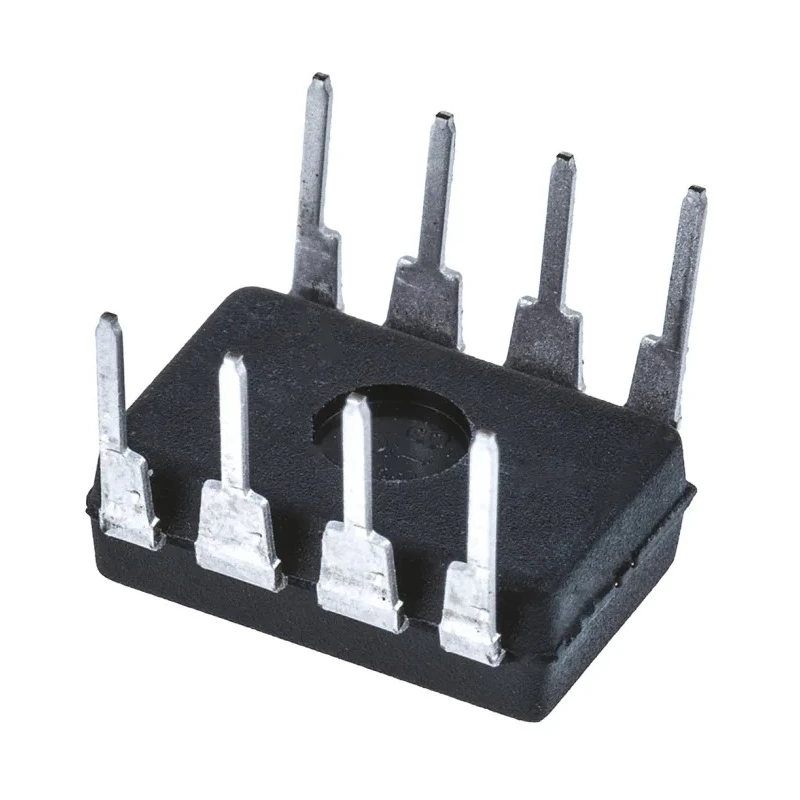

Texas Instruments Operational Amplifier Dual Channel 1.5 MHz Gain Bandwidth, 5 to 15.5 V, 8-Pin MDIP LMC6482IN/NOPB

Texas Instruments model LMC6482IN/NOPB is a dual-channel operational amplifier designed for precision amplification in electronic circuits. This CMOS amplifier provides a gain bandwidth product of 1.5 MHz and operates reliably within a voltage range of 5 V to 15.5 V. It is packaged in an 8-pin MDIP through-hole mount, making it suitable for easy PCB integration in industrial and laboratory electronic applications.

The device exhibits extremely low input bias current of 0.02 pA and input offset current of 0.01 pA, ensuring minimal signal distortion and precision in sensitive instrumentation. Its input offset voltage is rated at 3.7 mV, complementing high accuracy requirements.

Operating temperature ranges from -40°C to 85°C, providing robust performance in varying environmental conditions common to industrial, laboratory, and commercial electronics.

With a slew rate of 1.3 V/μs and an output current capacity of 12 mA, this amplifier supports rapid response and moderate load driving capability suitable for a range of amplification tasks including sensor signal conditioning and analog signal processing.

The compact physical dimensions of 9.81 mm length, 6.35 mm width, and 3.3 mm height enable efficient space utilization on printed circuit boards.

Manufactured under RoHS compliant standards, the product is reliable and environmentally friendly. The LMC6482 series operational amplifiers are commonly utilized in instrumentation, control systems, laboratory equipment, and embedded device applications requiring accurate, low-noise analog amplification.

This operational amplifier has a gain bandwidth product of 1.5 MHz, suitable for general applications. It supports a minimum supply voltage of 5 V and maximum of 15.5 V. The device contains 2 channels with a pin count of 8.

The package type is MDIP, providing ease of mounting through holes. Input bias current is ultra-low at 0.02 pA, optimizing precision circuit performance. The operating temperature range extends from -40°C to 85°C, enabling use in varied environments.

Input offset voltage is 3.7 mV with an input offset current of 0.01 pA for improved accuracy. Slew rate is 1.3 V/μs, facilitating fast signal response in designs. The physical size measures 9.81 mm length, 6.35 mm width, and 3.3 mm height.

Output current capacity is 12 mA, suitable for driving moderate loads. Explore the full range of industrial and laboratory components in our catalog to find the optimal Operational Amplifier and related products for your project needs.
