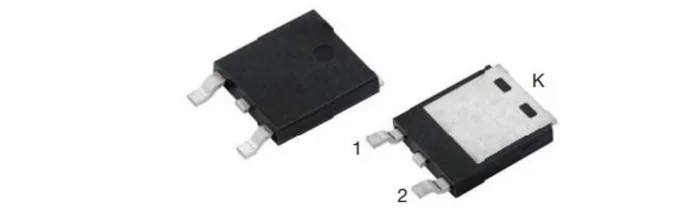

Vishay 100 V 40 A Surface Mount Schottky Rectifier Diode TO-252 3-Pin DPAK V40PWM10CHM3/I
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 13in |
| Brand | Vishay |
| Height | 1.3mm |
| Model | V40PWM10CHM3/I |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS, UL 94 V-0 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 40A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 21mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 240A |
| Maximum Forward Voltage Vf | 0.89V |
Key Features
- Utilizes advanced Trench MOS Schottky technology for high efficiency.
- Features very low forward voltage drop of 0.89 V reducing power loss.
- Rated for peak non-repetitive forward surge current of 240 A.
- Operates reliably between -40°C and 175°C temperatures.
- Complies with AEC-Q101 automotive standard and RoHS, UL 94 V-0 approvals.
- Package height is only 1.3 mm for low profile automated PCB assembly.
- Designed for surface mounting with 3-pin DPAK TO-252 form factor.
- Ideal for DC/DC converters, freewheeling diodes, and polarity protection.
Product Description
Vishay V40PWM10CHM3/I is a high current density, surface-mount Schottky rectifier diode designed with Trench MOS Schottky technology. It delivers a maximum continuous forward current of 40 A and withstands a peak reverse repetitive voltage of 100 V. Packaged in a low profile TO-252 3-pin DPAK with a height of just 1.3 mm, this device is suitable for space-constrained industrial applications.
The diode features an extremely low forward voltage drop of 0.89 V which ensures efficient operation with minimal power losses. It meets the AEC-Q101 automotive reliability standards and is RoHS and UL 94 V-0 compliant, making it suitable for automotive and industrial environments requiring high reliability.
It supports a broad operating temperature range from -40°C to 175°C and a peak non-repetitive forward surge current rating of 240 A, making it robust against transient conditions. Typical use cases include low voltage, high frequency DC/DC converters, freewheeling diodes to protect switching devices, and polarity protection circuits in power electronics.
Utilizes advanced Trench MOS Schottky technology for high efficiency. Features very low forward voltage drop of 0.89 V reducing power loss. Rated for peak non-repetitive forward surge current of 240 A. Operates reliably between -40°C and 175°C temperatures.
Complies with AEC-Q101 automotive standard and RoHS, UL 94 V-0 approvals. Package height is only 1.3 mm for low profile automated PCB assembly. Designed for surface mounting with 3-pin DPAK TO-252 form factor. Ideal for DC/DC converters, freewheeling diodes, and polarity protection.
This product is ideal for industrial, automotive, power management, and electronics manufacturing applications. Browse more high-quality semiconductor components in the Schottky Diodes & Rectifiers category on EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 40 A.
It has a peak reverse repetitive voltage rating of 100 V.
The diode features a very low forward voltage drop of 0.89 V.
This model operates reliably between -40°C and 175°C.
The height of the TO-252 package is only 1.3 mm.
It is rated for a peak non-repetitive forward surge current of 240 A.
This diode complies with the AEC-Q101 automotive standard.
It meets RoHS and UL 94 V-0 approvals.
This model is designed for surface mounting.
The diode configuration is a 2x common cathode pair.
It is ideal for applications such as DC/DC converters, freewheeling diodes, and polarity protection circuits.
The brand is Vishay and the model is V40PWM10CHM3/I.
