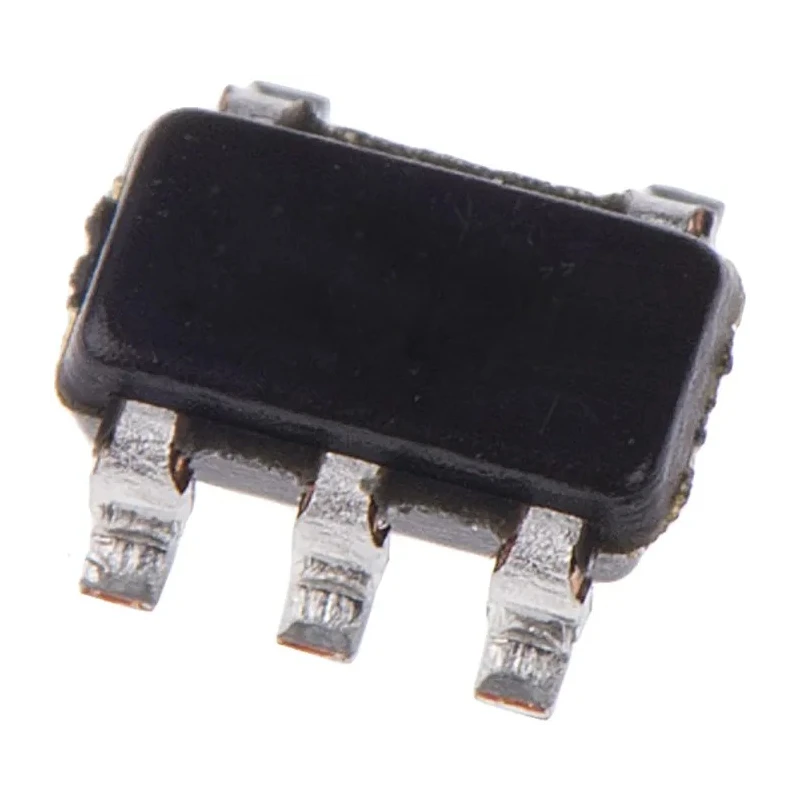

Texas Instruments Non-Inverting 3 State Buffer & Line Driver Logic IC CMOS 5-Pin SOT-23 SN74AHCT1G125DBVR

Texas Instruments SN74AHCT1G125DBVR is a high-performance non-inverting 3 state buffer and line driver designed for CMOS logic applications. Packaged in a compact 5-pin SOT-23 surface-mount package, this device operates reliably within a supply voltage range of 4.5 to 5.5 volts, making it suitable for standard 5V logic systems.

Built utilizing CMOS technology, the SN74AHCT1G125DBVR offers low power consumption and efficient signal buffering with a maximum high level output current of -8mA and a maximum low level output current of 8mA. Its non-inverting output ensures signal integrity while the 3-state output capability allows for bus-oriented applications, enabling multiple devices to share a common line.

The device is designed to function across a wide industrial temperature range from -40°C to 85°C, suitable for demanding environments. Its small 5-pin SOT-23 package (3.05 mm x 1.3 mm) facilitates high-density PCB layouts and surface mounting in compact electronic designs.

This model complies with RoHS standards ensuring it meets environmental regulations for reduced hazardous substances. It belongs to the SN74AHCT1G125 family series, providing compatibility and consistent interfacing within complex electronic systems.

Operates within 4.5 V to 5.5 V supply voltage range. Non-inverting 3 state output for versatile buffering and line driving. Low power CMOS logic technology for energy efficiency. Maximum output current: ±8mA to drive standard loads.

Compact 5-pin SOT-23 surface-mount package dimensions. Wide operating temperature range from -40°C to 85°C for industrial reliability. RoHS compliant meeting environmental standards. Part of the SN74AHCT1G125 family ensuring broad compatibility.

This device is suited for industrial and commercial electronics applications requiring reliable digital signal buffering and line driving. It is ideal for design engineers and technicians integrating logic ICs in embedded systems, communication equipment, and control devices.
