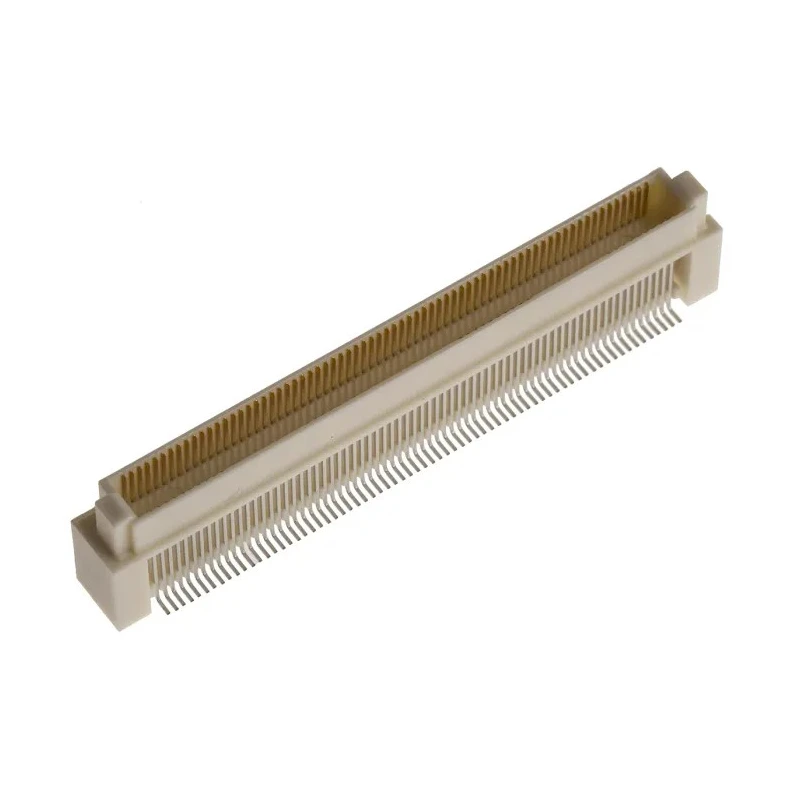

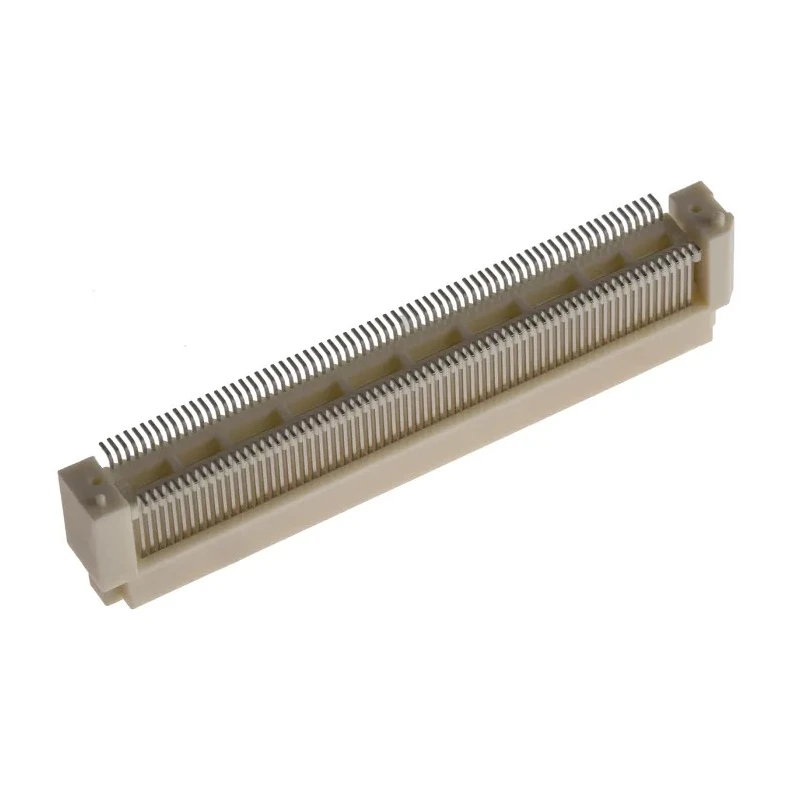

Hirose FunctionMAX FX8C Series Straight Surface PCB Header, 140 Contacts, 0.6 mm Pitch, 2 Row, Shrouded FX8C
Specifications
| Country of Origin | Indonesia |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 400mA |
| Model | FX8C |
| Mount Type | Surface |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Phosphor Bronze |
| Series | FunctionMAX FX8C |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.6mm |
| Contact Plating | Gold |
| Number of Contacts | 140 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Features a shrouded design for secure mating and protection.
- Has 2 rows of male contacts with a pitch of 0.6 mm.
- Constructed with polyphenylene sulphide housing material for durability.
- Gold-plated phosphor bronze contacts ensuring excellent conductivity.
- Supports high-speed data transmission up to 3.125 Gbit/s.
- Operates within temperature range of -55°C to 85°C.
- Surface mount type designed for board-to-board connector systems.
- Alignment bosses and guide ribs improve ease of mating and installation accuracy.
Product Description
Hirose FX8C Series Straight Surface PCB Header FX8C is a high-density connector designed for reliable board-to-board connections with exceptional signal integrity. Featuring 140 contacts arranged in 2 rows at a precise 0.6 mm pitch, this connector is engineered for high-speed transmission up to 3.125 Gbit/s, making it suitable for complex electronic devices.
The connector utilizes a durable polyphenylene sulphide housing and gold-plated phosphor bronze contacts to maintain conductivity and resist corrosion. Its male contact gender and shrouded design ensure secure and protected connections. Built-in guide ribs allow for self-alignment with a tolerance of +/- 0.6 mm, facilitating easy mating and design flexibility.
The FX8C series supports surface mounting on PCBs and includes bosses for precise alignment and prevention of misinsertion. Operating temperature ranges from -55°C to 85°C to meet diverse industrial environmental requirements.
These connectors are widely applied in servers, broadcast and industrial equipment, medical devices, and POS terminals requiring high data speeds and reliable interconnection. Shrouded design enhances connection security and durability.
140 contacts arranged in 2 rows with 0.6 mm pitch precision. Polyphenylene sulphide housing material offers robustness and insulation. Gold-plated phosphor bronze contacts ensure long-lasting conductivity. Supports high-speed data transfer rates up to 3.125 Gbit/s.
Operating temperature from -55°C to 85°C suits various environments. Board-to-board connector system with surface mount feature. Features alignment bosses and guide ribs for self-alignment. Ideal for industrial, medical, server, broadcast, and POS terminal applications.
Choose Hirose FunctionMAX FX8C Series connectors for advanced, high-performance PCB connectivity solutions across demanding industrial and commercial electronics sectors. Explore our wide range of connectors in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose FX8C Series PCB header has a pitch of 0.6 mm.
This model features a total of 140 contacts arranged in 2 rows.
The maximum operating temperature for this connector is 85°C.
The FX8C series supports surface mounting on PCBs.
The housing material is polyphenylene sulphide, and the contacts are made of gold-plated phosphor bronze.
The current rating for this connector is 400 mA.
The operating temperature range for the FX8C series is from -55°C to 85°C.
This model utilizes a board-to-board connector system.
The shrouded design enhances connection security and protects the contacts during mating.
It supports high-speed data transmission up to 3.125 Gbit/s.
The FX8C series features alignment bosses and guide ribs that allow for self-alignment, improving mating accuracy.
The contact gender of the Hirose FX8C PCB header is male.
