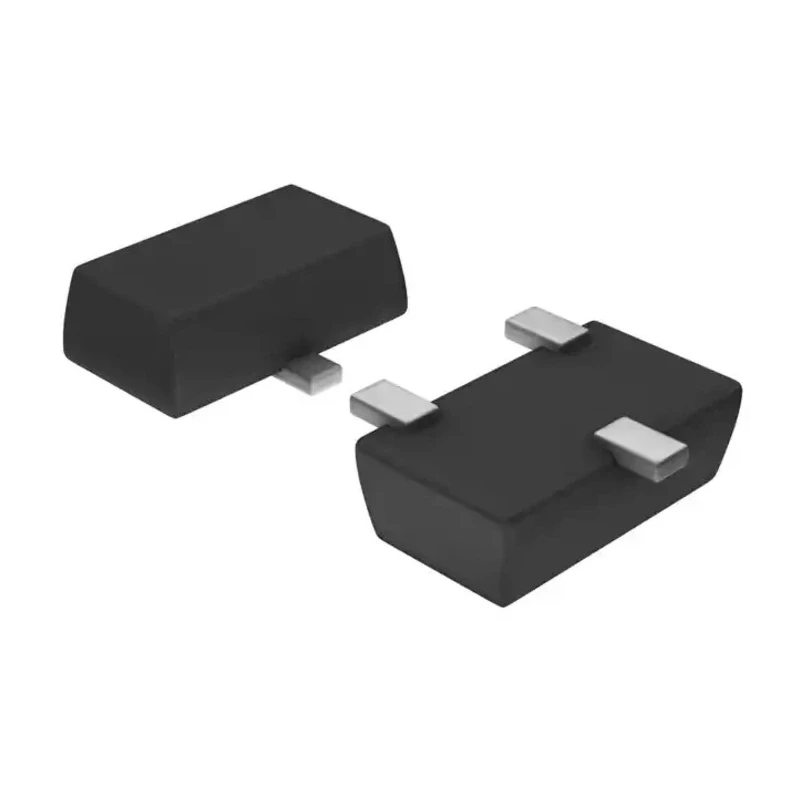

Toshiba P-Channel MOSFET, 3.5 Amp, 60 Volt, 3-Pin SOT-23 Surface Mount Transistor SSM3J351R,LF(T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Toshiba |
| Height | 0.8mm |
| Length | 2.4mm |
| Model | SSM3J351R,LF(T |
| Width | 2.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Channel Type | Type P |
| Maximum Continuous Drain Current Id | 3.5A |
| Maximum Drain Source Voltage Vds | 60V |
| Maximum Drain Source Resistance Rds | 129mΩ |
| Maximum Power Dissipation Pd | 2W |
| Typical Gate Charge Qg @ Vgs | 15.1nC |
| Maximum Gate Source Voltage Vgs | -20V |
| Forward Voltage Vf | 0.85V |
Key Features
- Designed for surface mount applications with a compact SOT-23 package.
- Maximum continuous drain current of 3.5 amperes for efficient switching.
- Maximum drain-source voltage rating of 60 volts suitable for low voltage power management.
- P-Channel MOSFET type enabling ease of integration in power switching circuits.
- Low on-resistance of 129 milliohms reduces power loss during operation.
- Typical gate charge of 15.1 nanocoulombs provides fast switching capabilities.
- Rated for operation from -55°C up to 150°C for stability in varied environments.
- Maximum power dissipation capacity of 2 watts ensures reliability under load.
Product Description
The Toshiba SSM3J351R,LF(T is a high-quality P-Channel MOSFET designed for reliable power management and switching applications in electronics. Featuring a maximum continuous drain current of 3.5 Amps and a maximum drain-source voltage of 60 Volts, this device supports efficient power control in surface-mounted circuit layouts.
Encapsulated in a compact 3-Pin SOT-23 package, the transistor provides a low on-resistance of 129 milliohms, minimizing power losses and enhancing energy efficiency. With a typical gate charge of 15.1 nanocoulombs at 15 volts gate-source voltage, it enables fast switching and reduced drive power requirements.
Operating temperature ranges from -55 to 150 degrees Celsius, allowing performance stability in a wide range of environments including automotive, industrial, and consumer electronics. The transistor can dissipate up to 2 watts of power safely, ensuring durability under moderate power loads.
The product conforms to the AEC-Q101 automotive standard, indicating high reliability suited for automotive electronics and other rigorous industrial applications. Its dimensional footprint (2.4 mm by 2.9 mm by 0.8 mm) makes it highly suitable for compact PCB designs and modern miniaturized electronics.
Compact surface mount package for space-saving PCB integration. High-drain current rating suitable for power management circuits. Robust voltage rating for reliable switching at 60 volts. Low on-resistance for efficient operation.
Fast switching enabled by low typical gate charge. Wide operating temperature for industrial and automotive applications. Automotive compliant AEC-Q101 standard ensures quality and reliability. Designed for use in power management and switching applications.
Dimensions optimized for automated surface mounting processes. Suitable for industrial, automotive, and consumer electronic markets. Explore the wide range of MOSFETs and semiconductor components in our Electronics & Electricals category at EnvMart to find complementary and supporting products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for the SSM3J351R,LF(T is 3.5 amperes.
This model has a maximum drain-source voltage rating of 60 volts.
The transistor is encapsulated in a compact SOT-23 package.
The typical gate charge is 15.1 nanocoulombs at a gate-source voltage of 15 volts.
It operates within a temperature range of -55°C to 150°C.
The maximum power dissipation capacity is 2 watts.
The on-resistance is rated at 129 milliohms.
This MOSFET conforms to the AEC-Q101 automotive standard.
The dimensions are 2.4 mm in length, 2.9 mm in width, and 0.8 mm in height.
It features a P-Channel type.
The maximum gate-source voltage is -20 volts.
This model is designed for power management and switching applications in automotive, industrial, and consumer electronics.
