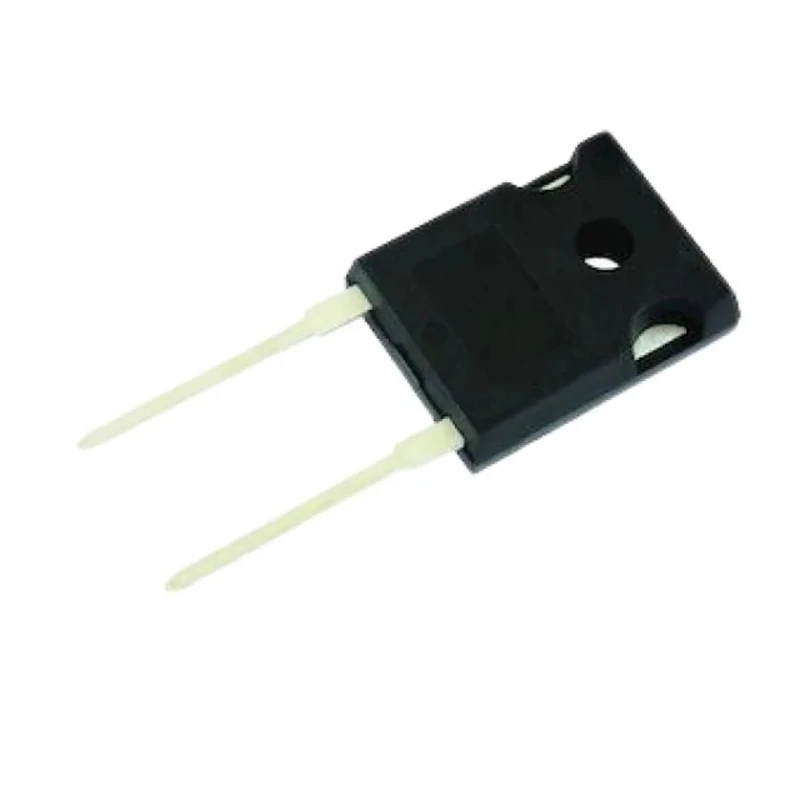

Vishay 600 V 30 A General Purpose Rectifier & Schottky Diode 3-Pin TO-247AD 2L VS-E5PX3006LHN3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 41.02mm |
| Length | 15.87mm |
| Model | VS-E5PX3006LHN3 |
| Mount Type | Through Hole |
| Series | VSX |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AD 2L |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 310A |
| Maximum Forward Voltage Vf | 1.3V |
Key Features
- Supports maximum continuous forward current of 30 amperes.
- Peak reverse repetitive voltage rating of 600 volts ensures robust performance.
- Features a low forward voltage drop of 1.3 volts for efficient conduction.
- Operates reliably within temperature range of -55°C to 175°C.
- Designed as a single diode with three pins for through-hole mounting.
- Peak non-repetitive forward surge current capacity is 310 amperes.
- Polyimide passivation enhances durability and longevity.
- Meets automotive standard AEC-Q101 with whisker test compliance.
Product Description
Vishay VS-E5PX3006LHN3 is a high-performance General Purpose Rectifier & Schottky Diode designed for industrial and automotive applications. With a maximum continuous forward current of 30 A and a peak reverse repetitive voltage of 600 V, it provides reliable switching and rectification in power electronics circuits.
This diode is housed in the TO-247AD 2L package featuring a 3-pin configuration optimized for through-hole mounting. The device offers a low forward voltage drop of 1.3 V and can operate efficiently over a wide temperature range from -55°C to 175°C, ensuring durability even in harsh conditions.
Engineered for high-speed operation, it is suitable for use in soft switched and resonant converters, medium frequency hard switching converters, and particularly improved efficiency in high-speed LLC output rectification stages of EV and HEV on-board battery chargers.
The diode incorporates polyimide passivation for enhanced protection and meets the automotive standard AEC-Q101, passing the JESD 201 class 1A whisker test, confirming its suitability in automotive environments.
Supports maximum continuous forward current of 30 amperes. Peak reverse repetitive voltage rating of 600 volts. Low forward voltage drop of 1.3 volts for energy efficiency. Operating temperature range from -55°C to 175°C.
Polyimide passivated for durability. Automotive standard AEC-Q101 qualified. Peak non-repetitive forward surge current: 310 amperes. Compact 3-pin TO-247AD 2L package. Optimized for high-speed switching applications. Ideal for EV/HEV battery charger rectification stages.
This Vishay rectifier and Schottky diode is highly reliable for use in industrial, automotive, power supply, and renewable energy systems where efficient power rectification and switching are critical.
Explore the full range of Vishay Semiconductor components and find complementary devices in the Schottky Diodes & Rectifiers category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 30 amperes.
The peak reverse repetitive voltage rating is 600 volts.
It has a low forward voltage drop of 1.3 volts.
This model operates reliably within a temperature range of -55°C to 175°C.
The diode is housed in a TO-247AD 2L package optimized for through-hole mounting.
The peak non-repetitive forward surge current capacity is 310 amperes.
Yes, it meets the automotive standard AEC-Q101 and has passed the JESD 201 class 1A whisker test.
This diode features a 3-pin configuration.
It is classified as a general-purpose rectifier and Schottky diode.
The peak reverse current rating is 500 microamperes (μA).
It is suitable for industrial and automotive applications, particularly in power electronics circuits and battery charger rectification stages.
The diode incorporates polyimide passivation for enhanced protection.
