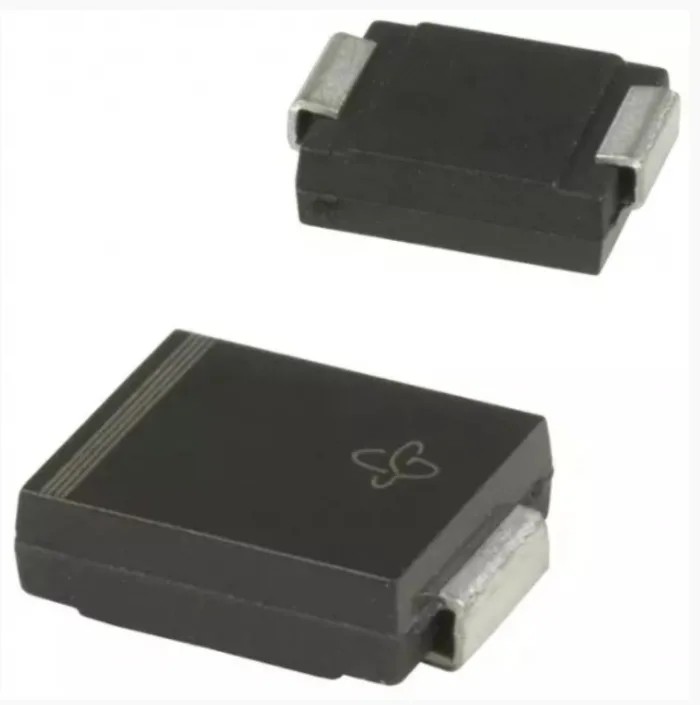

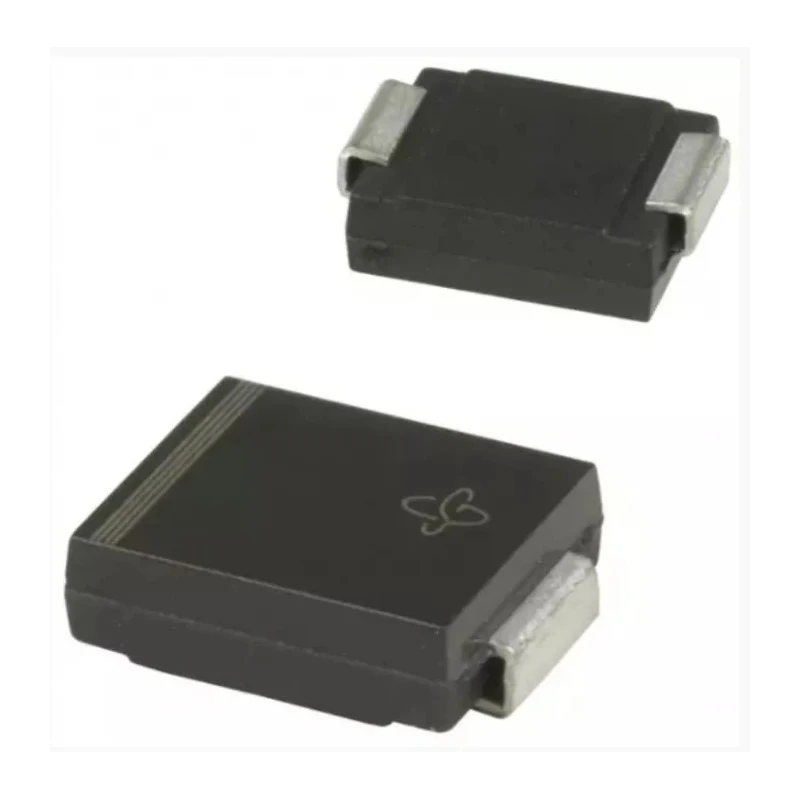

Vishay 600 V 3 A Switching Diode 2-Pin Surface Mount DO-214AA S3J-E3/57T

Vishay S3J-E3/57T is a high-efficiency switching diode designed for use in electronic circuits requiring fast switching and high reliability. Packaged in the DO-214AA surface mount package, this diode offers a compact form factor suitable for modern PCB designs.

With a maximum continuous forward current of 3 A and peak reverse repetitive voltage of 600 V, the diode is capable of handling significant power levels in applications such as power supply regulation, voltage clamping, and signal switching.

The device supports operation across a temperature range from -55°C to 150°C, making it suitable for harsh industrial and automotive environments. Compliance with AEC-Q101 automotive standards ensures durability and quality in demanding automotive electronic systems.

Key electrical characteristics include a peak reverse recovery time of 2.5 microseconds and a forward voltage drop of just 1.15 V, contributing to minimal power dissipation and enhanced overall efficiency in switching circuits.

The diode measures 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height, providing a compact solution for space-constrained designs. Its surface mount design eases automated PCB assembly, supporting high-volume production environments.

The diode is designed for fast switching with a peak reverse recovery time of 2.5 microseconds. Maximum continuous forward current of 3 amperes enables handling of moderate power loads. Peak reverse repetitive voltage rating of 600 volts ensures high voltage tolerance.

Compact DO-214AA surface mount package facilitates space-saving PCB layouts. Operating temperature range from -55°C to 150°C supports wide environmental conditions. Low forward voltage of 1.15 V reduces conduction losses improving efficiency.

Meets automotive AEC-Q101 standards for quality and reliability in automotive systems. Peak non-repetitive forward surge current of 100 A protects device against transient surges. Minimal peak reverse current of 10 microamperes reduces leakage current for stable operation.

This Vishay diode is well suited for industrial power management, automotive electronics, telecommunications, and consumer electronics where reliable high-speed switching performance is necessary. It enables efficient power conversion and signal conditioning in a variety of electronic applications.
