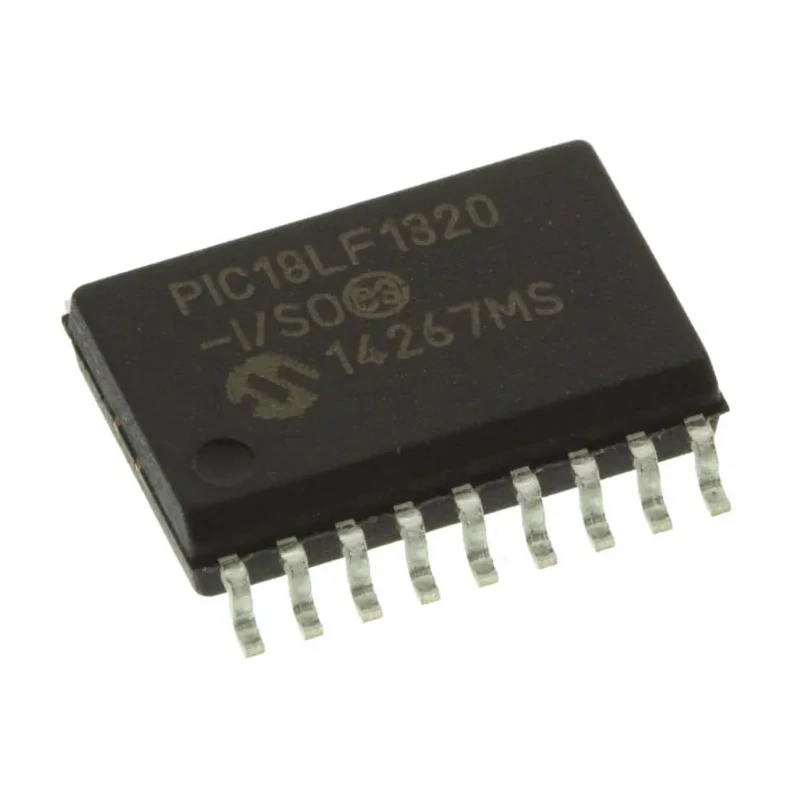

Microchip 8-Bit PIC18F Microcontroller 40 MHz, 8 kB Flash, 256 B RAM, 18-Pin SOIC PIC18LF1320-I/SO
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.35mm |
| Length | 11.55mm |
| Model | PIC18LF1320-I/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Interface Type | SPI |
| Pin Count | 18 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 8, 256kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8kB |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 7 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates with a maximum supply voltage of 5.5 V.
- Features 25 programmable input/output pins for flexible interfacing.
- Includes 7 analog-to-digital converters with 10-bit resolution.
- Built with RISC architecture for efficient instruction execution.
- Operates reliably between -40°C and 85°C ambient temperature range.
- Offers SPI interface support for peripheral communications.
- Low power dissipation rated at 1 W maximum.
- Program memory and RAM are FLASH type and 256 bits respectively.
Product Description
Microchip PIC18LF1320-I/SO is a high-performance 8-bit PIC18F microcontroller designed for embedded applications requiring efficient processing at 40 MHz. It integrates 8 kB program memory with FLASH type and 256 bytes RAM, in a compact 18-pin SOIC surface mount package. The device supports SPI communication, enabling seamless interfacing with a wide range of peripherals.
This microcontroller features 25 programmable input/output pins and 7 ADC channels with 10-bit resolution for precise analog signal measurements in industrial, automotive, and consumer electronics applications. Its RISC instruction set architecture delivers fast and efficient code execution, while the device maintains robust operation across a wide temperature range from -40°C to 85°C.
Operating voltage ranges from 1.8 V minimum up to 5.5 V maximum, supporting low-power designs with a maximum power dissipation of 1 W. The compact dimensions (11.55 mm length, 7.5 mm width, 2.35 mm height) fit space-constrained circuit board layouts. This microcontroller offers flexible control and data handling essential for embedded systems in manufacturing, automation, instrumentation, and communication devices.
Operates with a maximum supply voltage of 5.5 V. Features 25 programmable input/output pins for flexible interfacing. Includes 7 analog-to-digital converters with 10-bit resolution. Built with RISC architecture for efficient instruction execution.
Operates reliably between -40°C and 85°C ambient temperature range. Offers SPI interface support for peripheral communications. Compact dimensions: 11.55 mm length, 7.5 mm width, and 2.35 mm height. Low power dissipation rated at 1 W maximum.
Program memory and RAM are FLASH type and 256 bits respectively.
This product is ideal for industrial automation, embedded control systems, instrumentation, IoT devices, and automotive electronics. Its high reliability and compact footprint make it suitable for modern electronic system designs.
Explore additional Microchip Microcontrollers and semiconductor components available in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz.
It operates reliably between -40°C and 85°C ambient temperature.
This microcontroller has 8 kB of program memory, which is of FLASH type.
The RAM size of this model is 256 bytes.
It features 25 programmable input/output pins for flexible interfacing.
This model supports SPI interface for peripheral communications.
The dimensions are 11.55 mm in length, 7.5 mm in width, and 2.35 mm in height.
The maximum supply voltage is 5.5 V.
The minimum operating voltage is 1.8 V.
It includes 7 analog-to-digital converters with 10-bit resolution.
The maximum power dissipation is rated at 1 W.
It is built with RISC architecture for efficient instruction execution.
