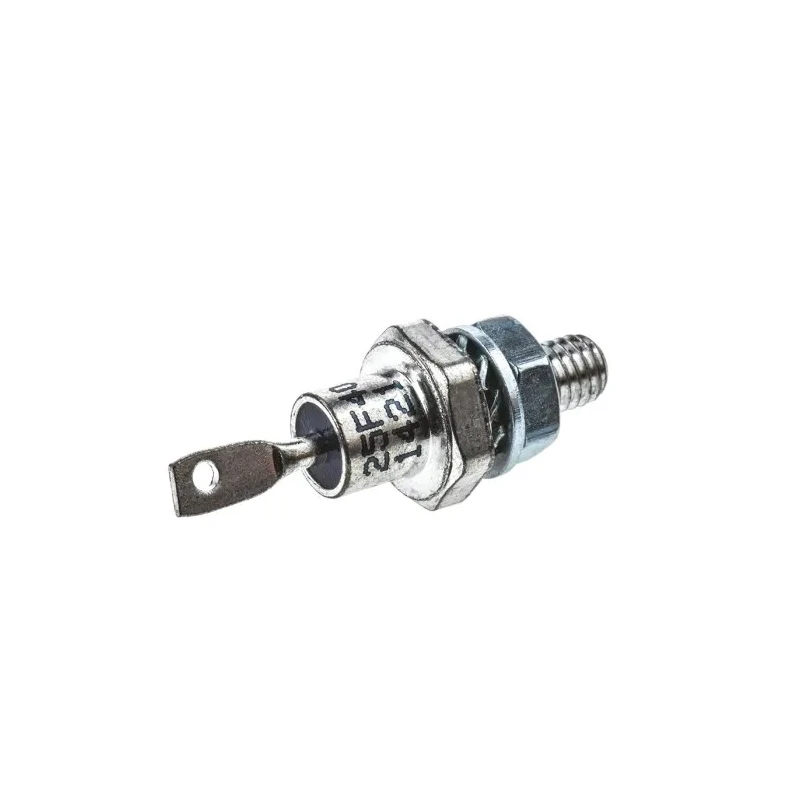

Vishay 400 V 25 A Standard Recovery Switching Diode 2-Pin DO-203AA VS-25F40
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 11mm |
| Brand | Vishay |
| Height | 31.8mm |
| Length | 12.69mm |
| Model | VS-25F40 |
| Width | 11mm |
| Mount Type | Screw |
| Series | VS-25F |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-203AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 25A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Stud Cathode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 12mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 373A |
| Maximum Forward Voltage Vf | 1.3V |
Key Features
- Maximum continuous forward current of 25 A ensures robust current handling.
- Peak reverse repetitive voltage rating of 400 V offers reliable operation under high voltage conditions.
- Low maximum forward voltage of 1.3 V minimizes power losses.
- Wide operating temperature range from -65°C to 175°C suits demanding industrial environments.
- Compact dimensions with length 12.69 mm, diameter 11 mm, and height 31.8 mm enable easy PCB integration.
- Standard recovery rectifier suitable for various electronic power applications.
- Mount type is screw with stud cathode diode configuration for secure installation.
- Peak non-repetitive forward surge current of 373 A supports transient load conditions.
Product Description
Vishay VS-25F40 is a high-efficiency, standard recovery switching diode designed for power rectification applications requiring a maximum continuous forward current of 25 A and peak reverse repetitive voltage of 400 V. Packaged in a compact 2-pin DO-203AA form factor, this diode ensures robust performance across a wide operating temperature range of -65°C to 175°C.
The diode features a stud cathode configuration mounted with screw type fixings, offering firm and reliable installation in discrete electronic circuits. A maximum forward voltage drop of 1.3 V contributes to reduced power dissipation, enhancing system efficiency.
With a peak non-repetitive forward surge current of 373 A, the VS-25F40 diode can withstand transient current spikes commonly encountered in switching or power conversion systems. Its dimensions - length 12.69 mm, diameter and width 11 mm, height 31.8 mm - make it suitable for space-constrained assemblies.
This diode does not comply with automotive standards, targeting industrial, electronic component, and power management uses such as power supplies, rectifiers, and switching regulators in manufacturing, laboratory, and HVAC settings. It fulfills the needs of professionals demanding dependable semiconductor switching diode solutions in discrete component form.
Maximum continuous forward current of 25 A for high current handling capability. Peak reverse repetitive voltage of 400 V suitable for power rectification. Low forward voltage drop of 1.3 V ensures efficiency. Wide operating temperature range from -65°C to 175°C for harsh environments.
Screw mount type with stud cathode diode configuration for stable installation. Compact DO-203AA package with small footprint. Peak non-repetitive forward surge current rating of 373 A for transient currents. Two-pin design for straightforward circuit integration.
Non-automotive standard, ideal for industrial power electronics. Explore more semiconductor components and switching diodes on EnvMart to find the perfect fit for your electronic and industrial automation projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the VS-25F40 diode is 25 A.
The peak reverse repetitive voltage rating for the VS-25F40 is 400 V.
The maximum forward voltage drop of this diode is 1.3 V.
The operating temperature range for the VS-25F40 is from -65°C to 175°C.
The VS-25F40 diode uses a screw mount type with a stud cathode configuration.
The dimensions of the VS-25F40 diode are 12.69 mm in length, 11 mm in diameter, and 31.8 mm in height.
The peak non-repetitive forward surge current rating of the VS-25F40 is 373 A.
The VS-25F40 diode has a pin count of 2.
The VS-25F40 does not comply with automotive standards and is intended for industrial applications.
The VS-25F40 is a standard recovery switching rectifier.
The peak reverse current for the VS-25F40 diode is 12 mA.
The VS-25F40 diode is manufactured in India.
