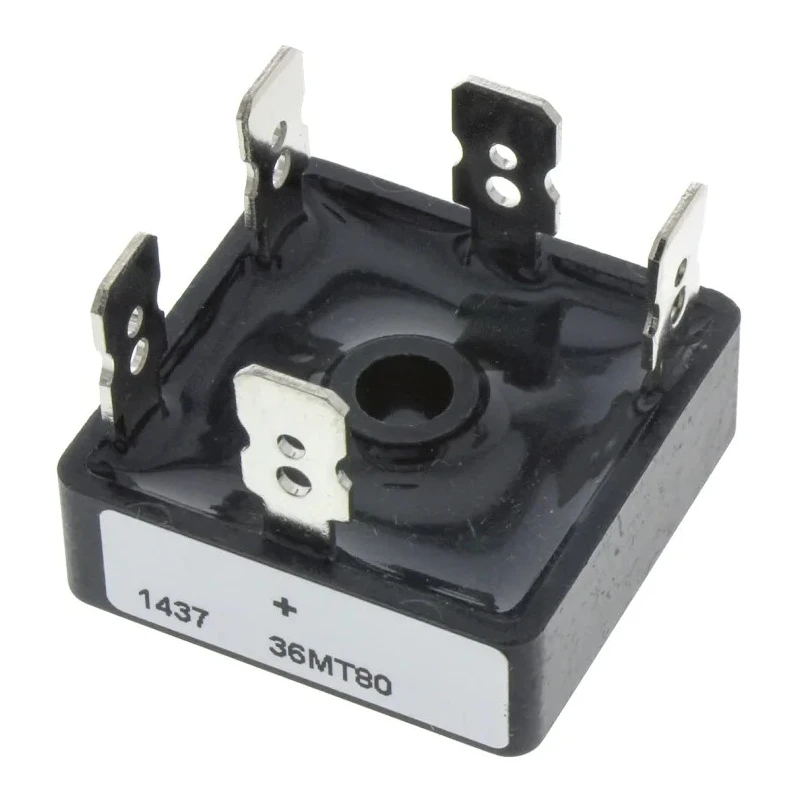

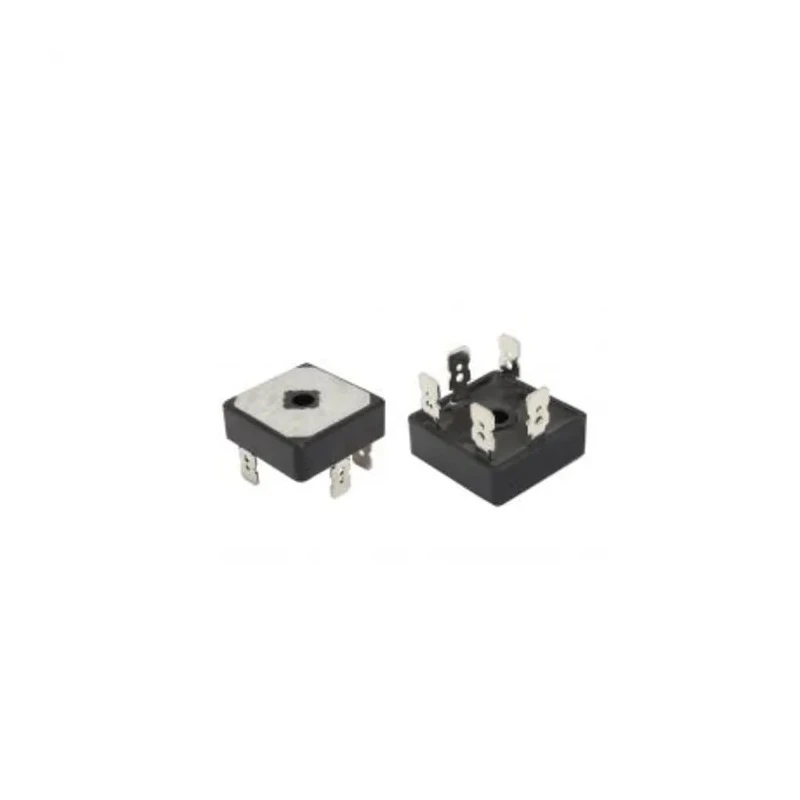

Vishay Bridge Rectifier, 800 V Peak Reverse Voltage, 500 A Peak Surge Current, 5-Pin Single Configuration VS-36MT80
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 10mm |
| Length | 28.5mm |
| Model | VS-36MT80 |
| Width | 28.5mm |
| Mount Type | Through Hole |
| Series | VS-36MT |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-63 |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 3 |
| Pin Count | 5 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500A |
| Forward Current If | 35A |
| Peak Forward Voltage Vf | 1.19V |
| Vishay Bridge Rectifier, 1000 V 500 A, 5-Pin SingleBrand | Vishay |
Key Features
- The device has a maximum operating temperature of 150°C suitable for demanding environments.
- Designed for single-phase 3-phase applications with efficient power handling.
- Features a peak forward voltage of 1.19 V and a forward current rating of 35 A.
- Robust construction with 28.5 mm length, 28.5 mm width, and 10 mm height dimensions.
- Operates reliably over a wide temperature range from -55°C to 150°C.
- Encapsulated package type D-63 supports easy through-hole mounting with 5 pins.
- Offers excellent power to volume ratio ideal for instrumentation and general-purpose applications.
- Features low peak reverse current of 200 µA ensuring minimal leakage.
Product Description
Vishay VS-36MT80 bridge rectifier is a compact, encapsulated single-phase rectifier designed for efficient and reliable conversion of AC to DC in various industrial and instrumentation applications. Featuring a peak reverse repetitive voltage of 800 V and a forward current capacity of 35 A, it excels in high power handling requiring robust performance at elevated temperatures.
This device has a 5-pin single configuration housed in a durable D-63 package. Its compact dimensions of 28.5 mm length, 28.5 mm width, and 10 mm height result in an excellent power-to-volume ratio, making it suitable for space-constrained installations.
Designed for through-hole mounting, the rectifier supports operation in a wide ambient temperature range from -55°C to 150°C, ensuring high reliability in challenging industrial environments. It includes a peak forward voltage of 1.19 V and a peak non-repetitive forward surge current rating of 500 A, supporting robust transient conditions.
Applications of the VS-36MT80 bridge rectifier include power supply circuits, industrial control units, instrumentation, and other electronic systems requiring steady DC output from AC sources. Its low peak reverse current of 200 µA minimizes power losses and leakage currents.
The package supports easy center hole fixing for secure mounting. Three-phase system compatibility due to 3 phases and single configuration. Suitable for use in harsh environments demanding sustained thermal and electrical stress.
Provides reliable operation in laboratory, industrial, and electronic manufacturing contexts. Explore more Vishay semiconductor components and Bridge Rectifiers at EnvMart for your industrial electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 150°C, making it suitable for demanding environments.
It has a peak reverse repetitive voltage rating of 800 V, allowing it to handle high voltage applications effectively.
The forward current rating of this unit is 35 A, which supports robust performance in various applications.
This model measures 28.5 mm in length, 28.5 mm in width, and 10 mm in height, providing a compact footprint for installations.
The peak non-repetitive forward surge current rating is 500 A, enabling it to withstand transient conditions effectively.
It features a low peak reverse current of 200 µA, which minimizes power losses and leakage currents during operation.
This bridge rectifier supports through-hole mounting, facilitating secure installation in various applications.
Yes, it is designed for compatibility with three-phase systems due to its single configuration and robust performance.
The package type is D-63, which supports easy center hole fixing for secure mounting.
The minimum operating temperature is -55°C, allowing it to function reliably in harsh conditions.
This bridge rectifier is suitable for power supply circuits, industrial control units, and instrumentation, providing steady DC output from AC sources.
The peak forward voltage drop is 1.19 V, which is an important parameter for efficiency in power conversion.
