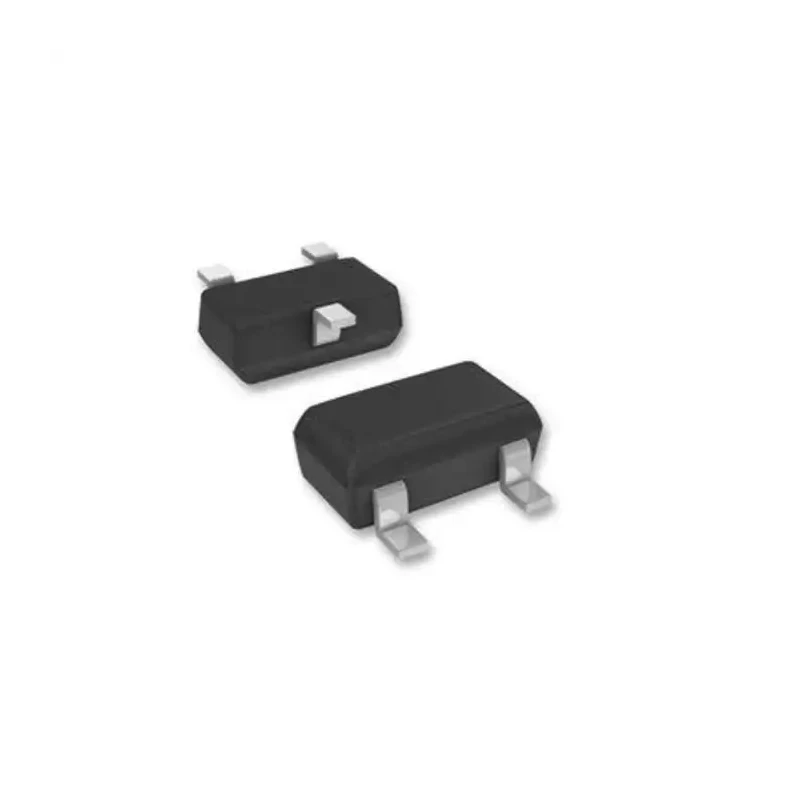

DiodesZetex Hall Effect Sensor 3.3 mA Surface Mount Linear Latching, -40°C to 85°C, 2.7V to 27V AH3270Q-W-7

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex Hall Effect Sensor 3.3 mA Surface Mount Linear Latching, -40°C to 85°C, 2.7V to 27V AH3270Q-W-7

Name: DiodesZetex Hall Effect Sensor 3.3 mA Surface Mount Linear Latching, -40°C to 85°C, 2.7V to 27V AH3270Q-W-7
Brand: DiodesZetex
SKU: 171154
Price: 0.81 USD
Availability: InStock



Category Hall Effect Sensor Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Model	AH3270Q-W-7
Output type	Linear
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Terminal type	Surface Mount
Switch Operation	Latching
Maximum Supply Voltage	27V
Minimum Supply Voltage	2.7V
Supply Current	3.3mA

Key Features

Supports latching switch operation providing stable output.
Equipped with battery polarity reverse connection protection.
Transient spike voltage protection included for automotive environments.
Over-temperature shutdown with auto-restart functionality.
Designed with UVLO protection for undervoltage lockout.
Compact surface mount terminal type for efficient PCB integration.
Supply current is nominally 3.3 mA ensuring low power usage.
Ideal for position and proximity sensing in automotive and industrial applications.

Product Description

DiodesZetex AH3270Q-W-7 Hall Effect Sensor is a two-wire, unipolar latching switch IC with a linear output designed for high sensitivity position and proximity sensing in automotive applications. It operates reliably within a wide supply voltage range of 2.7 volts up to 27 volts and under temperature extremes from -40°C up to 85°C.

The device features robust automotive-grade qualifications compliant with AEC-Q100 standards, ensuring durability and performance in harsh environments. It incorporates built-in protections such as battery polarity reverse connection protection, transient spike voltage protection, and undervoltage lockout (UVLO) to maintain sensor integrity and prevent damage from electrical faults.

Additional features include over-temperature shutdown with auto-restart functionality for enhanced reliability and thermal management. The surface mount terminal type enables simple integration into compact circuit boards, ideal for modern automotive electronic modules.

The AH3270Q-W-7’s low supply current of 3.3 mA contributes to energy-efficient sensor designs, suitable for vehicle position sensing, proximity detection, or other industrial sensor solutions requiring stable latching operation and linear output.

Supports latching switch operation providing stable output. Equipped with battery polarity reverse connection protection. Includes transient spike voltage protection for electrical transient resilience. Over-temperature shutdown and auto-restart enhance device durability.

UVLO protection ensures safe undervoltage operation. Surface mount terminal type for space-saving PCB mounting. Low supply current of 3.3 mA for power-efficient applications. AEC-Q100 automotive qualification for high reliability in automotive environments.

This sensor is widely applicable in automotive, industrial, and automation sectors where accurate magnetic position or proximity sensing is critical. Its rugged design supports extended operational lifecycle and consistent performance under varying electrical and thermal conditions.
