EOS 65W 48V dc Output 1.35 A Switched Mode Power Supply AC/DC Adapter IEC 320 LFZVC65SG48E

Free Delivery in India | Lowest Global Shipping Charges

EOS 65W 48V dc Output 1.35 A Switched Mode Power Supply AC/DC Adapter IEC 320 LFZVC65SG48E



Category Power Supply Brand EOS Condition New

Specifications

Country of Origin	India
Brand	EOS
Power	65W
Efficiency	88%
Length	107.2mm
Model	LFZVC65SG48E
Depth	30mm
Cable Length	1000mm
Width	43.8mm
Series	LFZVC65
Maximum Operating Temperature	40°C
Sub Type	Switched Mode Power Supply
Load Regulation	5 %
Minimum Operating Temperature	0°C
Plug Type	IEC 320, Optional
Number of outputs	1
Maximum Input Voltage	264V ac
Output Voltage	48V dc
Minimum Input Voltage	90V ac
Output Connector Type	2.54 x 5.49 mm Centre Positive
Input Connector Type	IEC 320-C8
Adapter Current	1.35A
Energy Efficiency Level	III

Key Features

High efficiency of 88 percent ensures low power loss during operation.
Compact design with dimensions 107.2mm length, 43.8mm width, and 30mm depth.
Equipped with IEC 320-C8 input connector and optional IEC 320 plug type.
Output connector is 2.54 x 5.49 mm centre positive for reliable connectivity.
Operates safely within ambient temperature range from 0°C to 40°C.
Includes EMI/RFI filtering complying with EN55022-B and FCC certifications.
Fully regulated and protected to ensure stable power supply output.
Auto-select universal input suitable for input voltages ranging from 90V ac to 264V ac.

Product Description

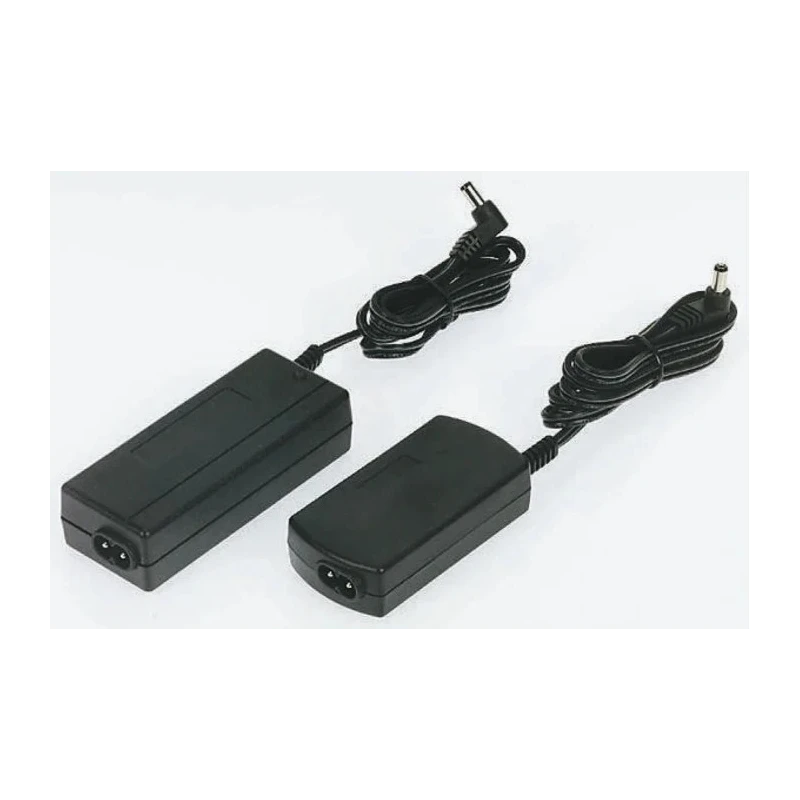

EOS LFZVC65SG48E is a 65W switched mode power supply AC/DC adapter designed for efficient power delivery with 48V dc output and 1.35 A current. It features a compact and lightweight desktop design measuring 107.2mm in length, 43.8mm in width, and 30mm in depth, making it ideal for space-limited applications.

This power supply offers high efficiency of 88 percent and complies with standards such as UL 60950, CSA C22.2 No. 60950, EN 60950, and IEC 60950, ensuring safe and reliable operation. The input connector type is IEC 320-C8, with an optional IEC 320 plug to suit regional power requirements.

The output connector is a 2.54 x 5.49 mm centre positive type, providing secure electrical connection. It operates safely within a temperature range of 0°C to 40°C and supports universal input voltage from 90V ac to 264V ac with a load regulation of 5 percent, maintaining consistent output voltage even under varying load conditions. EMI/RFI filtering is included to comply with EN55022-B and FCC2/15-B standards, minimizing interference.

This supply is fully regulated and protected to ensure stable output performance. The product is part of EOS's LFZVC65 series, known for its ultra-miniature, lightweight design and high efficiency. It is well suited for industrial, commercial, and laboratory applications where reliable 48V dc power is needed from an AC source.

Manufactured in India, this power supply adapter reflects quality and compliance with the highest standards. Its energy efficiency level III classification denotes commitment to environmental considerations.

High efficiency of 88 percent ensures low power loss during operation. Compact design with dimensions 107.2mm length, 43.8mm width, and 30mm depth. Equipped with IEC 320-C8 input connector and optional IEC 320 plug type.

Output connector is 2.54 x 5.49 mm centre positive for reliable connectivity. Operates safely within ambient temperature range from 0°C to 40°C. Includes EMI/RFI filtering complying with EN55022-B and FCC certifications.

Fully regulated and protected to ensure stable Power Supply output. Auto-select universal input suitable for input voltages ranging from 90V ac to 264V ac. Load regulation of 5 percent maintains output voltage consistency under varying loads.

Energy efficiency level III classification, compliant with international standards.

This EOS LFZVC65SG48E AC/DC adapter is an excellent choice for industrial machines, laboratory instruments, and other equipment requiring a reliable, compact, and efficient 48V dc power source. Browse EnvMart's extensive range of power supplies and transformers to find compatible devices and accessories for your technical and commercial power needs.
