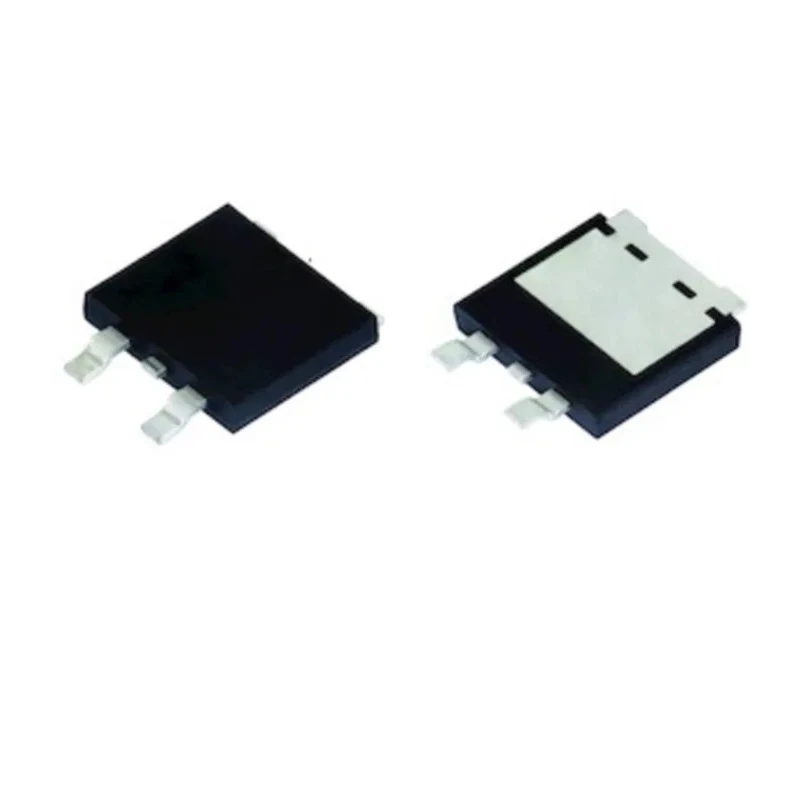

Vishay 600 V 10 A General Purpose Diode 3-Pin D2PAK SE10DLJHM3/I
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.8mm |
| Length | 12.93mm |
| Model | SE10DLJHM3/I |
| Width | 10.2mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263AC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 280ns |
Key Features
- The diode supports a peak forward surge current of 150 A.
- Features a low forward voltage drop of 1 V for reduced power loss.
- Operates reliably across a temperature range from -55°C to 175°C.
- Designed for surface mount applications with low leakage current of 50 μA.
- Compact dimensions with a length of 12.93 mm, width of 10.2 mm, and height of 1.8 mm.
- Meets automotive standard AEC-Q101 for quality and reliability.
- Peak reverse recovery time of 280 ns optimizes performance in high-frequency circuits.
- Ideal for use in power inverters, DC/DC converters, and polarity protection circuits.
Product Description
Vishay SE10DLJHM3/I is a general purpose rectifier diode designed for industrial and automotive electronic applications. This 3-pin diode features a robust TO-263AC (D2PAK) surface mount package suitable for automated PCB mounting. It supports a maximum continuous forward current of 10 A and can withstand peak reverse repetitive voltage of 600 V, making it highly reliable for power rectification tasks.
The diode demonstrates a low forward voltage drop of 1 V, enabling efficient operation with minimal power losses. It also offers a peak forward surge current capacity of 150 A, ensuring durability under brief overload conditions. With a leakage current of just 50 μA and a fast reverse recovery time of 280 ns, it is well-suited for high-frequency switching and power conversion circuits.
Built to operate over a wide temperature range from -55°C to 175°C, this diode meets the AEC-Q101 automotive standard, underscoring its quality and robustness for automotive as well as industrial environments. Compact with dimensions approximately 12.93 mm in length, 10.2 mm in width, and 1.8 mm in height, this component provides space-saving reliability in electronic designs.
Typical applications include use in power inverters, DC/DC converters, freewheeling diodes, and polarity protection. The diode’s surface mount design supports automated placement facilitating efficient manufacturing processes.
The device is a single diode configuration intended for rectification and general purpose switching. Its package type TO-263AC provides efficient thermal management. Low leakage current helps reduce standby power consumption.
Meets automotive reliability requirements with AEC-Q101 certification. Supports high surge currents to handle transient loads. Fast recovery time is suitable for switching power supply applications.
Country of origin is China and the product condition is new. Vishay offers a reliable and quality diode solution suitable for demanding industrial and automotive electronic designs.
Explore more semiconductor components and power rectifiers in EnvMart’s advanced electronic components category for comprehensive selection and high-quality industry-grade components.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 10 A.
This model has a peak reverse repetitive voltage rating of 600 V.
The diode features a low forward voltage drop of 1 V.
It supports a peak forward surge current capacity of 150 A.
This diode operates reliably across a temperature range from -55°C to 175°C.
The diode is housed in a TO-263AC package type, suitable for surface mount applications.
The peak reverse recovery time is 280 ns, optimizing performance in high-frequency circuits.
The leakage current is specified at 50 μA.
It meets the AEC-Q101 automotive standard for quality and reliability.
The dimensions of the diode are approximately 12.93 mm in length, 10.2 mm in width, and 1.8 mm in height.
Typical applications include power inverters, DC/DC converters, and polarity protection circuits.
This model has a single diode configuration intended for rectification and general purpose switching.
