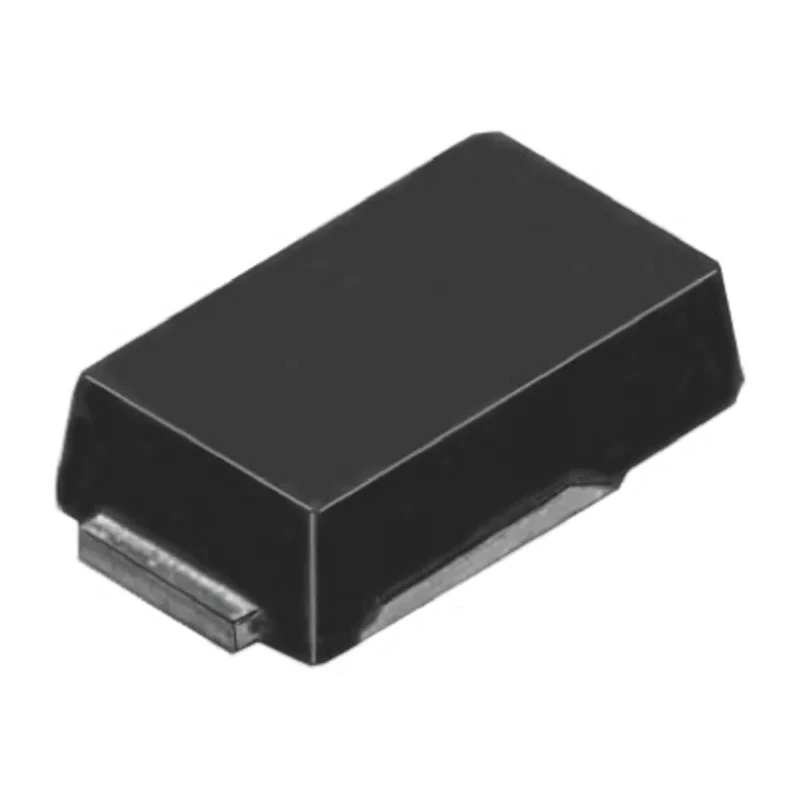

Vishay 600 V 1 A General Purpose Diode Surface Mount SMP Package S1PJ-M3/84A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.15mm |
| Length | 3.61mm |
| Model | S1PJ-M3/84A |
| Width | 2.18mm |
| Mount Type | Surface |
| Series | S1PJ |
| Maximum Operating Temperature | 150°C |
| Package Type | SMP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 1μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.1V |
| Peak Reverse Recovery Time trr | 1.8μs |
Key Features
- Operates at maximum continuous forward current of 1 A.
- Peak reverse repetitive voltage rating of 600 V.
- Low maximum forward voltage drop of 1.1 V.
- Peak reverse recovery time of 1.8 microseconds ensures efficient switching.
- Wide operating temperature range from -55°C to 150°C.
- Compact SMP package with dimensions 3.61 mm length, 2.18 mm width, and 1.15 mm height.
- Meets automotive standard AEC-Q101 for high reliability.
- Single diode configuration with 2 pins for ease of PCB mounting.
Product Description
The Vishay S1PJ-M3/84A diode is a general purpose semiconductor device designed for surface mount technology in a compact SMP package. Rated for a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage of 600 volts, this diode supports reliable rectification and switching operations in a variety of electronic devices.
It features a low forward voltage drop of 1.1 volts, which maximizes efficiency by minimizing power loss during conduction. The diode exhibits a peak reverse recovery time of 1.8 microseconds, enabling fast switching suitable for power supply and signal switching applications.
Designed to operate over a wide temperature range from -55°C to 150°C, the diode is highly versatile for use in industrial, automotive, and commercial electronic circuits. Its small SMP package form factor with precise dimensions of 3.61 mm length, 2.18 mm width, and 1.15 mm height facilitates compact PCB layouts and design flexibility.
The device conforms to the automotive standard AEC-Q101, ensuring high reliability in automotive and demanding environments. Operates at maximum continuous forward current of 1 A. Peak reverse repetitive voltage rating of 600 V.
Low maximum forward voltage of 1.1 V for efficient conduction. Peak reverse recovery time of 1.8 µs for fast switching. Wide operating temperature range from -55°C to 150°C. Compact SMP package: 3.61 x 2.18 x 1.15 mm dimensions.
Meets automotive standard AEC-Q101 for reliability. Single diode with 2 pins for surface mount PCB assembly. Ideal for general purpose rectifier and switching applications. Manufactured in China.
This diode is widely used in electronic manufacturing for applications including power supplies, automotive electronics, and industrial control systems where reliability and efficiency are critical.
Browse the electronic semiconductor category at EnvMart for more Vishay components and related products.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay S1PJ-M3/84A diode is 1 A.
This model has a peak reverse repetitive voltage rating of 600 V.
The maximum forward voltage drop for this diode is 1.1 V.
The peak reverse recovery time of the S1PJ-M3/84A is 1.8 microseconds.
It operates over a wide temperature range from -55°C to 150°C.
The dimensions of the SMP package are 3.61 mm in length, 2.18 mm in width, and 1.15 mm in height.
The diode features a single configuration with 2 pins for ease of PCB mounting.
It meets the automotive standard AEC-Q101 for high reliability.
This model is designed for surface mount technology.
The peak non-repetitive forward surge current for this diode is 30 A.
It is suitable for general purpose rectification and switching applications in various electronic devices.
The Vishay S1PJ-M3/84A diode is manufactured in China.
