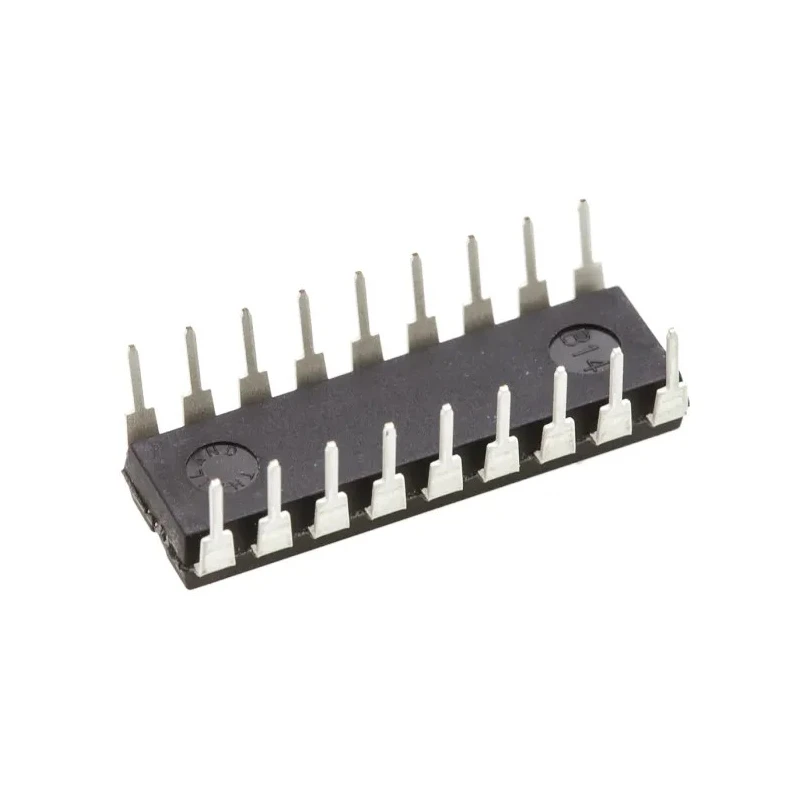

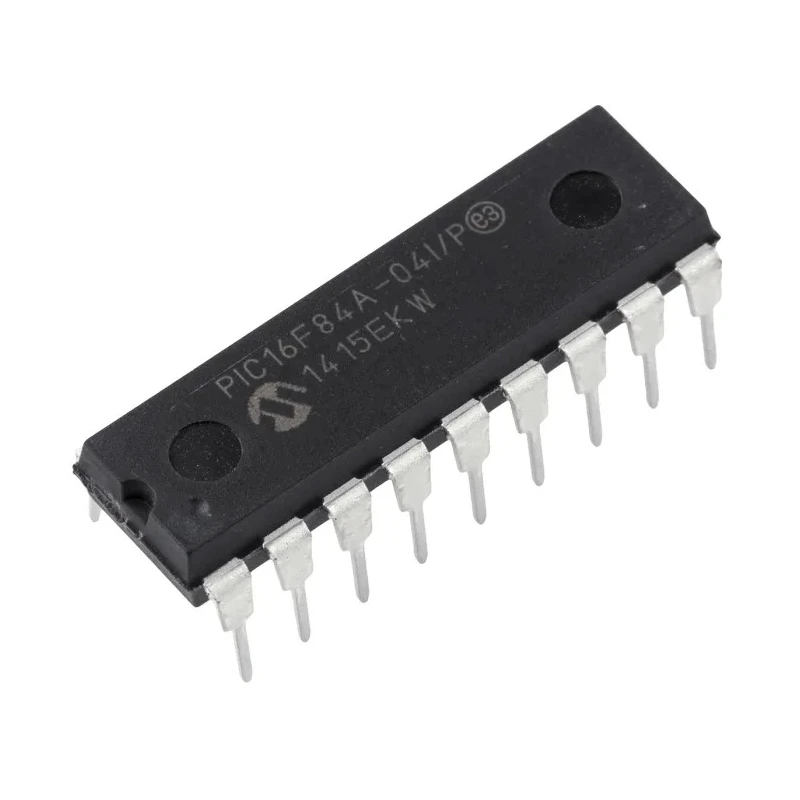

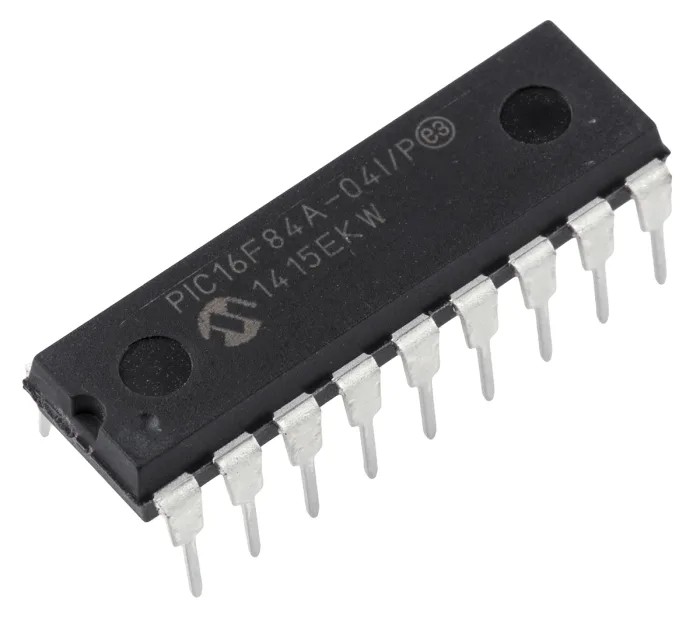

Microchip 8-Bit PIC16F Microcontroller 4 MHz FLASH 1kB Program Memory 18-Pin PDIP PIC16F84A-04I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.68mm |
| Length | 22.99mm |
| Model | PIC16F84A-04I/P |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 68bit |
| Interface Type | RS232 |
| Standards/Approvals | RoHS |
| Pin Count | 18 |
| Maximum Supply Voltage | 6V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 1kB |
| Maximum Clock Frequency | 4MHz |
| Number of Programmable I/Os | 13 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 0 |
| Program Memory Type | FLASH |
| Microchip, 8 bit PIC, PIC16F Microcontroller, 4 MHz FLASH, 18-Pin PDIPBrand | Microchip |
Key Features
- Operates at a maximum clock frequency of 4 MHz.
- Features 1kB FLASH program memory and 68 bytes RAM.
- 18-pin PDIP through-hole package design for easy mounting.
- Supports up to 13 programmable input/output pins.
- Includes one 8-bit timer for versatile timing functions.
- Wide operating voltage range from 2 V to 6 V.
- Power dissipation up to 800 mW ensuring efficient operation.
- RISC instruction set with 35 instructions and 8-level hardware stack depth.
Product Description
Microchip PIC16F84A-04I/P is a high-performance 8-bit PIC microcontroller designed with a Mid-range core architecture. It features a 4 MHz maximum clock speed and 1kB of FLASH program memory, supporting embedded system applications requiring reliable and efficient control. The device comes in an 18-Pin PDIP package supporting through-hole mounting for easy integration into various electronic projects.
This microcontroller supports 13 programmable I/O pins and includes a single 8-bit timer that can be used for various timing-related functions. It operates over a wide supply voltage range from 2 V to 6 V, making it suitable for low to moderate voltage electronic designs. With a power dissipation rating of 800 mW, it ensures dependable performance while maintaining energy efficiency.
The PIC16F84A operates within a broad temperature range from -40°C to 85°C, suitable for demanding industrial, hobbyist, and educational applications. Its RISC instruction set architecture provides 35 instructions and an 8-level hardware stack, enabling efficient program execution with up to 5 MIPS performance.
This microcontroller is RoHS compliant, conforming to environmental safety standards, and does not include ADC peripherals, focusing on digital control applications. It is ideal for embedded system design in consumer electronics, industrial automation, and educational projects.
Maximum clock frequency: 4 MHz. Program memory size: 1kB FLASH memory. RAM size: 68 bytes. Number of programmable I/Os: 13. Package type: 18-Pin PDIP. Operating voltage range: 2 V to 6 V. Power dissipation: 800 mW. Operating temperature: -40°C to 85°C.
Instruction set: RISC with 35 instructions. Compliance: RoHS certified.
This Microchip PIC16F microcontroller is widely used in industrial automation, embedded control systems, consumer gadgets, and academic development kits. Explore a wide range of Microcontrollers and related electronic components at EnvMart to support your projects and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 4 MHz.
It features a program memory size of 1kB FLASH memory.
This microcontroller supports up to 13 programmable input/output pins.
The operating voltage range is from 2 V to 6 V.
It comes in an 18-Pin PDIP through-hole package design for easy mounting.
The RAM size is 68 bytes.
The maximum power dissipation is rated at 800 mW.
It operates within a temperature range from -40°C to 85°C.
This model includes one 8-bit timer for various timing functions.
It uses a RISC instruction set architecture with 35 instructions.
Yes, this microcontroller is RoHS compliant, conforming to environmental safety standards.
The height of this microcontroller is 3.68 mm.
