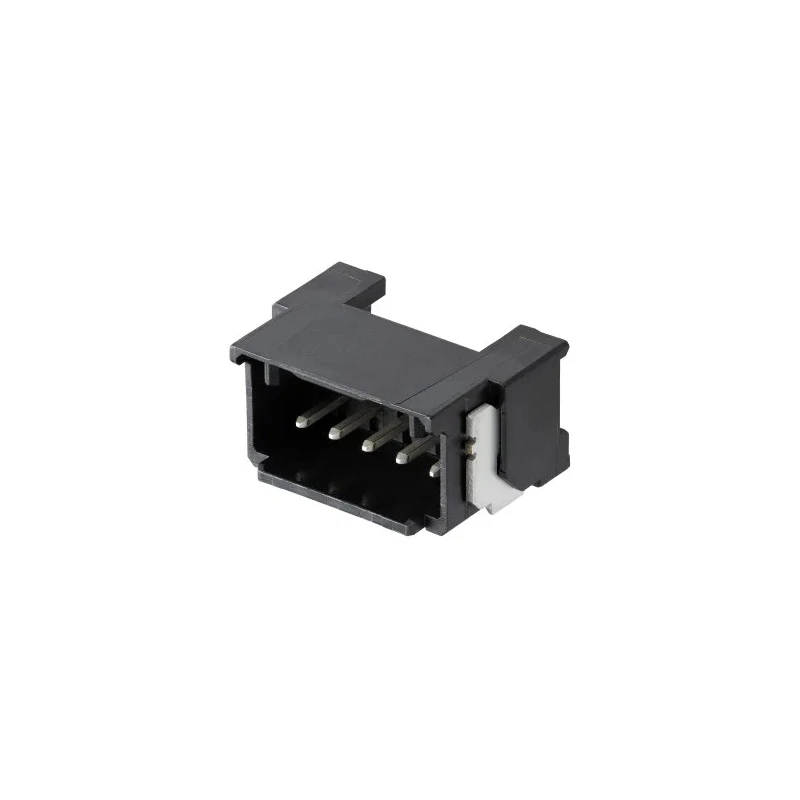

Molex Micro-One Series Right Angle Surface PCB Header, 5 Contacts, 2 mm Pitch, 1 Row, Shrouded 2170640051

The Molex 2170640051 Micro-One Series Right Angle Surface PCB Header is a precision wire-to-board connector designed for robust electrical performance and secure terminal retention. It features 5 male contacts arranged in a single shrouded row with a 2 mm pitch, suitable for surface mounting on printed circuit boards. The connector housing is molded from high-quality polyamide, providing excellent insulation and mechanical stability.

Its brass contacts plated with tin bismuth ensure reliable conduction with resistance to corrosion, rated for currents up to 4 amperes and voltages up to 250 volts. The design includes an integrated independent secondary locking mechanism that confirms proper terminal insertion and prevents accidental back out, especially important in high vibration industrial, manufacturing, and electronic applications.

The header is engineered to operate reliably across a wide temperature range from -40°C to 105°C, making it suitable for demanding environments such as automotive electronics, industrial controls, and HVAC systems. Its right angle orientation allows neat PCB layout and connections in compact spaces.

This connector series complies with major environmental and safety standards including CHINA RoHS, EU ELV, and EU RoHS certifications, reflecting its use in eco-conscious electronics manufacturing.

Overall, this Molex Micro-One header delivers precision, durability, and secure electrical connectivity for laboratory, commercial, industrial, and electronic equipment assembly. It enables designers and engineers to maintain circuit integrity and simplified construction with high-quality micro connector solutions.

Features 5 male contacts arranged in a single row. 2 mm pitch ensures precise board compatibility. Constructed with durable polyamide housing. Contact material is brass with tin bismuth plating for corrosion resistance. Rated for 4 ampere current and 250 volt operating voltage.

Supports operation between -40°C to 105°C. Designed with integrated secondary locking to prevent terminal back out. Suitable for surface mount on PCBs in high vibration environments.
