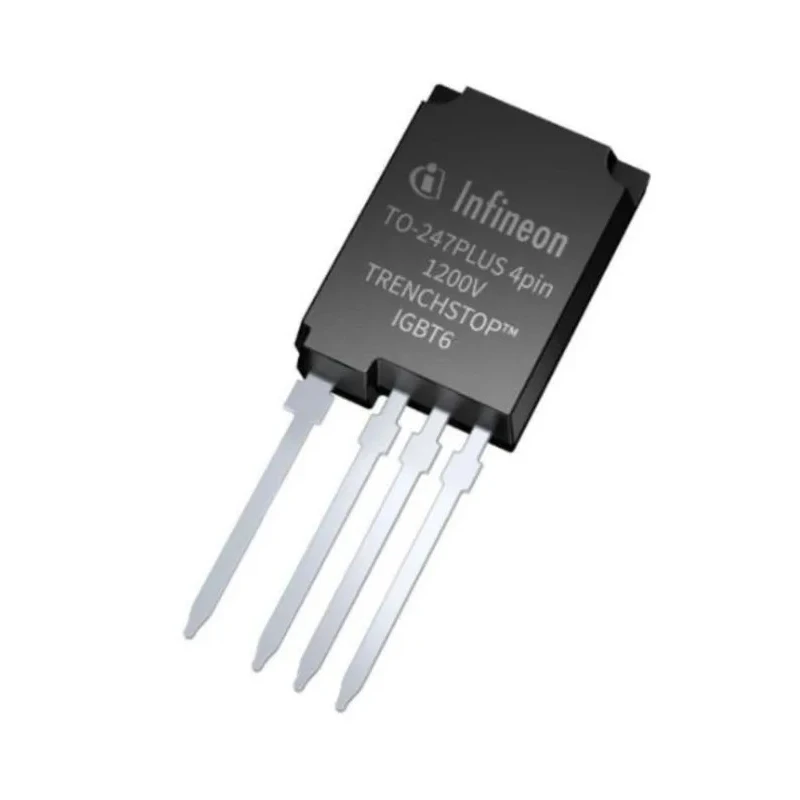

Infineon N-Channel IGBT 75A 1200V 4-Pin TO-247 Through Hole IKY75N120CS6XKSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 5.1mm |
| Length | 41.2mm |
| Model | IKY75N120CS6XKSA1 |
| Width | 15.9mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | JEDEC47/20/22 |
| Pin Count | 4 |
| Maximum Continuous Collector Current Ic | 75A |
| Maximum Collector Emitter Voltage Vceo | 1200V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.85V |
| Channel Type | N |
| Maximum Power Dissipation Pd | 880W |
| Maximum Gate Emitter Voltage VGEO | 20 V |
Key Features
- This IGBT features a 4-pin TO-247 package with through-hole mount.
- Maximum continuous collector current is 75 A ensuring high power handling.
- Maximum collector-emitter voltage rating is 1200 V for high voltage applications.
- High power dissipation rating of 880 W supports demanding industrial uses.
- Maximum operating temperature up to 175°C enhances durability.
- Switching speed of 300 ns enables fast operation suitable for advanced systems.
- Minimum operating temperature reaches -40°C for wide environmental suitability.
- Constructed with hard-switching TRENCHSTOP IGBT6 technology for low losses.
Product Description
Infineon IKY75N120CS6XKSA1 is a high-speed, hard-switching N-Channel IGBT designed to provide excellent performance in industrial and power electronics applications. Featuring a 4-pin TO-247 package with a through-hole mount, this device supports a maximum continuous collector current of 75 A and withstands voltages up to 1200 V.
Thanks to its advanced TRENCHSTOP IGBT6 technology co-packed with a soft and fast recovery full current anti-parallel diode, it achieves a balance between low switching and conduction losses. This results in high system efficiency and reliability in demanding industrial environments.
The device supports operation in a wide temperature range from -40°C to 175°C, ensuring durability and stable performance in harsh conditions. Its fast switching speed of 300 ns makes it suitable for applications requiring rapid response times.
Common use cases include industrial heating, welding, and uninterruptible power supply (UPS) systems where high efficiency and reliable switching are critical. The TO-247 package type with 4 pins facilitates easy installation in standard through-hole configurations.
High continuous current rating of 75 A for heavy-duty industrial tasks. Voltage rating of 1200 V supports high voltage power electronics. Robust thermal ratings ensure stable operation up to 175°C. Fast switching speed suitable for modern power systems.
Advanced technology reduces losses and extends device lifetime. Includes an integrated fast recovery diode for improved system performance. Reliable mounting package TO-247 with 4 pins supports through-hole applications.
Wide operating temperature range from -40°C to 175°C. Applicable for welding, industrial heating, and UPS system hardware.
This product is sourced from Infineon, a leader in semiconductor technology known for durable and efficient power electronic components. It complies with JEDEC standards 47/20/22, ensuring quality and consistency.
Explore EnvMart's extensive catalog for more semiconductor devices and components tailored to your industrial and electronic engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this IGBT is 75 A, allowing it to handle heavy-duty industrial tasks effectively.
This model has a maximum collector-emitter voltage rating of 1200 V, making it suitable for high voltage power electronics applications.
The maximum power dissipation rating is 880 W, which supports demanding industrial uses.
It operates within a wide temperature range from -40°C to 175°C, ensuring stable performance in harsh conditions.
This device comes in a 4-pin TO-247 package, designed for through-hole mounting, facilitating easy installation.
The switching speed is 300 ns, making it suitable for applications that require rapid response times.
It is constructed with hard-switching TRENCHSTOP IGBT6 technology, which helps reduce losses and improve efficiency.
The maximum gate-emitter voltage for this IGBT is 20 V, which is essential for its operation.
The dimensions of this model are 41.2 mm in length, 15.9 mm in width, and 5.1 mm in height.
It complies with JEDEC standards 47/20/22, ensuring quality and consistency in its performance.
Common applications include industrial heating, welding, and uninterruptible power supply (UPS) systems due to its high efficiency and reliable switching capabilities.
The maximum collector-emitter saturation voltage for this model is 1.85 V, which is relevant for assessing its efficiency during operation.
