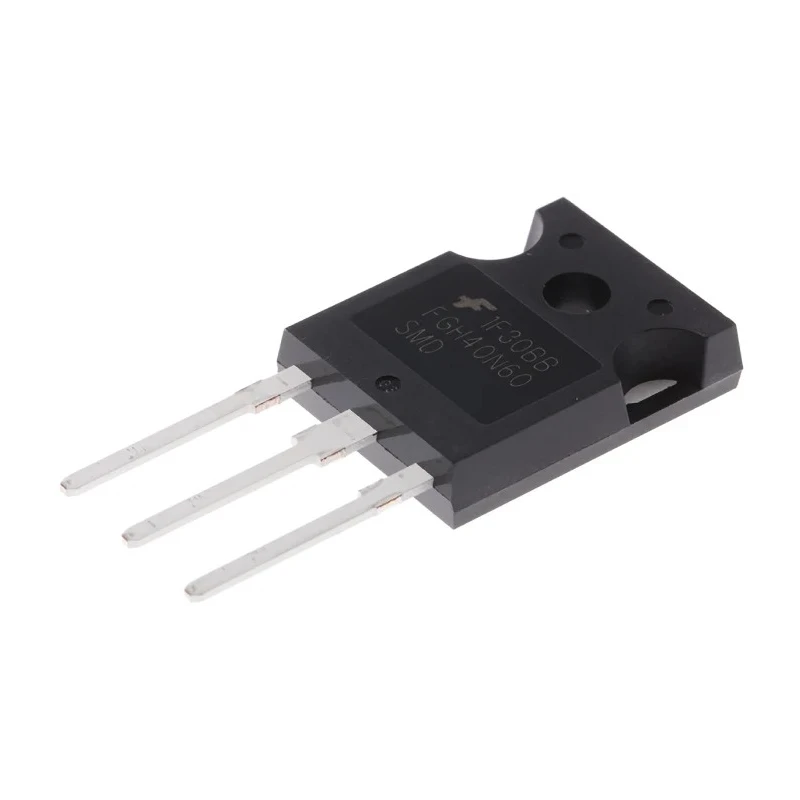

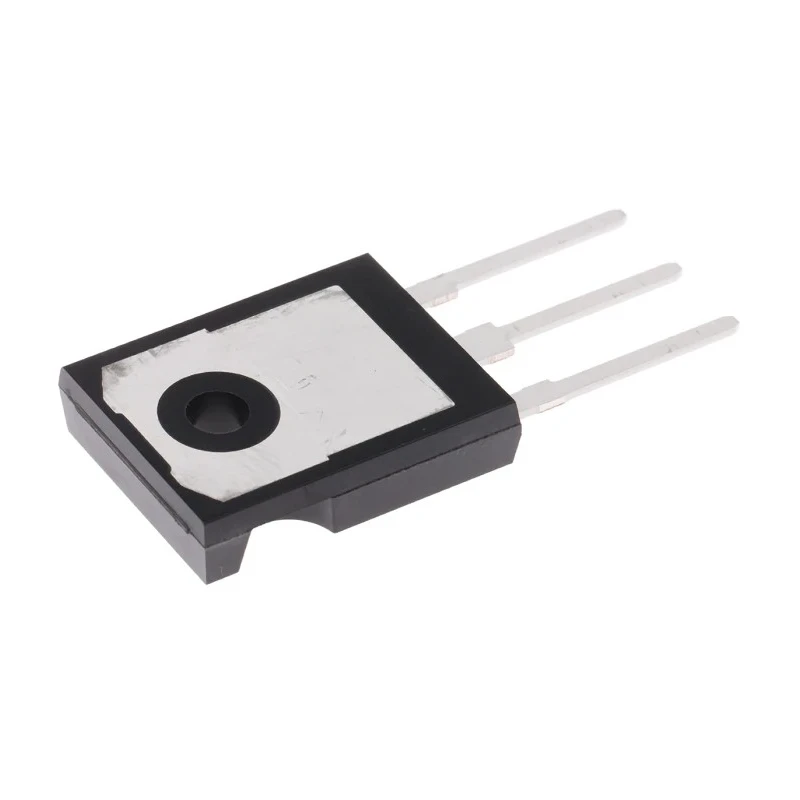

onsemi N-Channel IGBT 80A 600V 3-Pin TO-247 Through Hole FGH40N60SMD
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 4.82mm |
| Length | 15.87mm |
| Model | FGH40N60SMD |
| Width | 20.82mm |
| Mount Type | Through Hole |
| Series | Field Stop |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Collector Current Ic | 80A |
| Maximum Collector Emitter Voltage Vceo | 600V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.5V |
| Channel Type | N |
| Maximum Power Dissipation Pd | 349W |
| Maximum Gate Emitter Voltage VGEO | 20 V |
Key Features
- Maximum continuous collector current rated at 80 amperes.
- Collector-emitter voltage capability of 600 volts for robust performance.
- Maximum power dissipation rating of 349 watts to handle high power loads.
- 3-pin TO-247 package with through-hole mount ensuring reliable installation.
- Operating temperature range from -55°C to 175°C suitable for harsh environments.
- Maximum gate emitter voltage of 20 volts for optimal gate control.
- Low collector emitter saturation voltage of 2.5 volts enhancing efficiency.
- Compact dimensions of 15.87 mm length, 20.82 mm width, and 4.82 mm height.
Product Description
The onsemi FGH40N60SMD is a high-performance N-Channel Insulated Gate Bipolar Transistor (IGBT) designed for advanced power semiconductor applications.
This 3-pin TO-247 through-hole package device supports a maximum continuous collector current of 80 amperes and a collector-emitter voltage rating of 600 volts. It offers maximum power dissipation of 349 watts, providing robust capacity for demanding operational conditions in industrial, manufacturing, and electronic systems.
The device features a maximum gate emitter voltage of 20 volts and a low collector-emitter saturation voltage of 2.5 volts which contributes to efficient switching and lower conduction losses.
Designed with a field stop structure, the FGH40N60SMD offers a balance between high speed switching and low on-state losses.
This component operates reliably across a wide temperature range from -55°C up to 175°C, suitable for harsh thermal environments encountered in power electronics, motor drives, and inverter circuits.
Compactly sized at 15.87 mm length, 20.82 mm width, and 4.82 mm height, the device fits standard TO-247 mounting for ease of integration into power assemblies. It complies with RoHS environmental standards ensuring reduced hazardous substances in manufacturing.
Maximum continuous collector current rated at 80A for heavy load applications. 600V maximum collector-emitter voltage supports high voltage circuits. 349W power dissipation rating for sustained power handling. TO-247 package with through-hole mounting for mechanical reliability.
Operating temperature from -55°C to 175°C for versatile thermal usage. Low Vce saturation voltage of 2.5V enables efficient operation. Field stop design ensures improved switch performance. Compact device dimensions enable integration into various designs.
RoHS compliant for environmental safety.
This onsemi FGH40N60SMD IGBT is ideally suited for industrial power switching, motor control, inverter construction, and other electronic power management tasks. It is an essential component in industrial automation, HVAC systems, and high-efficiency power electronics.
EnvMart provides this onsemi IGBT with guaranteed authenticity and support for engineering and manufacturing professionals.
