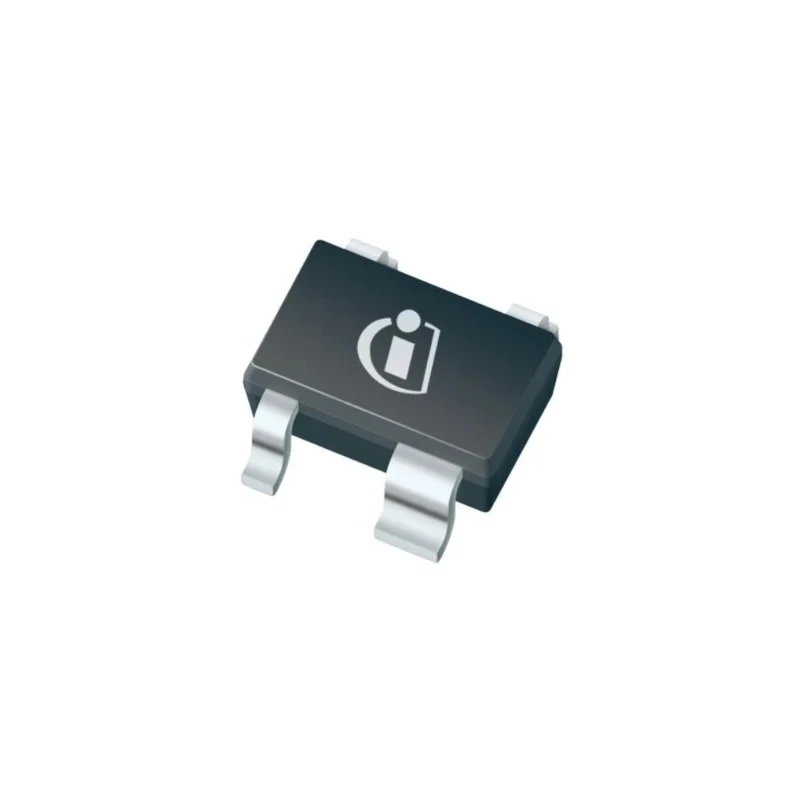

Infineon 70 V 700 mA Surface Mount Schottky Diode Parallel Pair 4-Pin SOT-343 BAS7007WH6327XTSA1

Infineon BAS7007WH6327XTSA1 is a surface mount Schottky diode designed for efficient, compact, and reliable electronic applications requiring low forward voltage and high current handling capabilities. This diode features a parallel pair diode configuration within a 4-pin SOT-343 package, making it suitable for high-speed switching and power-rail protection circuits in both commercial and automotive electronic assemblies.

The device supports continuous forward currents of up to 700 mA and withstands peak reverse voltages up to 70 V, ensuring robust performance in moderate voltage environments. Its fast peak reverse recovery time of 100 ps greatly reduces switching losses, improving overall system efficiency, especially in DC-DC converter circuits.

Operating reliably between -55 °C and 125 °C, it meets the stringent AEC-Q101 automotive qualification and RoHS environmental standards, making it ideal for use in battery management systems, reverse polarity protection, and compact SMD designs where space optimization is critical.

Key features include low leakage current of just 0.1 μA, enhancing standby power efficiency, and a parallel pair diode configuration enabling balanced current sharing. The compact dimensions measure 2 mm length, 1.25 mm width, and 0.9 mm height.

Low forward voltage reduces conduction losses and enhances efficiency. Capable of handling continuous currents up to 700 mA for high load applications. Peak reverse repetitive voltage rating of 70 V suitable for moderate voltage circuitry.

Fast recovery time of 100 ps minimizes switching losses at high speeds. Extremely low leakage current of 0.1 μA conserves power in standby mode. Qualified to automotive standard AEC-Q101 ensuring reliability in automotive uses.

Compact SOT-343 package ideal for space-constrained surface mount assemblies. Wide operating temperature range from -55 °C to 125 °C supports demanding environments.

This diode is highly recommended for industrial, automotive, and consumer electronic applications such as power-rail protection modules, DC-DC converters, and battery management systems that demand reliable switching and low loss operation.
