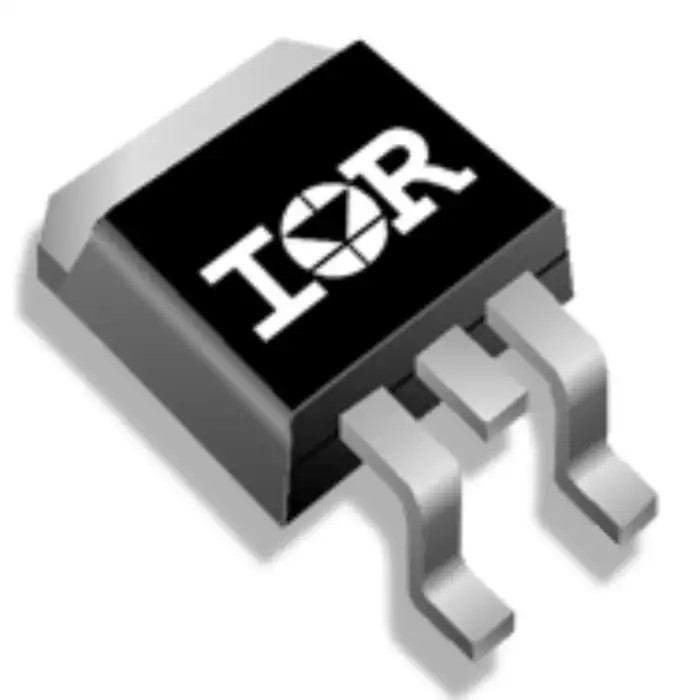

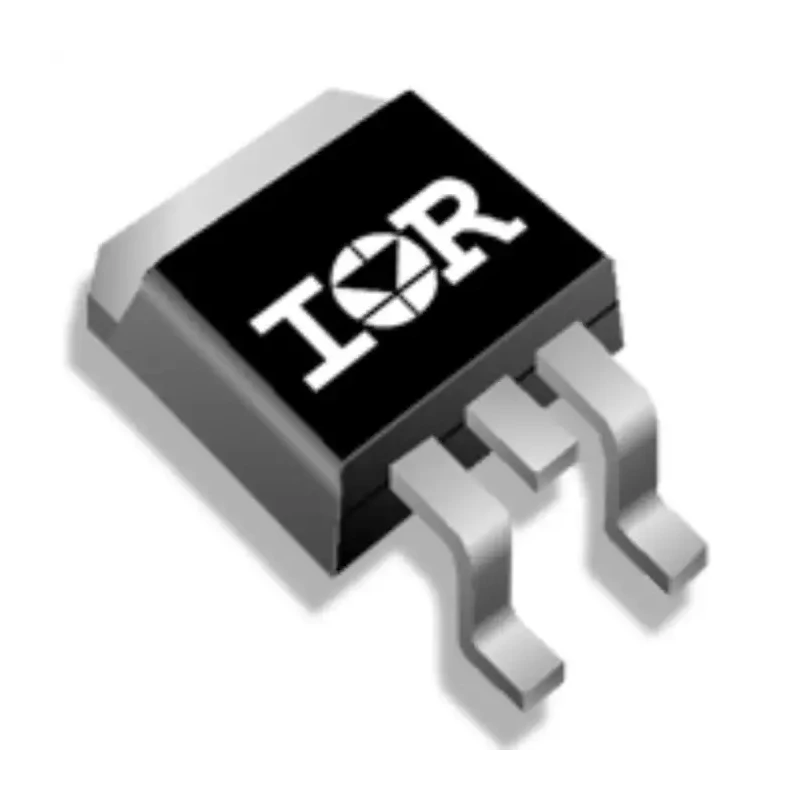

Infineon HEXFET N-Channel MOSFET 87 A 30 V TO-263 Surface Mount 3-Pin IRF3709ZSTRRPBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | IRF3709ZSTRRPBF |
| Mount Type | Surface |
| Series | HEXFET |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 87A |
| Maximum Drain Source Voltage Vds | 30V |
| Maximum Drain Source Resistance Rds | 7.8mΩ |
| Maximum Power Dissipation Pd | 79W |
| Typical Gate Charge Qg @ Vgs | 26nC |
| Maximum Gate Source Voltage Vgs | 20V |
| Forward Voltage Vf | 1V |
Key Features
- Designed for surface mount applications with 3-pin configuration.
- Features low maximum drain-source resistance of 7.8 milliohms for enhanced performance.
- Supports a maximum power dissipation of 79 W suitable for robust operations.
- Typical gate charge at Vgs rated is 26 nanocoulombs for efficient switching.
- Operates reliably from -55°C to a maximum temperature of 175°C.
- Complies with JEDEC product qualification standards to ensure quality and reliability.
- Forward voltage drop of 1 volt to minimize power loss during conduction.
- Maximum gate-source voltage of ±20 V supports safe gate drive operations.
Product Description
The Infineon IRF3709ZSTRRPBF is a HEXFET type N-Channel MOSFET engineered for high current applications requiring low RDS(on) and rugged device characteristics. This MOSFET is housed in a TO-263 package suitable for surface mounting on printed circuit boards and features a 3-pin layout facilitating straightforward integration.
With a maximum continuous drain current (Id) of 87 A and a maximum drain-source voltage (Vds) of 30 V, this device caters to medium power electronics and power management circuits.
Its low maximum drain-source resistance of 7.8 milliohms ensures efficient conduction with minimal losses, complemented by a maximum power dissipation rating of 79 W to accommodate rigorous operational demands.
The device’s typical gate charge of 26 nC at rated gate-source voltages allows for rapid switching speeds beneficial in low-frequency power conversion applications. Designed to operate within a wide temperature range from -55°C to 175°C, it provides reliability under harsh industrial conditions.
Compliant with JEDEC quality standards and not classified under any automotive certification, it is primarily intended for industrial, electronic components, and power semiconductor applications.
Designed for robust surface mount electronic applications. High current capability suitable for power management circuits. Low conduction resistance for energy-efficient operation. Wide operating temperature range for industrial environments.
JEDEC qualified for assured quality and reliability. Compact TO-263 package for easy PCB integration. Optimized for low-frequency applications with ruggedness. Typical forward voltage drop minimizes power loss.
This Infineon HEXFET MOSFET series product is suited for use in industrial electronics, power supplies, motor drivers, and other applications requiring reliable power switching components.
Explore more components and electronic semiconductor devices in the Semiconductor > MOSFET category on EnvMart for comprehensive industrial-grade solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current (Id) for this model is 87 A.
It can handle a maximum drain-source voltage (Vds) of 30 V.
The maximum power dissipation rating is 79 W, suitable for robust operations.
The typical gate charge (Qg) at rated gate-source voltage is 26 nanocoulombs.
It operates reliably from -55°C to a maximum temperature of 175°C.
The maximum gate-source voltage (Vgs) is ±20 V, supporting safe gate drive operations.
The maximum drain-source resistance (Rds) is 7.8 milliohms, ensuring efficient conduction.
This model is housed in a TO-263 package, suitable for surface mounting.
It has a 3-pin configuration, facilitating straightforward integration.
Yes, it complies with JEDEC product qualification standards to ensure quality and reliability.
It is primarily intended for industrial electronics, power supplies, and motor drivers.
This model features an N-channel configuration.
