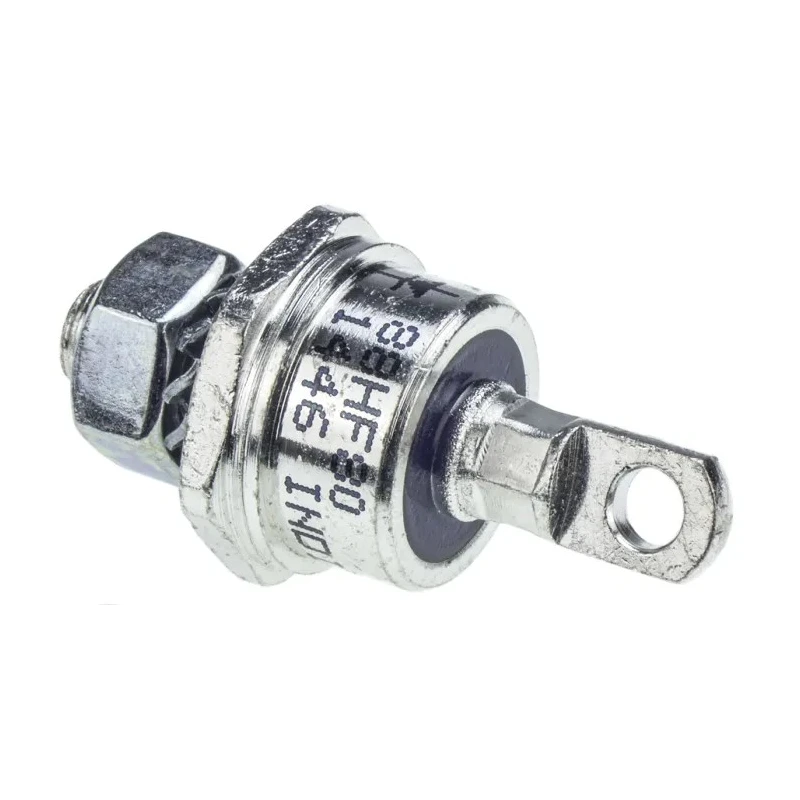

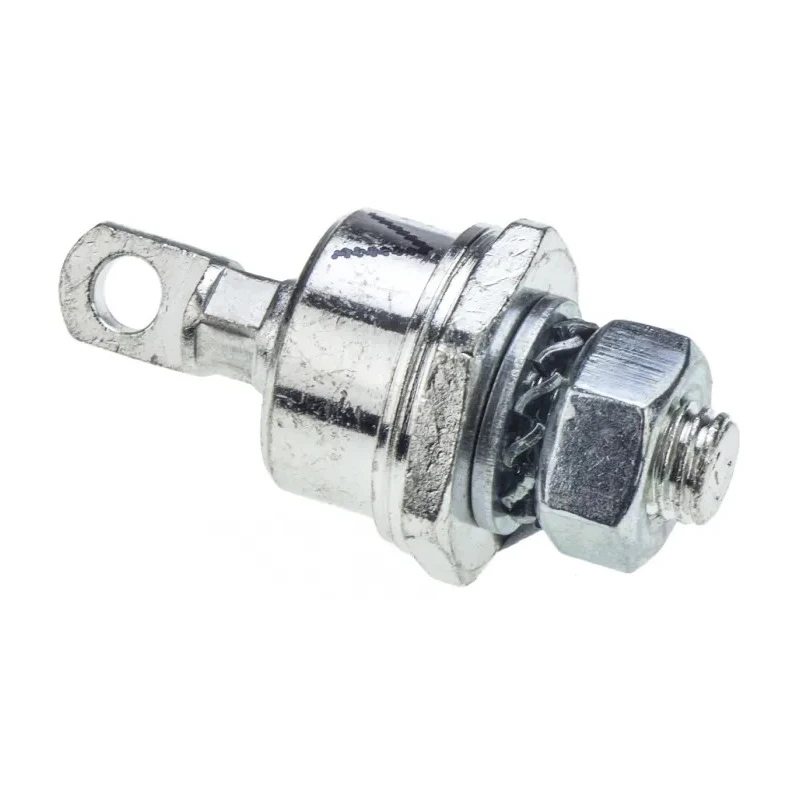

Vishay 800 V 85 A Standard Recovery Switching Diode 2-Pin DO-203AB VS-88HF80

Vishay VS-88HF80 is a high-performance standard recovery switching diode tailored for industrial, electronics, and power management applications. This diode features a robust maximum continuous forward current rating of 85 A and a peak reverse repetitive voltage of 800 V, ensuring dependable operation in power rectification and switching circuits.

Housed in a compact 2-pin DO-203AB package with stud cathode configuration, the diode provides efficient standard recovery behavior suited for diverse electronic components and power system designs. Its peak non-repetitive forward surge current of 1.8 kA equips it to handle transient overloads without damage.

The device operates reliably across an extended temperature range of -65°C to 180°C, making it applicable for demanding conditions in industrial automation, electrical power supplies, and semiconductor switching applications.

Physical dimensions are carefully designed for integration convenience, with length measured at 20.02 mm, width and diameter at 17.35 mm, and height of 22.9 mm. The package supports screw mounting for secure and stable positioning.

With a maximum forward voltage drop of 1.2 V, this diode ensures energy-efficient conduction minimizing thermal losses during operation. While the product does not carry specific standards or automotive approvals, it meets industry expectations for power switching diodes.

Maximum continuous forward current of 85 amperes ensures handling of significant loads. Peak reverse repetitive voltage rating of 800 volts provides circuit protection. Standard recovery switching characteristics improve efficiency in power circuits.

Stud cathode diode configuration facilitates robust electrical connections. Operating temperature range from -65°C to 180°C supports versatility in harsh environments. Compact DO-203AB 2-pin package allows for easy incorporation in electronic designs.

Peak non-repetitive forward surge current of 1.8 kA enables transient overload tolerance. Low forward voltage of 1.2 V reduces conduction losses for high efficiency. Screw mount type enhances mechanical stability during assembly.

This Vishay switching diode is ideal for industrial electronics, power supplies, and semiconductor applications requiring reliable and efficient rectification and switching. Explore more products within the Schottky Diodes & Rectifiers category for complementary solutions in your electronic designs.
