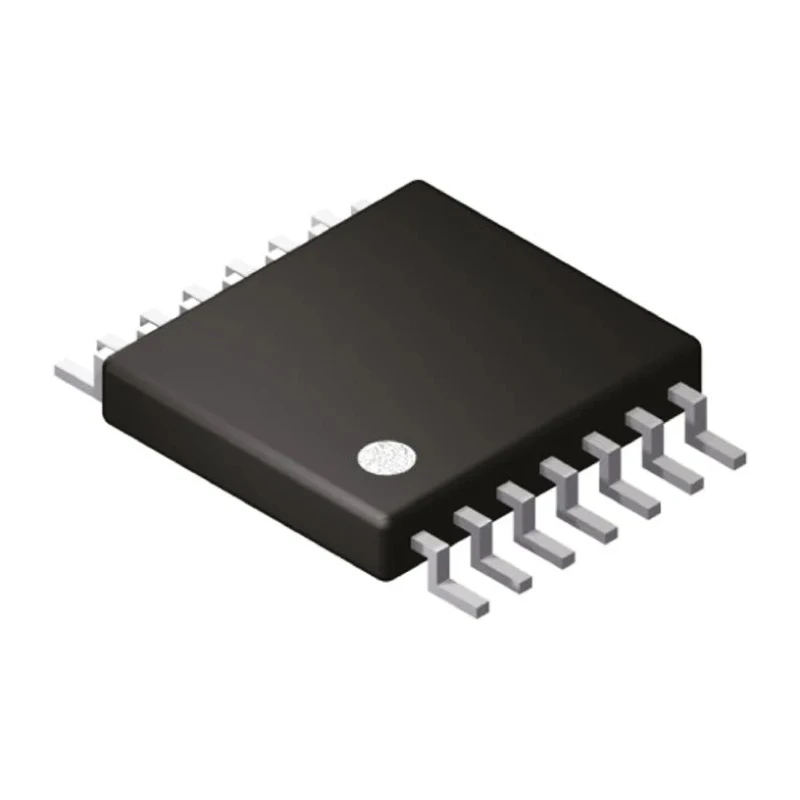

STMicroelectronics Operational Amplifier 1.3 MHz 14-Pin TSSOP 30V LM324PT

STMicroelectronics LM324PT is a low power, quad operational amplifier featuring four independent high gain circuits internally frequency compensated for unity gain. It is designed to operate on a single power supply ranging from +3 V to +30 V, with a recommended range of 5 V to 30 V, providing flexibility in power management.

The device offers a gain bandwidth product of 1.3 MHz, suitable for amplification tasks requiring precision and stability. Its input common-mode voltage range includes ground level, making it a versatile choice for various signal processing applications. The low input offset voltage of 9 mV combined with a low input bias current of 200 nA enhances accuracy and signal fidelity.

The LM324PT package is a compact 14-pin TSSOP surface mount type, with dimensions of 5mm length, 4.4mm width, and 1mm height, facilitating integration in space-constrained PCB designs.

This amplifier features a slew rate of 0.4 V/µs and a maximum output current capability of 70 mA, ensuring efficient response to dynamic input signals and compatibility with various load requirements.

Its operating temperature range of 0°C to 70°C allows deployment in standard industrial environments while complying with RoHS regulations for environmental compliance.

Applications for the LM324PT include signal conditioning, sensor amplification, active filtering, and general-purpose operational amplifier uses in industrial, automotive (non-automotive standard), consumer electronics, and instrumentation sectors.

Quad operational amplifier with four independent circuits in one package. Wide gain bandwidth of 1.3 MHz ideal for precision signal amplification. Operates over a supply voltage range from 5V to 30V. Low input offset voltage of 9 mV for accurate signal processing.

Slew rate of 0.4 V/µs ensures good transient response. Low input bias current of 200 nA minimizes signal distortion. Compact 14-pin TSSOP surface mount package measuring 5mm x 4.4mm x 1mm. Maximum output current of 70 mA supports a variety of load conditions.

Operating temperature range from 0°C to 70°C for standard industrial use. Complies with RoHS standards ensuring environmental safety. Explore more Operational Amplifiers and semiconductor components at EnvMart for robust and efficient electronic circuit designs.
