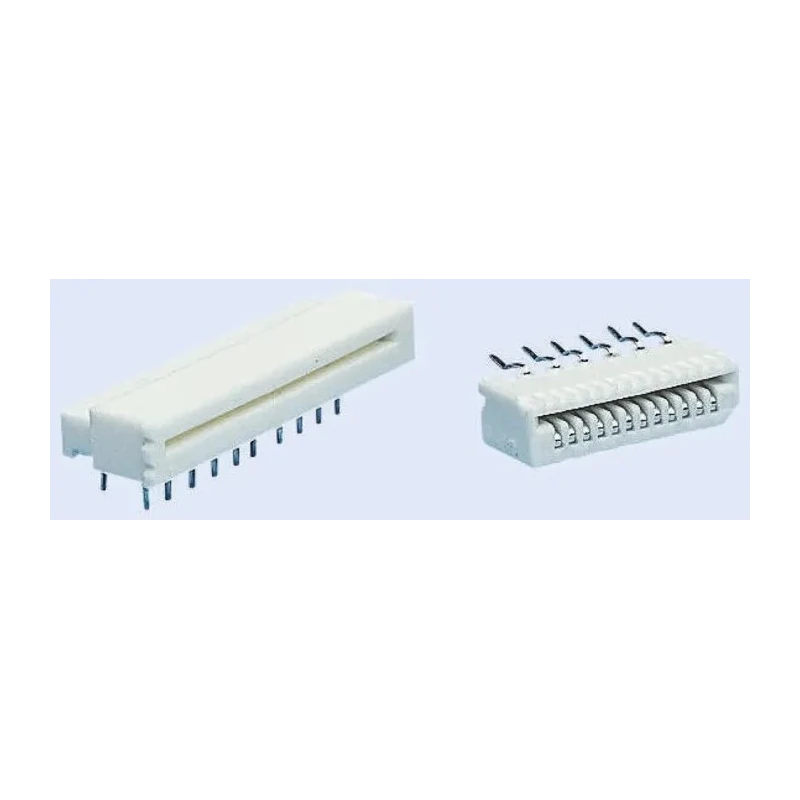

Molex 1.25 mm Pitch 14 Way Straight Female FPC Connector Through Hole Solder Termination 39-53-2145
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- The connector features a Zero Insertion Force (ZIF) mechanism for minimal wear and repeat cycling.
- Made with phosphor bronze contacts plated with tin over nickel for durability and conductivity.
- Rated for 1 Amp current and 200 Volts maximum voltage operation.
- Designed with a slide type actuator and locking mechanism for secure connection.
- Housing material is polyethylene terephthalate offering resistance to mechanical and thermal stress.
- Operating temperature range is from -20°C to 80°C, suitable for robust electronic applications.
- This connector is ideal for automotive and tight packaging uses requiring compact and reliable FPC connections.
Product Description
Molex 39-53-2145 is a 1.25 mm pitch, 14 way straight female FPC connector designed for through hole mounting and solder termination. It provides a space-saving, secure solution ideal for electronic applications including automotive electronics where compactness and reliability are critical.
The connector uses a ZIF (Zero Insertion Force) mechanism which allows repeatable insertion cycles with minimal contact wear. The slide type actuator further enhances ease of use while ensuring a firm hold between the FPC and the connector terminals.
Manufactured with phosphor bronze contacts plated with tin over nickel, it delivers excellent electrical performance and durability. The polyethylene terephthalate housing supports operational stability across a temperature range of -20°C to 80°C and withstands mechanical stress typical in harsh environments.
Rated for a current of 1 Amp and voltage of 200 Volts, this connector supports robust electrical performance within defined limits. Its locking mechanism guarantees secure retention of mating components, reducing disconnections during operational vibrations or shocks.
This 5597 series FPC connector is tailored for tight packaging electronic assemblies, making it ideal for automotive and industrial equipment where space saving and reliable interconnections are paramount.
The connector design facilitates easy insertion and removal of flat flexible cables. The staggered solder tails support improved solder joint reliability on PCB through hole footprint. The product is compliant with industrial quality standards but carries no specialized approvals.
The single row 14 contacts arrangement suits multi-line flexible cables requiring stable electrical connectivity. It belongs to the broader category of FPC Connectors widely utilized in power and signal transmission applications.
Explore the extensive range of Molex connectors at EnvMart for professional electronic assembly requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 1.25 mm pitch and has 14 contacts.
It is rated for a maximum voltage of 200 Volts and a current of 1 Amp.
This connector is designed for through hole mounting.
It operates within a temperature range of -20°C to 80°C.
It features a Zero Insertion Force (ZIF) mechanism, allowing for minimal wear during repeat cycling.
This connector uses solder termination.
The contacts are made of phosphor bronze and are plated with tin over nickel for improved conductivity.
Yes, it is designed with a locking mechanism to ensure secure connections and reduce disconnections during vibrations or shocks.
This connector is part of the 5597 series.
The connector has a straight orientation.
It is ideal for automotive and tight packaging uses requiring compact and reliable FPC connections.
