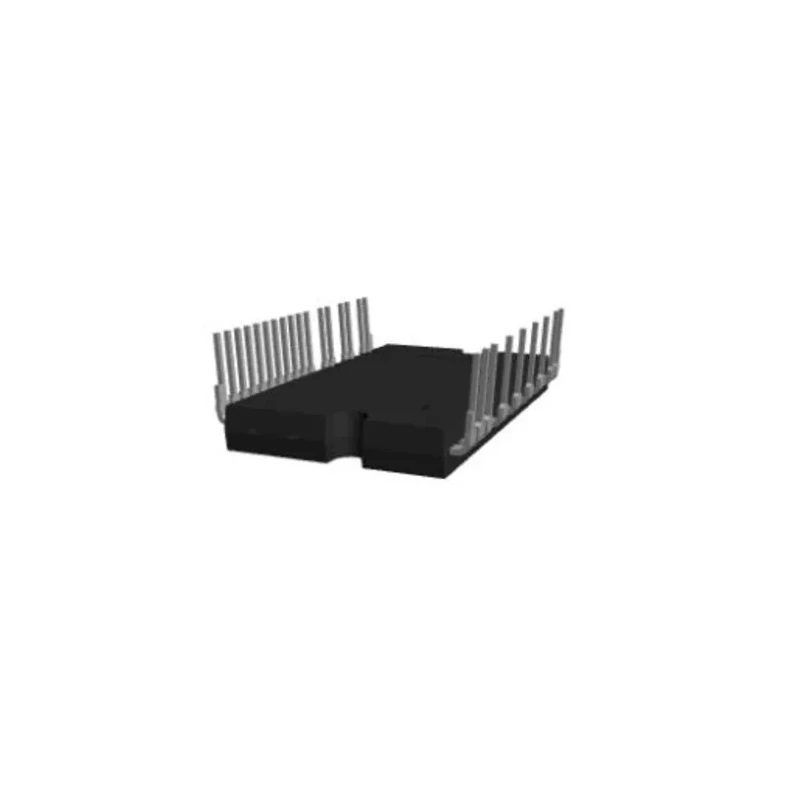

onsemi AC Induction, DC Motor Motor Driver IC 600 V 60 A 26-Pin Through Hole SPMAA-J FND43060T2

onsemi FND43060T2 is an advanced Motor Driver IC designed for AC Induction and DC motor applications. Featuring a 600 V maximum collector-emitter voltage and 60 A maximum IGBT collector current, this device supports 3-phase motor configurations for efficient control in low-power inverter solutions, such as air conditioners and industrial equipment.

The module integrates low-loss short-circuit rated IGBTs combined with optimized gate drivers within a fully isolated, through-hole SPMAA-J package. This compact design allows enhanced thermal performance via a ceramic substrate and simplifies PCB layout using built-in bootstrap diodes and dedicated VS pins.

System reliability is improved by the inclusion of a built-in NTC thermistor for temperature monitoring, under-voltage lock-out functionality on both high and low sides, and over-current protection input. Separate open-emitter pins for low-side IGBTs allow three-leg current sensing capability, enhancing motor control precision.

Key electrical characteristics include typical switching frequency of 20 kHz and supply current of 4 mA, operating safely within -40°C to 150°C temperature range. The device supports supply voltages from -0.3 V minimum to 400 V maximum, making it flexible for various motion control applications.

This Motor Driver IC is ideal for industrial, HVAC, home appliance, and manufacturing sectors where reliable and efficient motor control is essential. Its high voltage and current rating alongside integrated protections provide robust operating conditions.

This motor driver IC utilizes 3-phase configuration for precise motor control. It features low-loss, short-circuit rated IGBTs with built-in bootstrap diodes to simplify PCB layout. The integrated NTC thermistor allows for accurate temperature monitoring.

Built-in under-voltage lock-out and over-current protection ensure system reliability. Pin count is 26 with a through-hole mount package type SPMAA-J. Typical switching frequency is 20 kHz for efficient operation. Operating temperature range spans from -40°C to 150°C.

Supply voltage ranges between -0.3 V minimum and 400 V maximum. Ideal for low-power applications such as air conditioners and industrial inverters. Designed to enhance system reliability and performance in motion control scenarios.
