onsemi Bridge Rectifier, 800 V Peak Reverse Voltage, 400 A Surge Current, 4-Pin Through Hole GBPC3508W

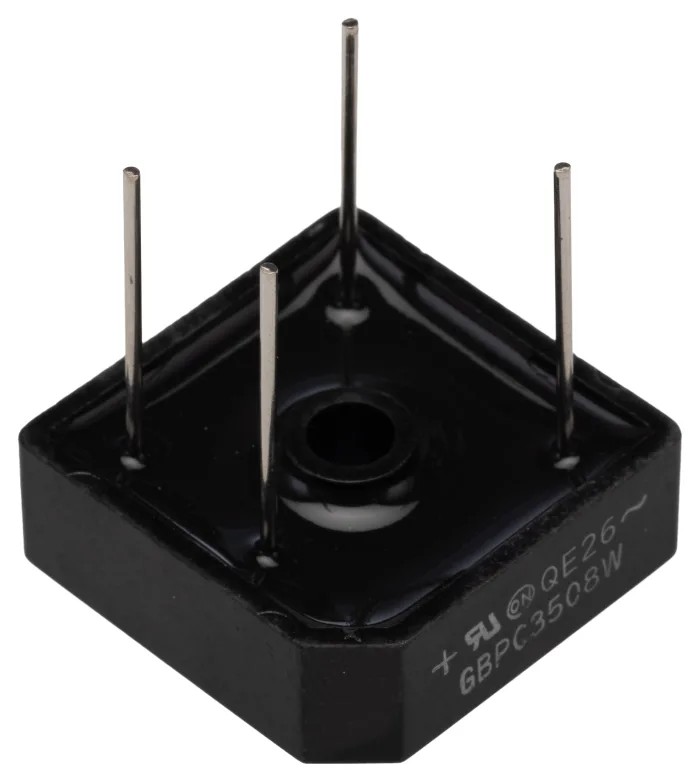

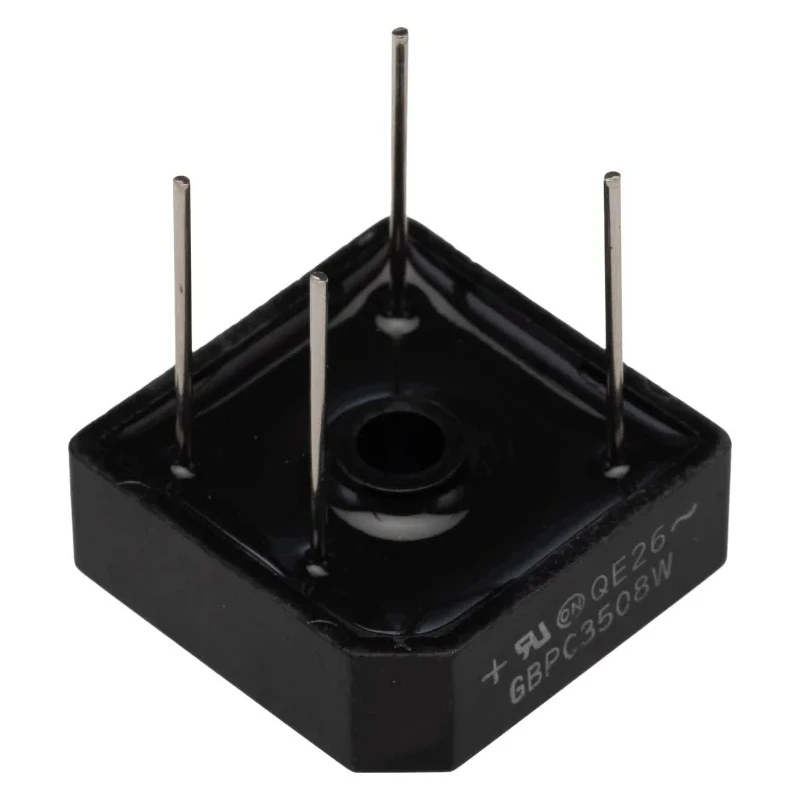

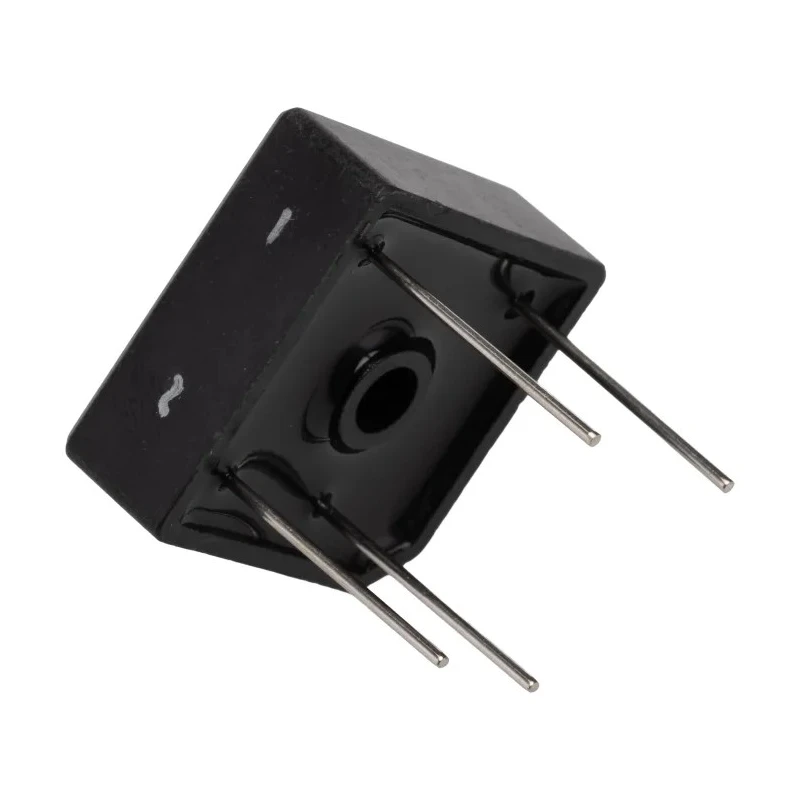

onsemi GBPC3508W Bridge Rectifier is a single-phase, 4-pin device designed for rectifying AC to DC with a peak reverse repetitive voltage rating of 800 V. It supports a forward continuous current of 35 A and can withstand peak non-repetitive forward surge currents of up to 400 A. This device is housed in a compact GBPC package optimized for through-hole mounting, facilitating integration into various electronic power conversion applications.

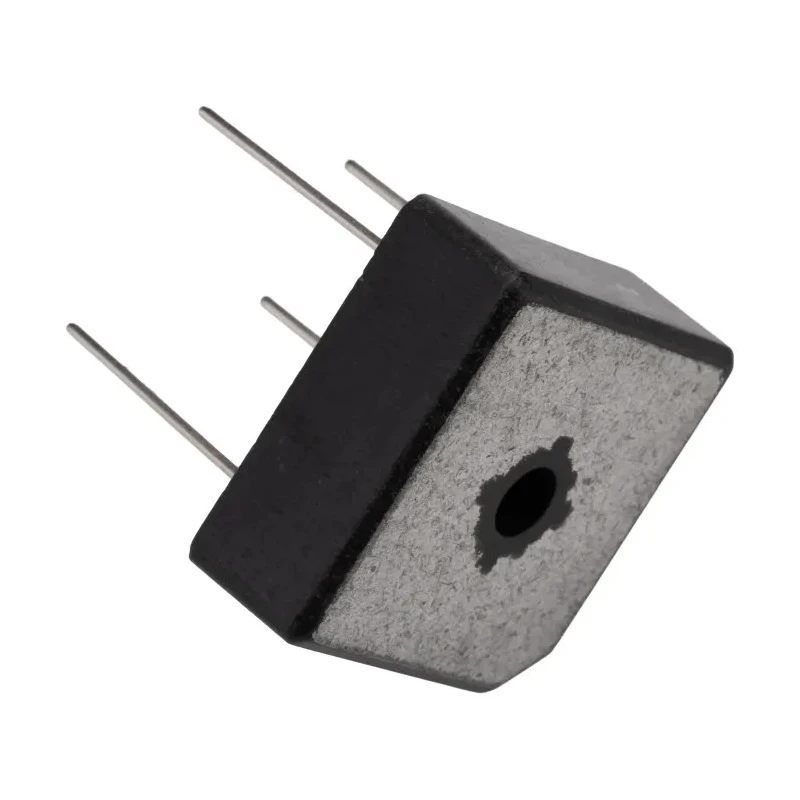

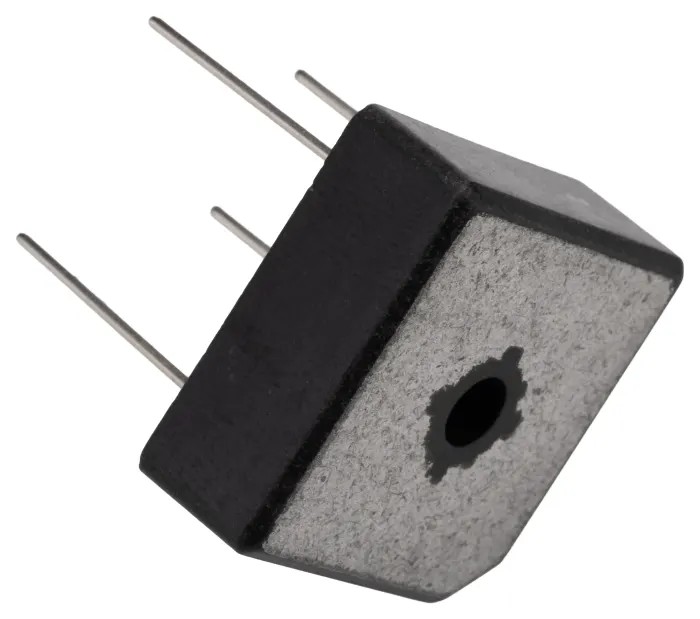

The GBPC3508W features an integrally molded heatsink that provides very low thermal resistance, allowing for superior heat dissipation during operation and enhancing device reliability. The silver finish on the terminals ensures excellent solderability and mechanical strength under repeated thermal cycling. The device operates reliably in a wide temperature range from -55°C to 150°C, suitable for industrial, laboratory, and HVAC power supply designs.

Key functional benefits of the onsemi GBPC3508W include its isolated voltage capability between the case and lead exceeding 2500 V, contributing to user safety and device durability. The low peak forward voltage of 1.1 V allows efficient power conversion with minimal losses. Its compact size - 29 mm length, 29 mm width, and 11.23 mm height - makes it suitable for space-constrained circuit boards.

Single-phase bridge rectifier suitable for power supply and converter circuits. Robust thermal characteristics with integral heatsink facilitate high performance. Silver-plated terminals provide solderability and reliability in connections.

Operating temperature span from -55°C to 150°C supports diverse industrial environments. Peak surge capability up to 400 A ensures durability under transient loads. Isolated voltage of >2500 V ensures operational safety and insulation.

Compact package size allows easy PCB layout and assembly. Low forward voltage drop improves efficiency in power conversion. Widely applicable in industrial, commercial electronics, industrial automation, and laboratory power supplies.

This onsemi Bridge Rectifier is ideal for use in industrial power electronics, HVAC systems, manufacturing equipment, and laboratory instrumentation where reliable power conversion and thermal stability are essential. Its thorough technical design ensures durability, safe operation, and cost-effectiveness in demanding applications.
