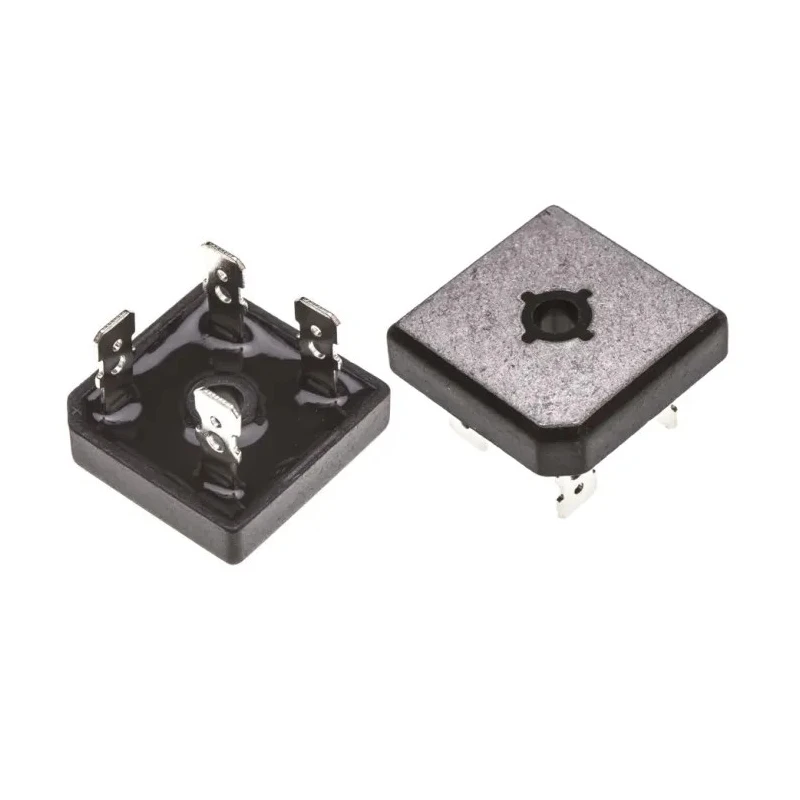

onsemi Bridge Rectifier, Through Hole Mount, 4-Pin Single Configuration, 1000 V VRRM, 300 A Peak Surge Current GBPC2510

Free Delivery in India | Lowest Global Shipping Charges

onsemi Bridge Rectifier, Through Hole Mount, 4-Pin Single Configuration, 1000 V VRRM, 300 A Peak Surge Current GBPC2510

Name: onsemi Bridge Rectifier, Through Hole Mount, 4-Pin Single Configuration, 1000 V VRRM, 300 A Peak Surge Current GBPC2510
Brand: onsemi
SKU: 157628
Price: 5.21 USD
Availability: InStock



Category Bridge Rectifier Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	11.23mm
Length	29mm
Model	GBPC2510
Width	29mm
Mount Type	Through Hole
Series	GBPC25
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBPC
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	500μA
Peak Non-Repetitive Forward Surge Current Ifsm	300A
Forward Current If	25A
Peak Forward Voltage Vf	1.1V
GBPC2510	25 A Bridge Rectifer

Key Features

Supports peak reverse repetitive voltage of 1000 V.
Rated forward current of 25 A for continuous operation.
Operates in temperatures ranging from -55°C to 150°C.
Incorporates a GBPC package type with integrally molded heatsink for low thermal resistance.
Silver finish terminals ensure excellent solderability and durability.
Peak forward voltage is 1.1 V, minimizing power losses.
Pin count of 4 allows easy mounting and connection.
Suitable for single-phase power rectification applications.

Product Description

onsemi GBPC2510 Bridge Rectifier is a high-performance discrete semiconductor device designed for efficient AC to DC conversion in industrial and electronic power applications. Featuring a 4-pin single configuration with through hole mount type, this bridge rectifier manages peak reverse repetitive voltage of 1000 V and can handle a forward current of 25 A, supporting surge currents up to 300 A for handling occasional peak loads.

The device is built with a GBPC package that includes an integrally molded heatsink, offering very low thermal resistance and effective heat dissipation during high power operation. Its terminals feature a silver finish that ensures reliable soldering, contributing to durable electrical connectivity.

With dimensions of 29 mm length, 29 mm width, and 11.23 mm height, the GBPC2510 is compact and suitable for various PCB and power converter board designs. It operates over a wide temperature range from -55°C to 150°C, making it suitable for demanding industrial environments.

This bridge rectifier provides a peak forward voltage drop of just 1.1 V at rated current, enhancing overall system efficiency while maintaining minimal heat generation. The package and terminal design ensure easy integration into through hole mounting circuits, facilitating maintenance and replacement.

Supports peak reverse repetitive voltage of 1000 V. Rated forward current of 25 A ensures continuous operation under load. Designed for temperatures from -55°C to 150°C. Mount Type: Through Hole for robust mechanical and electrical connection.

Package Type: GBPC, featuring an integrally molded heatsink for heat management. Peak non-repetitive forward surge current of 300 A. Silver-finished terminals allow for solderability and longevity.

This product is widely used in electronic components, power supplies, and industrial power rectification applications. Its sturdy construction and reliable performance make it applicable for general usage across multiple sectors, including industrial machinery, power management systems, and laboratory equipment.
