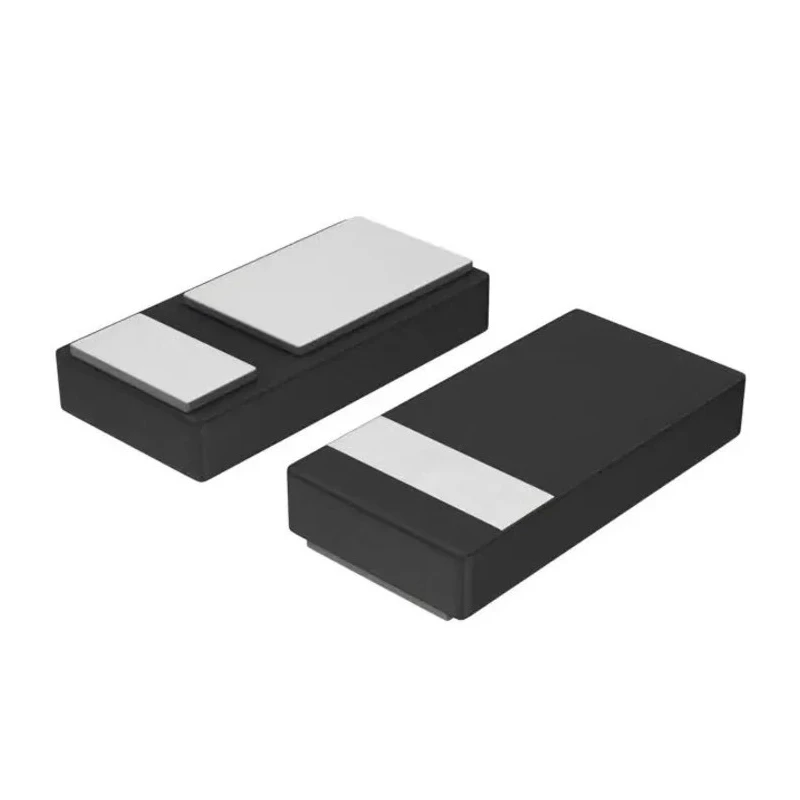

onsemi 20 V 500 mA Surface Mount Schottky Barrier Diode DSN0402 NSR05F20NXT5G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.26mm |
| Length | 1.4mm |
| Model | NSR05F20NXT5G |
| Width | 0.6mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DSN0402 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | Pb-Free, RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 500mA |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | -15μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 10A |
| Maximum Forward Voltage Vf | 390mV |
Key Features
- The diode features a low forward voltage drop for higher efficiency.
- Optimized for low leakage current to minimize power losses.
- The device supports a maximum continuous forward current of 500 mA.
- Peak reverse repetitive voltage rating is 20 V, ensuring reliable reverse voltage protection.
- Peak non-repetitive forward surge current capacity of 10 A.
- Operating temperature range from -40°C to 150°C supports harsh environments.
- Compact footprint with dimensions 1.4 mm length x 0.6 mm width x 0.26 mm height.
- Compliant with Pb-Free and RoHS standards for environmental safety.
Product Description
onsemi NSR05F20NXT5G is a Schottky Barrier Diode specifically engineered for efficient switching applications with a maximum forward current of 500 mA and a reverse voltage rating of 20 V.
This device is housed in a compact DSN0402 surface mount package, measuring 1.4 mm x 0.6 mm x 0.26 mm, making it suitable for designs with minimal PCB space.
It offers very low forward voltage drop (typically 390 mV) and minimal reverse leakage current (peak reverse current -15 μA), contributing to increased circuit efficiency and lower power dissipation.
The diode supports a peak non-repetitive forward surge current of up to 10 A, ensuring robustness under transient conditions.
Operating over a temperature range of -40°C to 150°C, this diode is ideal for industrial, consumer electronics, portable, and automotive applications requiring reliable protection against reverse voltages and current flow.
The low forward voltage drop reduces heat generation in power-sensitive circuits. Minimal leakage current ensures stable performance in standby modes. Compact surface mount package facilitates automated assembly and compact product designs.
Environmentally compliant with Pb-Free and RoHS directives, supporting sustainable manufacturing. Excellent choice for reverse voltage and current protection in portable and consumer electronics. This Schottky diode is a key component in power management, switching power supplies, and other semiconductor-based circuits where efficiency and space are crucial.
Explore more semiconductor products and electronic components at EnvMart to find suitable solutions for your industrial and manufacturing applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 500 mA.
The peak reverse repetitive voltage rating is 20 V.
The dimensions of the DSN0402 package are 1.4 mm in length, 0.6 mm in width, and 0.26 mm in height.
The operating temperature range is from -40°C to 150°C.
The peak non-repetitive forward surge current capacity is 10 A.
The typical forward voltage drop is 390 mV.
This diode is compliant with Pb-Free and RoHS standards.
This model has a pin count of 2.
It is a Schottky barrier diode.
The peak reverse current is -15 μA.
This diode is suitable for industrial, consumer electronics, portable, and automotive applications requiring reliable protection against reverse voltages.
This model uses a surface mount type.
