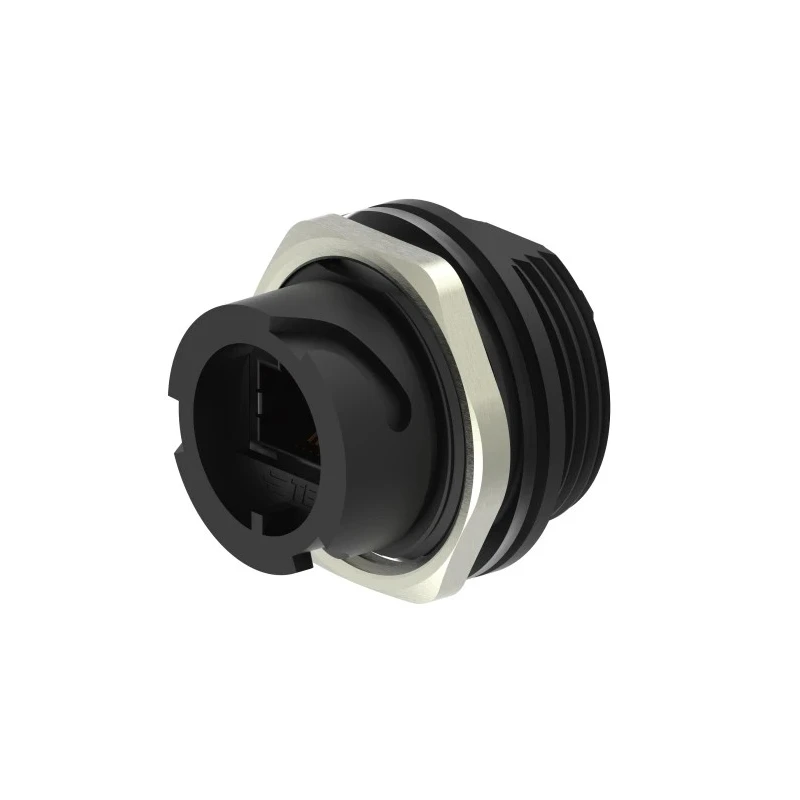

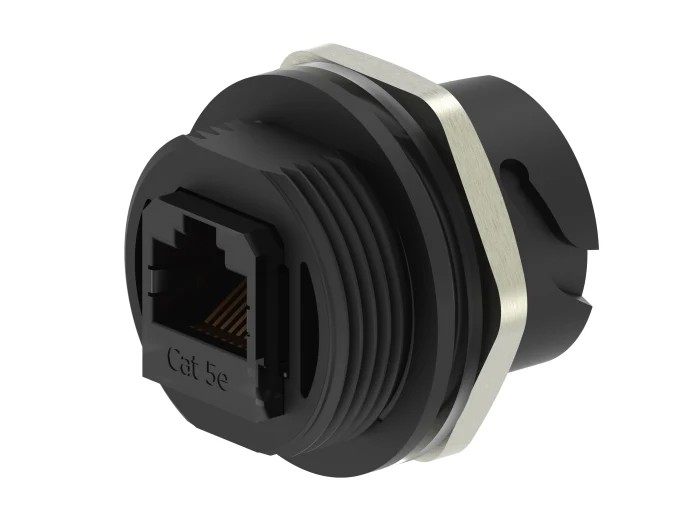

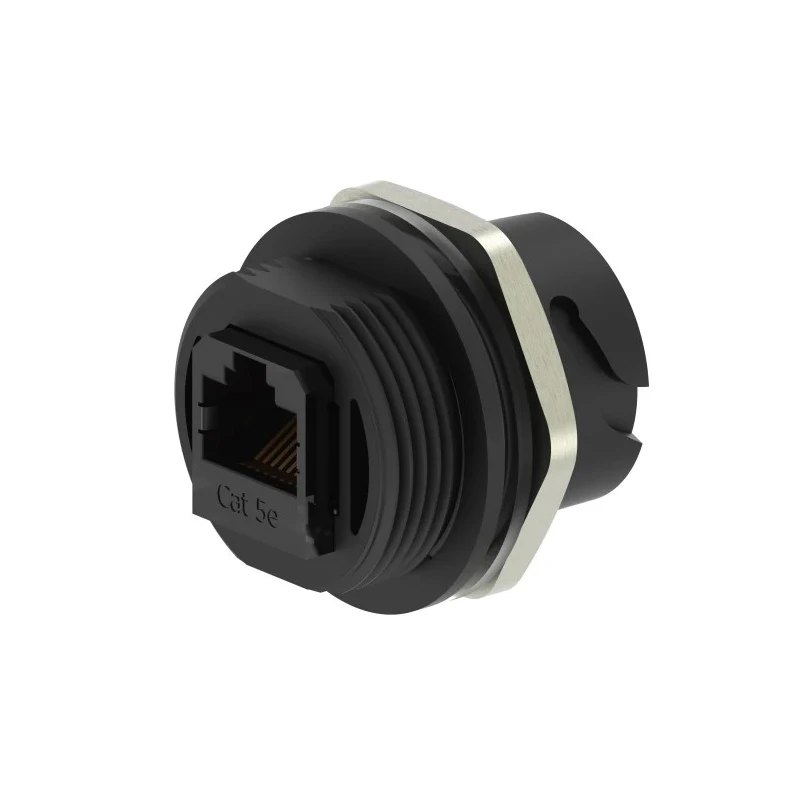

TE Connectivity 2355443 Series RJ45 Connector Female Panel Mount Cat5e Shielded IP67 RJ45
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | RJ45 |
| IP Rating | IP67 |
| Connector Type | Circular Connector |
| Mount Type | Panel Mount |
| Contact Material | Phosphor Bronze |
| Series | 2355443 |
| Number Of Ports | 1 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Shielded |
| Standards/Approvals | EIA/TIA-568-B.2 Cat.5e Specification, RoHS, UL |
| Contact Plating | Gold over Nickel |
| Connector Gender | Female |
| LAN Category | Cat5e |
| Ethernet Connector Type | RJ45 |
Key Features
- The connector supports 1 port with circular connector type.
- Designed for harsh environments with double-bayonet locking for reliable sealing.
- Constructed from flame-resistant glass reinforced PBT or die-cast nickel-plated zinc housing.
- Phosphor bronze contacts plated with gold over nickel ensure signal integrity.
- Operating temperature range from -40°C to 85°C supports demanding conditions.
- Complies with EIA/TIA-568-B.2 Cat.5e standard and RoHS and UL certifications.
- Offers panel mount flexibility with bulkhead receptacle design.
- Resistance to chemicals and UV radiation ensures durability in industrial use.
Product Description
TE Connectivity 2355443-2 Series RJ45 Connector is a female, panel mount Ethernet connector designed for robust industrial and telecom applications. It features shielded Cat5e-rated RJ45 connectivity with a single port, ensuring secure and high-quality data transmission. The connector's double-bayonet locking mechanism delivers IP67-rated protection, making it suitable for harsh environments requiring resistance to dust and water ingress.
The rugged housing options include flame-resistant, glass reinforced PBT or die-cast nickel-plated zinc, both providing outstanding chemical and UV resistance. Contacts are made from phosphor bronze and plated with gold over nickel for excellent conductivity and corrosion resistance. This connector operates reliably within a temperature range of -40°C to 85°C, making it ideal for industrial, networking, telecommunications, and outdoor applications.
The panel mount design allows for flexible installation either inside or outside panel cut-outs, providing ease of integration into existing systems or new equipment. With compliance to EIA/TIA-568-B.2 Cat.5e specifications and RoHS and UL standards, it ensures both performance and regulatory adherence.
This connector is commonly used in industrial environments, manufacturing facilities, network infrastructures, outdoor telecom equipment, and other applications demanding rugged Ethernet connectivity solutions.
The connector supports 1 port with circular connector type. Designed for harsh environments with double-bayonet locking for reliable sealing. Constructed from flame-resistant glass reinforced PBT or die-cast nickel-plated zinc housing.
Phosphor bronze contacts plated with gold over nickel ensure signal integrity. Operating temperature range from -40°C to 85°C supports demanding conditions. Complies with EIA/TIA-568-B.2 Cat.5e standard and RoHS and UL certifications.
Offers panel mount flexibility with bulkhead receptacle design. Resistance to chemicals and UV radiation ensures durability in industrial use. Explore more in our Ethernet Connectors category to find compatible and complementary products for your networking requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This RJ45 connector has an IP67 rating, providing protection against dust and water ingress, making it suitable for harsh environments.
It is constructed from flame-resistant glass reinforced PBT or die-cast nickel-plated zinc housing, ensuring resistance to chemicals and UV radiation.
The connector operates within a temperature range of -40°C to 85°C, suitable for demanding conditions.
This model supports 1 port with a circular connector type.
The contacts are made from phosphor bronze and are plated with gold over nickel to ensure signal integrity and corrosion resistance.
Yes, it complies with the EIA/TIA-568-B.2 Cat.5e specification, as well as RoHS and UL certifications.
This connector features a panel mount design, allowing for flexible installation in panel cut-outs.
The connector is shielded, which helps to reduce electromagnetic interference and ensures reliable data transmission.
It is commonly used in industrial environments, manufacturing facilities, network infrastructures, and outdoor telecom equipment requiring rugged Ethernet connectivity.
This model is a female connector, designed for panel mount applications.
The double-bayonet locking mechanism provides reliable sealing, enhancing the connector's performance in harsh environments by preventing accidental disconnections.
The connector is manufactured in India.
