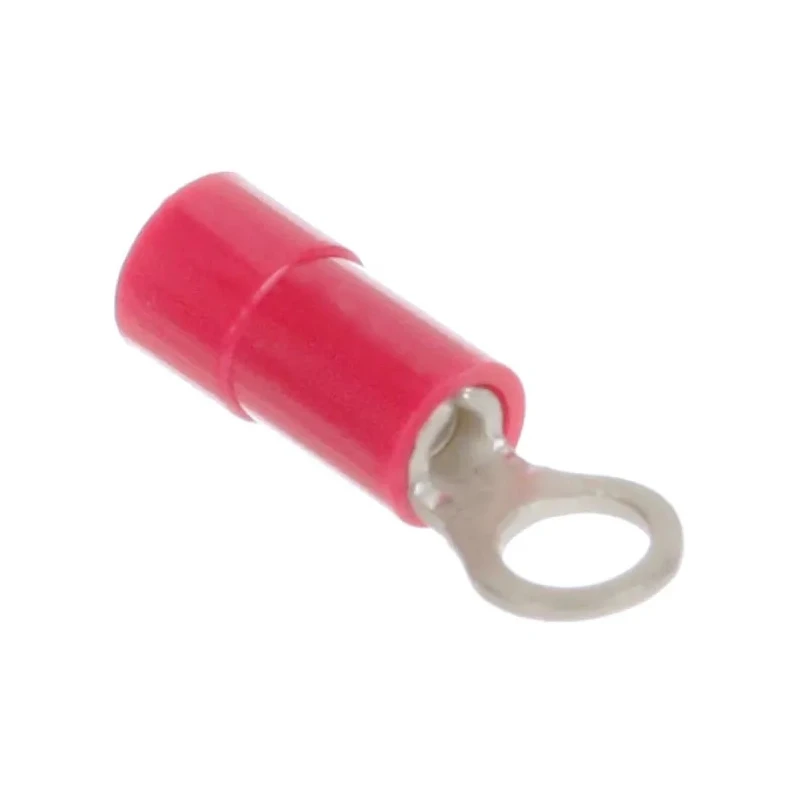

Molex Insulated Ring Terminal M3.5 Stud Size 22 AWG to 18 AWG Wire Size Red 19070-0009
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Colour | Red |
| THICKNESS | 0.71mm |
| Insulation | Insulated |
| Overall Length | 18.01mm |
| Contact Material | Copper |
| Series | 19070 |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Polyvinyl Chloride |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.35mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Outer Ring Diameter | 6mm |
| Inner Ring Diameter | 3.71mm |
| Stud Size | M3.5 |
Key Features
- Features insulation made of durable polyvinyl chloride for reliable electrical insulation.
- Constructed with copper contact material plated with tin for excellent conductivity and corrosion resistance.
- The outer ring diameter measures 6 mm; the inner ring diameter is precisely 3.71 mm.
- Overall length of the terminal is 18.01 mm making it compact and easy to install.
- Suitable for operating temperatures up to 105°C ensuring performance under high temperature conditions.
- Thickness of the terminal is 0.71 mm providing robust mechanical strength.
- Compatible with wire cross-sections from 0.35 mm² (22 AWG) to 0.8 mm² (18 AWG).
- Color-coded red for easy identification in wiring assemblies.
Product Description
Molex 19070-0009 is an insulated ring terminal designed to connect wires with M3.5 stud size efficiently. It supports wire sizes ranging from 22 AWG to 18 AWG, making it versatile for various electronic and electrical applications.
The ring terminal features insulation crafted from polyvinyl chloride, which ensures excellent electrical insulation and safety. Its copper contact material, plated with tin, provides superior electrical conductivity and resistance to corrosion, essential for robust connections.
With an outer ring diameter of 6 mm and an inner diameter of 3.71 mm, the terminal fits securely onto studs sized M3.5. The overall length of 18.01 mm allows for compact installation in confined spaces.
The terminal’s thickness of 0.71 mm enhances mechanical strength, reducing the risk of damage during installation or operation. It is rated for a maximum operating temperature of 105°C, suitable for demanding industrial and commercial environments.
Applications for this Ring Terminal span across electronic component assemblies, power connectors, and wire terminal splices commonly used in industrial automation, manufacturing, and electrical wiring tasks. The red color coding aids in identification and organization of wiring harnesses.
Insulated with polyvinyl chloride for electrical safety. Copper contact with tin plating for conductivity and durability. Dimensions precisely engineered for M3.5 stud compatibility. Compact design with 18.01 mm overall length.
Operates reliably up to 105°C temperature. Suits wire sizes 22 AWG to 18 AWG (0.35 mm² to 0.8 mm²). Color coded red for easy wiring identification. Explore our Electronics & Electricals category for more high-quality wire terminals and splices suitable for your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this insulated ring terminal is 105°C, making it suitable for demanding industrial and commercial environments.
This terminal is compatible with wire sizes ranging from 22 AWG (0.35 mm²) to 18 AWG (0.8 mm²).
The outer ring diameter measures 6 mm, while the inner ring diameter is 3.71 mm. The overall length of the terminal is 18.01 mm.
The contact material of this terminal is copper, which is plated with tin to enhance conductivity and corrosion resistance.
The terminal features insulation made of polyvinyl chloride, providing reliable electrical insulation.
The thickness of this ring terminal is 0.71 mm, providing robust mechanical strength during installation and operation.
This insulated ring terminal is designed for an M3.5 stud size, ensuring a secure fit.
The terminal is color-coded red for easy identification in wiring assemblies, aiding in organization.
This terminal is suitable for applications such as electronic component assemblies, power connectors, and wire terminal splices in industrial automation and electrical wiring tasks.
This ring terminal is manufactured in the United States.
This terminal belongs to the Molex 19070 series.
Key features include insulation made of polyvinyl chloride, a copper contact material plated with tin, and compatibility with wire sizes from 22 AWG to 18 AWG.
