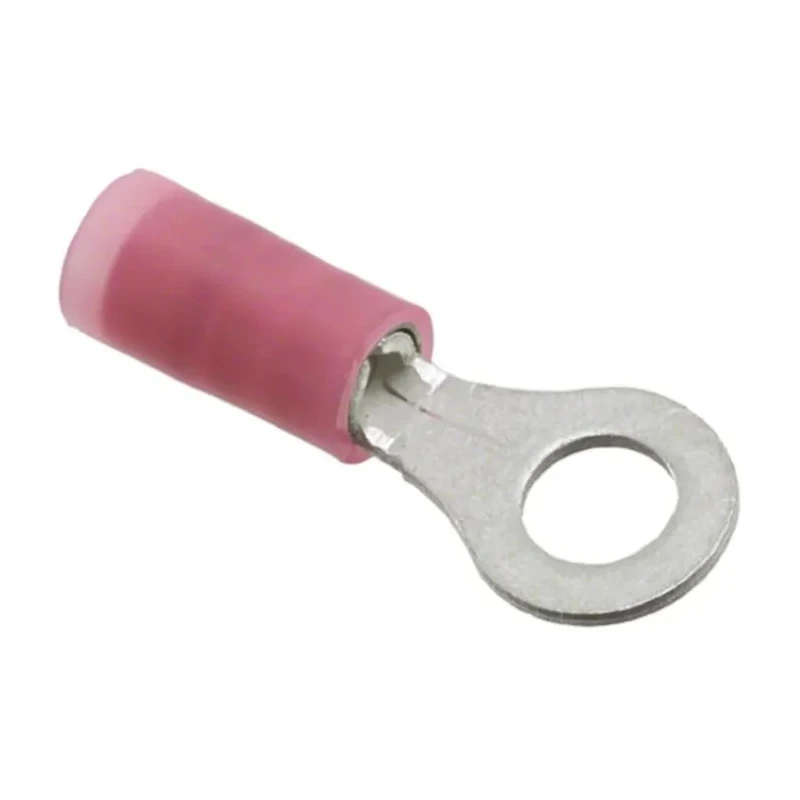

Molex Avikrimp Insulated Ring Terminal M4 Stud Size 22 AWG - 18 AWG Wire Size Red 19324-0004

Molex 19324-0004 Avikrimp insulated ring terminal is engineered for high-performance wire connections in electronic and electrical applications. The ring terminal is designed with an M4 stud size and supports wire gauges from 22 AWG to 18 AWG, fitting wire cross-sections from 0.5mm² up to 1mm². The terminal features a durable copper alloy contact material plated with tin, ensuring excellent electrical conductivity and corrosion resistance. Polyamide insulation in red color provides high electrical insulation and mechanical protection.

The seamless barrel design facilitates easier crimping by allowing the barrel to rotate within the crimping jaws, enhancing installation efficiency. The terminal operates reliably within a temperature range of -55°C to 105°C, making it suitable for diverse industrial, automotive, and electronic manufacturing environments.

Technical details include an outer ring diameter of 7.92mm, inner ring diameter of 4.39mm, an overall length of 18.1mm, and a thickness of 0.71mm. This ring terminal is compliant with standard industrial requirements, though it currently has no certification approvals listed.

Molex Avikrimp ring terminals are commonly used in power connectors, wire splicing, and electrical control panels. The red insulated variant aids quick visual identification and system organization. This product originates from the United States, ensuring quality manufacturing standards.

Constructed from copper alloy with tin plating for reliable conductivity. Seamless barrel enables easier, more reliable crimping. Red polyamide insulation provides electrical and mechanical protection. Supports wire gauges from 22 AWG to 18 AWG (0.5mm² to 1mm²).

Operating temperature range from -55°C to 105°C. Dimensioned for M4 stud size applications. No certification approvals currently listed.

For buyers in electronic components, power connectors, and wire termination sectors, the Molex 19324-0004 Avikrimp insulated ring terminal is a reliable choice. Discover more products in the Ring Terminal category at EnvMart for your industrial and laboratory needs.
