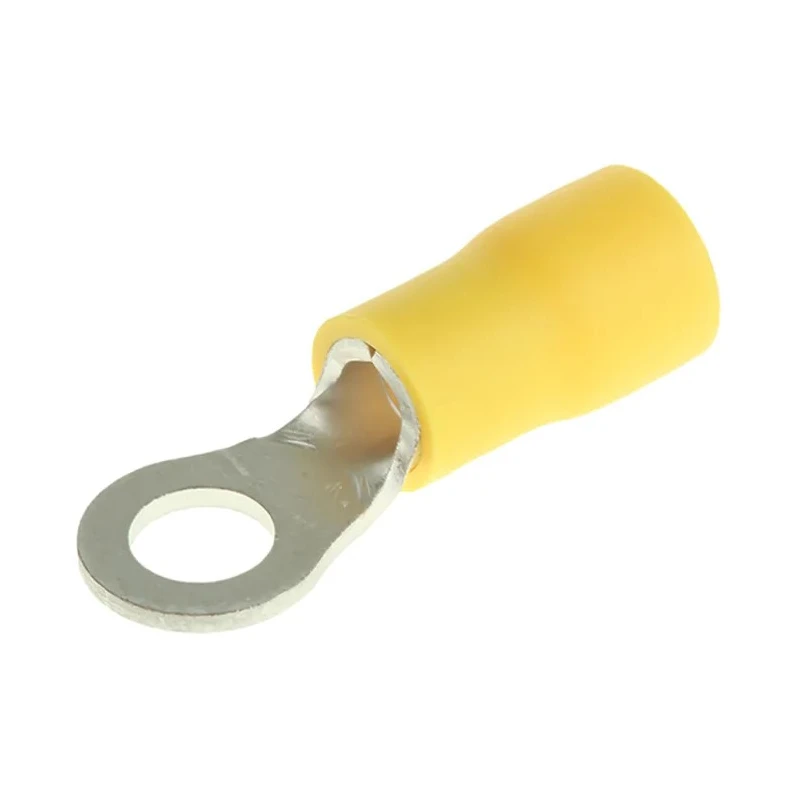

JST FV Insulated Ring Terminal M5 Stud Size 12 AWG to 10 AWG Vinyl Insulation Yellow FVWS5.5-5(LF)
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | JST |
| Colour | Yellow |
| THICKNESS | 1mm |
| Model | FVWS5.5-5(LF) |
| Insulation | Insulated |
| Overall Length | 26.5mm |
| Series | FV |
| Insulation Material | Vinyl |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 9.5mm |
| Inner Ring Diameter | 5.3mm |
| Stud Size | M5 |
Key Features
- Made from oxygen-free copper for excellent electrical conductivity.
- Vinyl insulation provides high flame resistance and durability.
- Outer ring diameter measures 9.5 mm while inner ring diameter is 5.3 mm.
- Overall length of the terminal is 26.5 mm with a thickness of 1 mm.
- Features flared vinyl insulation with a butted seam construction for secure connections.
- Suitable for use in industrial, electronic, and electrical wiring applications.
- High temperature resistance up to 105°C ensures reliability under demanding conditions.
- Manufactured in Japan, ensuring high-quality standards and performance.
Product Description
The JST FVWS5.5-5(LF) insulated ring terminal is a high-quality electrical connector designed for secure and reliable wire termination. It supports M5 stud sizes and accommodates wire sizes from 12 AWG to 10 AWG, making it versatile for various wiring requirements.
Manufactured using oxygen-free copper, this ring terminal ensures excellent electrical conductivity and minimal resistance. The yellow vinyl insulation enhances safety by providing high flame resistance and robust insulation properties, critical in industrial and commercial electrical installations.
With an outer ring diameter of 9.5 mm and an inner ring diameter of 5.3 mm, the terminal offers a precise fit for M5 studs. The overall length of 26.5 mm and thickness of 1 mm contribute to a compact and durable design.
This terminal features a flared vinyl insulation with a butted seam, improving ease of installation and providing stable mechanical strength. It is rated to withstand temperatures up to 105°C, suitable for demanding electrical environments.
Made from oxygen-free copper ensuring excellent conductivity. Vinyl insulation offers flame resistance and durability. Designed for M5 stud size with dimensions of 9.5 mm outer diameter and 5.3 mm inner diameter. Accommodates wire sizes ranging from 12 AWG to 10 AWG.
Flared vinyl insulation with a secure butted seam construction. Resistant to high temperatures up to 105°C. Manufactured in Japan to high quality standards. Ideal for electronic components, power connectors, and wire terminal applications.
This insulated Ring Terminal is well-suited for use in industrial, electrical, electronics, and power connector assemblies where reliable, high-quality connections are required. Its robust construction and insulation make it ideal for environments requiring safety and performance compliance.
Explore a wide range of wire terminals and splices in EnvMart's electronics and electrical components category for all your connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This insulated ring terminal accommodates wire sizes ranging from 12 AWG to 10 AWG.
The outer ring diameter measures 9.5 mm, while the inner ring diameter is 5.3 mm.
The overall length of the terminal is 26.5 mm, and its thickness is 1 mm.
This model is designed for M5 stud sizes, ensuring a secure fit.
It is made from oxygen-free copper, which ensures excellent electrical conductivity.
The terminal features vinyl insulation, which provides high flame resistance and durability.
It is rated to withstand temperatures up to 105°C, suitable for demanding electrical environments.
This terminal is manufactured in Japan, ensuring high-quality standards and performance.
It features flared vinyl insulation with a butted seam construction for secure connections and ease of installation.
It is suitable for use in industrial, electronic, and electrical wiring applications, providing reliable connections.
The insulation material used is vinyl, which enhances safety and insulation properties.
This terminal belongs to the FV series.
