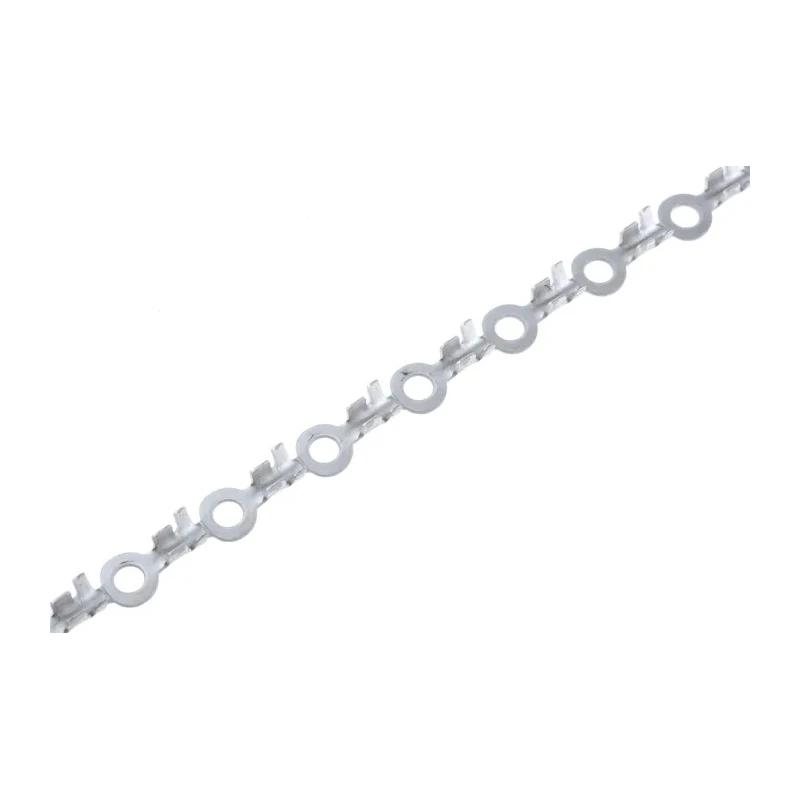

TE Connectivity Uninsulated Ring Terminal M3 Stud Size 20 AWG 16 AWG Wire Size Grey 160344-2

TE Connectivity 160344-2 uninsulated ring terminal is engineered for secure and reliable wire termination in electronic and electrical applications. Designed for use with M3 stud sizes and wire gauges ranging from 20 AWG to 16 AWG, this ring terminal features an uninsulated, open barrel design that allows direct crimping for optimal electrical connectivity.

Constructed from high-quality brass with a tin plating, the terminal offers excellent conductivity and resistance to corrosion, making it suitable for demanding industrial environments. The grey color coding facilitates quick identification during installation and maintenance.

Measuring an inner ring diameter of 3.2mm and an overall length of 11.7mm, the terminal is compact and ideal for tight or space-constrained setups. Its thickness of 0.51mm adds mechanical strength, ensuring durability under vibration and stress.

The terminal accommodates wire sizes from 0.5mm² up to 1.5mm², covering typical wiring needs in electronics, manufacturing, automotive, and HVAC systems. It is rated to operate reliably in temperatures from -40°C to 110°C, supporting a wide range of climates and operational conditions.

The 160344-2 series is part of TE Connectivity’s renowned line of 'F' style ring tongue crimp terminals, recognized for their quality and performance in industrial, laboratory, and manufacturing applications. Its uninsulated design suits environments where insulation is provided externally or not required.

The ring terminal is uninsulated for direct crimping connections. Features a grey color coding for easy identification. Constructed from brass contact material with tin plating for corrosion resistance. Inner ring diameter measures 3.2mm, compatible with M3 studs.

Overall length of the terminal is 11.7mm, optimized for compact applications. The terminal supports wire sizes from 0.5mm² to 1.5mm² in cross-sectional area. Operates reliably within a temperature range of -40°C to 110°C.

Thickness of the terminal is 0.51mm, ensuring durability and strength. It complies with industry standards, though no specific approvals are indicated.

This TE Connectivity ring terminal is widely used in electronics, industrial automation, power distribution, automotive wiring, and HVAC control systems. Its robust construction and precise dimensions guarantee dependable performance and long service life.
