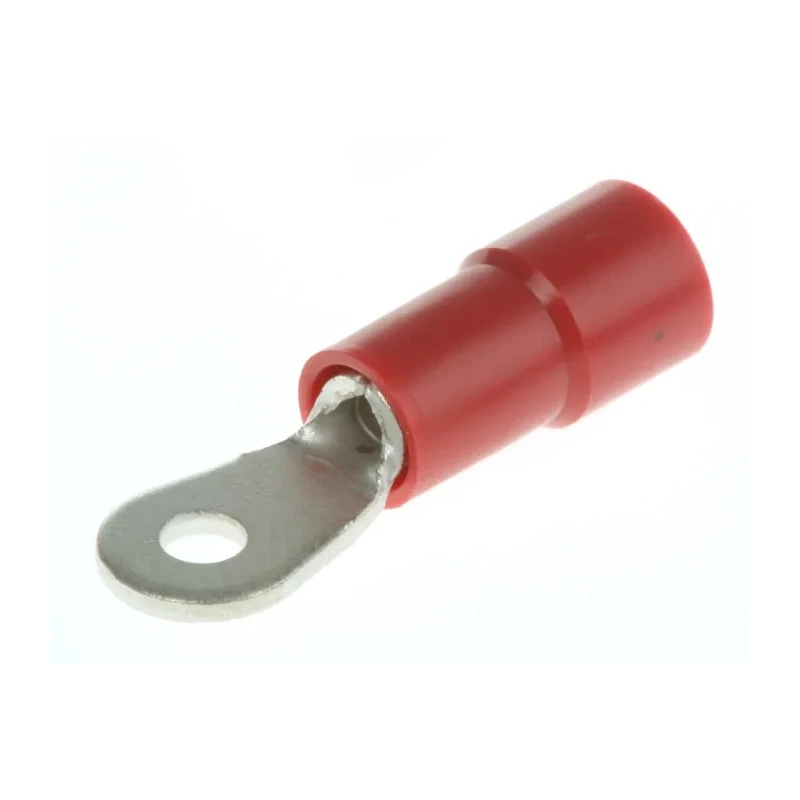

RS PRO Insulated Ring Terminal M2 Stud Size 22 AWG 16 AWG Wire Size Red 613-9205
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| THICKNESS | 0.8mm |
| Model | 613-9205 |
| Insulation | Insulated |
| Overall Length | 20mm |
| Contact Material | Copper |
| Series | RS PRO |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Polyvinyl Chloride |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | ANSI/ESD S20.20:2021 Electrostatic Control Standard, RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 6mm |
| Inner Ring Diameter | 2.2mm |
| Stud Size | M2 |
| Standards/Approvals ANSI/ESD S20.20 | 2021 Electrostatic Control Standard, RoHS |
| Red M2 ring terminal,0.25-1.5sq.mm wireBrand | NEUTRAL |
Key Features
- Constructed from high conductivity copper for excellent electrical performance.
- Tin plating enhances corrosion resistance and service life.
- Red polyvinyl chloride insulation offers electrical protection and easy size identification.
- Suitable for wire sizes ranging from 22 AWG to 16 AWG and M2 stud connection.
- Overall terminal length measures 20 mm with 0.8 mm thickness for durability.
- Operates reliably between -40°C and 105°C for versatile applications.
Product Description
RS PRO model 613-9205 is a high-quality insulated crimp ring terminal designed for electrical connections requiring secure stud attachment. This ring terminal is fabricated from copper with tin plating to ensure maximum conductivity and corrosion resistance. The red vinyl insulation made of polyvinyl chloride protects users and aids quick identification of wire gauge sizes.
With an inner ring diameter of 2.2 mm and an outer ring diameter of 6 mm, this terminal fits M2 studs securely with a wire size accommodation from 22 AWG to 16 AWG (0.5 mm² to 1.5 mm²). The overall length of the terminal is 20 mm with a thickness of 0.8 mm, making it robust yet easy to crimp.
The terminal is ideal for use in industrial control systems, automotive wiring, communication equipment, power supplies, and domestic appliances. It operates effectively within a temperature range of -40°C to 105°C, conforming to ANSI/ESD S20.20 electrostatic standards and RoHS compliance for environmental safety.
High conductivity copper body with tin plating for corrosion resistance. Polyvinyl chloride insulation for electrical protection and durability. Suitable for wire sizes from 22 AWG to 16 AWG and M2 stud size connection. Compact design with 20 mm length and 0.8 mm thickness.
Meets electrostatic discharge and environmental regulations.
This RS PRO insulated Ring Terminal is a reliable choice for precise electrical applications requiring strong mechanical and electrical connections. It is sourced from Taiwan, Province Of China. Explore more electronic connectors in the EnvMart catalog for your industrial and electrical component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates wire sizes ranging from 22 AWG to 16 AWG, or 0.5 mm² to 1.5 mm².
The overall length of the terminal is 20 mm, with a thickness of 0.8 mm. The inner ring diameter is 2.2 mm, and the outer ring diameter is 6 mm.
It is constructed from high conductivity copper with tin plating for enhanced corrosion resistance, and features polyvinyl chloride insulation for electrical protection.
This terminal operates effectively within a temperature range of -40°C to 105°C.
The terminal is designed for M2 stud connections.
It conforms to ANSI/ESD S20.20 electrostatic standards and is RoHS compliant for environmental safety.
The polyvinyl chloride insulation provides electrical protection and aids in quick identification of wire gauge sizes.
The contact material is copper, which ensures excellent electrical performance.
The thickness of this terminal is 0.8 mm.
Yes, it is ideal for use in automotive wiring, as well as industrial control systems and communication equipment.
The terminal is red in color, which helps in size identification.
This insulated ring terminal is sourced from Taiwan, Province Of China.
