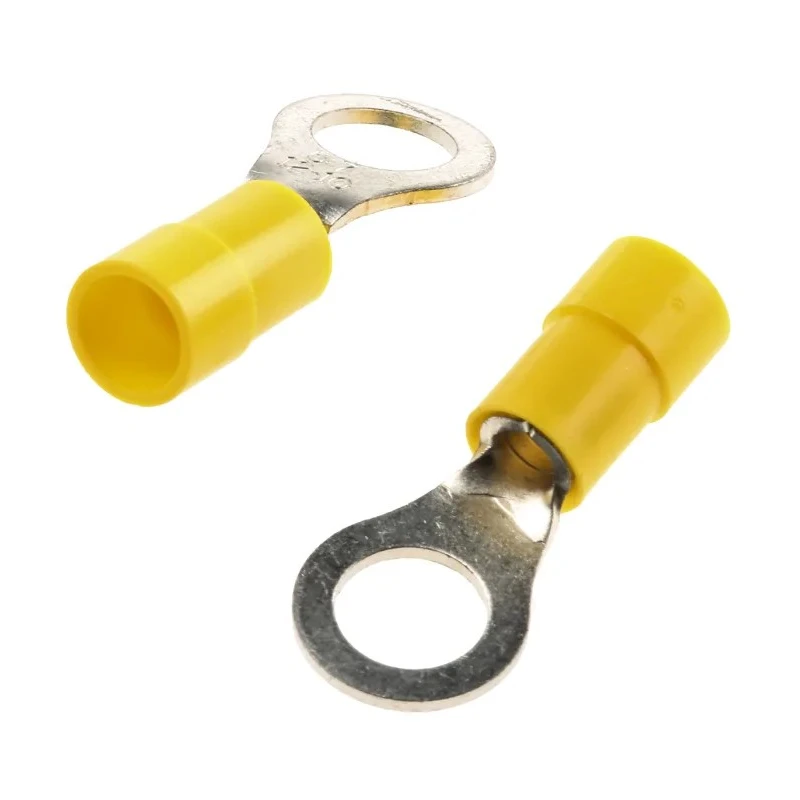

RS PRO Insulated Ring Terminal M7 Stud 12 AWG to 10 AWG Yellow Vinyl 29.5mm 613-9306
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Yellow |
| THICKNESS | 1mm |
| Model | 613-9306 |
| Insulation | Insulated |
| Overall Length | 29.5mm |
| Contact Material | Copper |
| Series | RS PRO |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Vinyl |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 4mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 12mm |
| Inner Ring Diameter | 7.4mm |
| Stud Size | M7 |
| Yellow M7 ring terminal,4-6sq.mm wireBrand | NEUTRAL |
Key Features
- Constructed of copper with tin plating for excellent conductivity and corrosion resistance.
- Vinyl insulation provides electrical protection and quick size identification.
- Suitable for secure electrical connections to studs or posts in various applications.
- Features a 7.4mm inner ring diameter and 12mm outer ring diameter.
- Overall length of 29.5mm ensures ease of installation and reliable crimping.
- Operates effectively from -40°C to 105°C temperature range.
- Typically used in industrial control systems, automotive, power supplies, and domestic appliances.
- Expanded insulation entry allows easy wire insertion.
Product Description
RS PRO 613-9306 Insulated Ring Terminal M7 Stud is a high-quality crimp terminal designed for secure wire-to-stud connections in electrical systems. Featuring copper construction with tin plating, it delivers excellent electrical conductivity and corrosion resistance for reliable performance.
The terminal is insulated with yellow vinyl for added electrical protection and quick identification of wire gauge compatibility. Designed for wire sizes 12 AWG to 10 AWG (4mm² to 6mm²), it includes a 7.4mm inner ring diameter and 12mm outer ring diameter, with an overall length of 29.5mm for convenient handling and installation.
This ring terminal operates effectively within a wide temperature range from -40°C to 105°C, making it suitable for diverse industrial and commercial applications. It offers expanded insulation entry for easy wire insertion and is commonly used in industrial control systems, automotive wiring, communication equipment, power supply connections, and household appliances.
The vinyl insulation provides not only protection but also durability and strength during use. The copper body and tin plating combination ensures added strength and long-lasting electrical performance.
High conductivity copper material with tin plating resists corrosion. Yellow vinyl insulation provides electrical safety and easy size recognition. Designed for M7 stud connections with suitable wire sizes 12 AWG to 10 AWG.
Expanded insulation entry for simplified wire insertion and crimping. Reliable performance across varied temperature environments.
This Ring Terminal accommodates typical industrial and laboratory electrical connection demands, ensuring robust and secure terminals in electronic assemblies and power connections.
Explore the Electronics Components category on EnvMart for compatible wiring accessories and connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates effectively within a temperature range of -40°C to 105°C, making it suitable for various industrial and commercial applications.
It is designed for wire sizes ranging from 12 AWG to 10 AWG, which corresponds to 4mm² to 6mm².
The inner ring diameter is 7.4mm, and the outer ring diameter is 12mm, facilitating secure connections to M7 studs.
The terminal is constructed from copper with tin plating, which provides excellent conductivity and corrosion resistance.
The overall length of this model is 29.5mm, ensuring ease of installation and reliable crimping.
It features yellow vinyl insulation that provides electrical protection and aids in quick size identification.
Common applications include industrial control systems, automotive wiring, power supplies, and domestic appliances.
The insulation thickness is 1mm, providing adequate protection for electrical connections.
The expanded insulation entry allows for easy wire insertion, simplifying the crimping process during installation.
This terminal is designed for M7 stud connections, ensuring compatibility with corresponding studs.
The RS PRO Insulated Ring Terminal is manufactured in Taiwan.
The contact plating is made of tin, which enhances the terminal's resistance to corrosion and improves conductivity.
