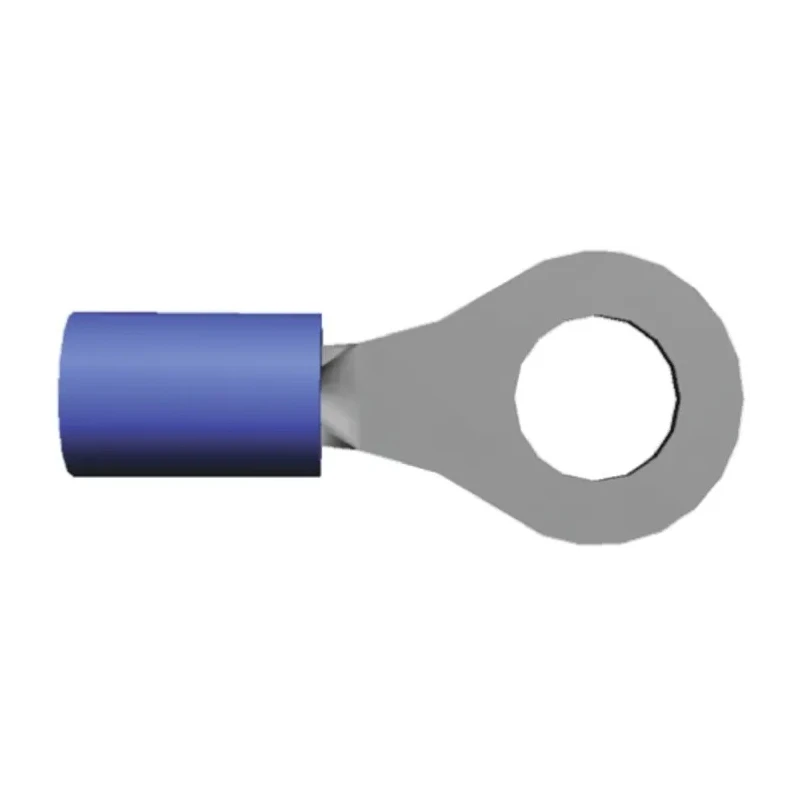

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size, 16 AWG to 14 AWG Wire Size, Blue 321045
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Model | 321045 |
| Insulation | Insulated |
| Overall Length | 27.38mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | M6 |
Key Features
- High conductivity copper body ensuring efficient electrical contact.
- Nylon insulation sleeve in blue color for wire size identification and insulation support.
- Copper sleeve inside barrel prevents wire fraying and improves wire insulation support.
- Serrated wire barrel provides maximum contact and tensile strength after crimping.
- Funnelled wire entry facilitates fast and easy wire insertion during high-speed production.
- Suitable for applications requiring up to 105°C maximum operating temperature.
- Meets requirements for instrumentation, control panels, power supplies, and transportation wiring.
- Designed for use in industrial, aerospace, automotive, and electrical equipment wiring.
Product Description
TE Connectivity 321045 PIDG insulated ring terminal offers a reliable solution for electrical wiring tasks requiring secure connections. Featuring a high conductivity copper body with tin plating, the terminal provides excellent electrical performance and corrosion resistance. It is insulated with a durable nylon sleeve colored blue to assist with fast wire size identification and ensure proper insulation support.
This ring terminal supports wire sizes ranging from 16 AWG to 14 AWG (1 mm² to 2.6 mm²), with an overall length of 27.38 mm and an M6 stud size. The internal copper sleeve allows for improved support and prevents wire fraying, while serrations in the barrel ensure maximum contact and tensile strength after crimping. A funnelled wire entry design allows for easy and fast insertion, enhancing production efficiency.
Designed to operate reliably at temperatures up to 105°C, these terminals are suitable for a wide range of applications including instrumentation and control, lighting, power supplies, panel boxes, transportation systems, lifting equipment, motors, aerospace, and household appliances.
The PIDG ring terminals conform to industry standards and provide uniform and reliable crimps when used with specialized dies and tooling. These features ensure consistent mechanical and electrical connection integrity in demanding circuit environments.
High conductivity copper body with tin plating for corrosion resistance. Nylon insulated sleeve in blue for easy wire size recognition. Copper sleeve in barrel prevents frayed wires and enhances insulation support. Serrated barrel ensures strong tensile strength after crimping.
Funnelled wire entry for rapid and secure wire insertion. Suitable for wire sizes 16 AWG to 14 AWG. Maximum operating temperature of 105°C. Applicable for industrial, aerospace, automotive, and electrical wiring applications.
Package contains the PIDG ring terminal with specified dimensions and features for professional electrical wiring use. This product is designed and manufactured in Hungary, ensuring quality and reliability for demanding environments.
Discover a wide selection of wire terminals and connectors in the Electronics & Electricals category on EnvMart, including Ring Terminals like this TE Connectivity model 321045, to meet your industrial wiring requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this ring terminal is 105°C.
This model supports wire sizes ranging from 16 AWG to 14 AWG, which corresponds to 1 mm² to 2.6 mm².
The stud size for this insulated ring terminal is M6.
The terminal features a high conductivity copper body with tin plating for corrosion resistance and a nylon insulation sleeve.
The overall length of this ring terminal is 27.38 mm.
The funnelled wire entry design facilitates fast and easy wire insertion, enhancing production efficiency during installation.
This terminal is suitable for applications including instrumentation, control panels, power supplies, and transportation wiring.
The serrated wire barrel provides maximum contact and tensile strength after crimping, ensuring a reliable connection.
This product is designed and manufactured in Hungary.
The insulation material of this terminal is nylon, which assists with wire size identification and insulation support.
The contact material used in this terminal is copper, which ensures efficient electrical contact.
This ring terminal belongs to the PIDG series, designed for reliable electrical connections.
