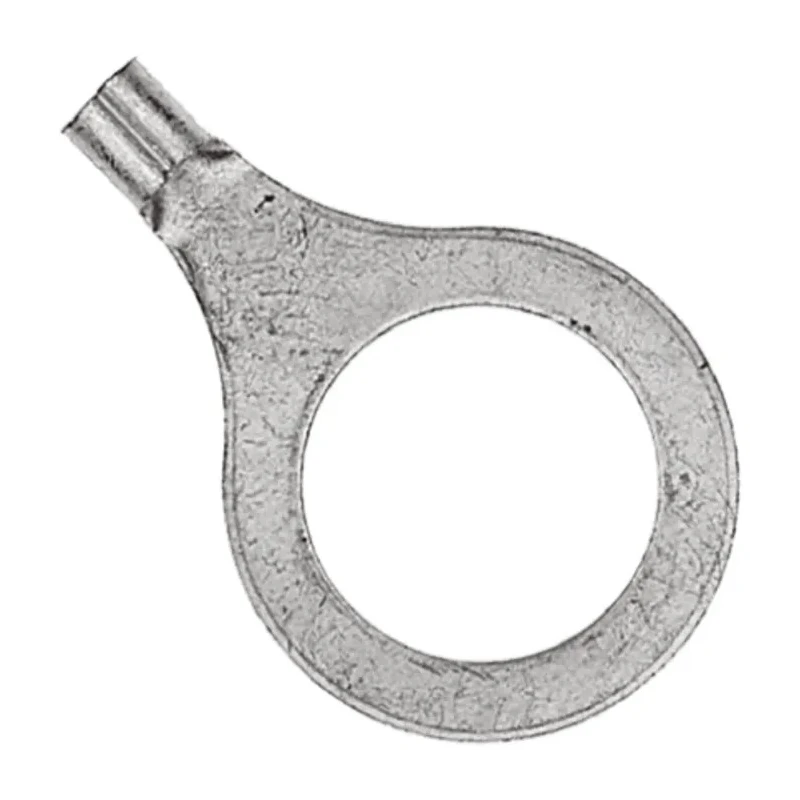

TE Connectivity Solistrand Uninsulated Ring Terminal M12 Stud Size 16 AWG 14 AWG Wire Size 50981

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Solistrand Uninsulated Ring Terminal M12 Stud Size 16 AWG 14 AWG Wire Size 50981

Name: TE Connectivity Solistrand Uninsulated Ring Terminal M12 Stud Size 16 AWG 14 AWG Wire Size 50981
Brand: TE Connectivity
SKU: 131966
Price: 1.08 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
THICKNESS	0.79mm
Model	50981
Insulation	Uninsulated
Overall Length	30.07mm
Contact Material	Copper
Series	Solistrand
Maximum Operating Temperature	170°C
Standards/Approvals	CSA, RoHS, UL
Contact Plating	Tin
Minimum Wire Size mm²	1mm²
Maximum Wire Size mm²	2.6mm²
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	14AWG
Outer Ring Diameter	19.05mm
Inner Ring Diameter	13.08mm
Stud Size	M12

Key Features

Constructed from high conductivity copper for optimal electrical performance.
Electro-tin plating provides enhanced corrosion resistance.
Brazed seams ensure increased barrel strength in harsh environments.
Serrated and dimpled barrel interior maximizes tensile strength and electrical contact.
Bell-shaped barrel entrance allows quick and easy wire insertion.
Rated for a maximum operating temperature of 170°C.
Suitable for various industrial applications including materials handling and telecommunications.
Inner barrel serration supports a cost-effective shorter barrel design.

Product Description

TE Connectivity 50981 Solistrand uninsulated ring terminal featuring M12 stud size and wire size range from 16 AWG to 14 AWG is engineered for reliable electrical connectivity in demanding industrial applications.

Manufactured from fine grade, high conductivity copper and electro tin plated for enhanced corrosion resistance, this ring terminal offers durable performance in harsh environments. The closed barrel features brazed seams for additional metal strength beneficial in industrial settings requiring durability and longevity.

The inner surface of the barrel is serrated to increase tensile strength and maximize electrical contact after crimping. This design also allows for a shorter barrel length, improving cost efficiency. The bell-shaped barrel entrance simplifies wire insertion, reducing installation time and labor.

These terminals support operating temperatures up to 170°C, making them suitable for applications such as materials handling equipment, motors, heavy machinery, transformers, switchgear, telecommunications, appliances, and control instruments.

TE Connectivity SOLISTRAND ring terminals are intended for industrial, commercial, and manufacturing environments requiring robust and reliable wire termination solutions. Constructed from high conductivity copper for excellent electrical performance.

Electro tin plating improves corrosion resistance in industrial conditions. Brazed seams provide superior barrel strength. Serrated inner barrel enhances tensile strength and electrical integrity. Bell-shaped barrel entrance ensures easy wire insertion and faster installation.

Maximum operating temperature rating of 170°C. Well-suited for heavy equipment, switchgear, telecommunications, and control systems. Compatible with dedicated Solistrand crimping tools for optimal crimps.

Choose TE Connectivity SOLISTRAND Ring Terminals for dependable and high-performance wire terminations in industrial and electrical applications. Explore the comprehensive range of connectors and wire terminals available on EnvMart for all your electrical component needs.
