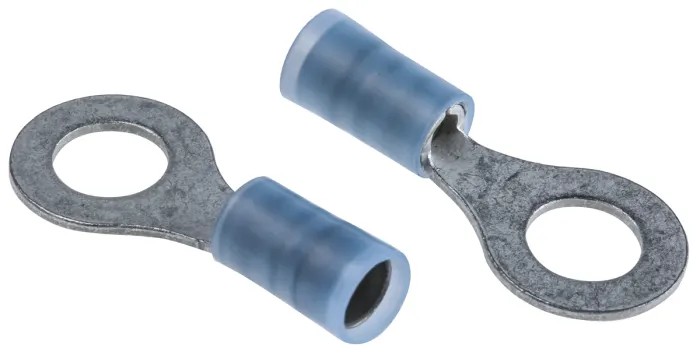

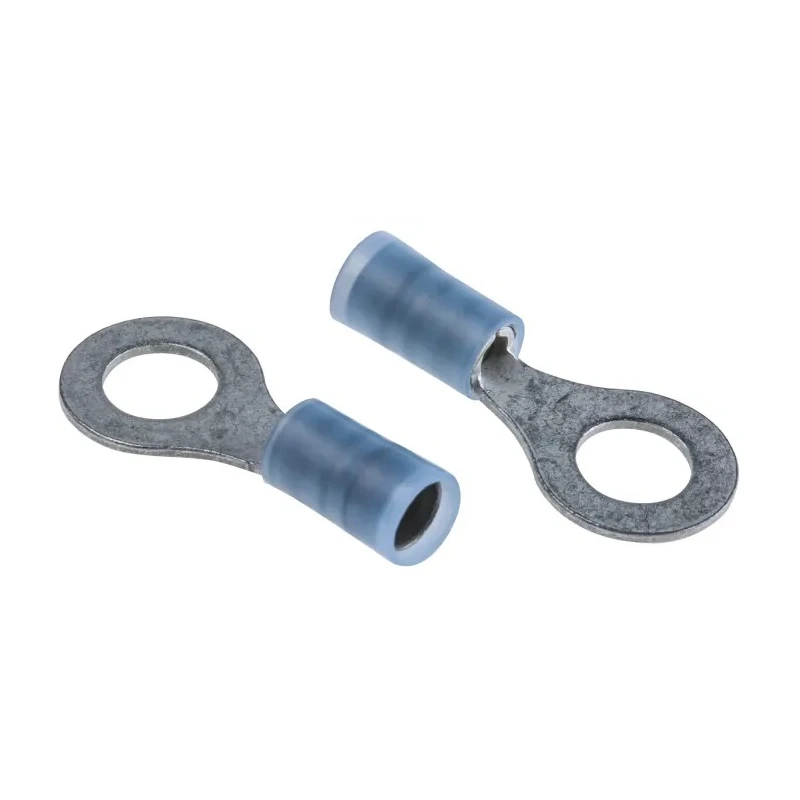

Molex Avikrimp Insulated Ring Terminal, M6 Stud, 18 AWG to 14 AWG Wire Size, Blue 19324-0010

Free Delivery in India | Lowest Global Shipping Charges

Molex Avikrimp Insulated Ring Terminal, M6 Stud, 18 AWG to 14 AWG Wire Size, Blue 19324-0010

Name: Molex Avikrimp Insulated Ring Terminal, M6 Stud, 18 AWG to 14 AWG Wire Size, Blue 19324-0010
Brand: Molex
SKU: 131760
Price: 0.49 USD
Availability: InStock



Category Ring Terminal Brand Molex Condition New

Specifications

Country of Origin	United States
Brand	Molex
Colour	Blue
THICKNESS	0.79mm
Insulation	Insulated
Overall Length	21.3mm
Contact Material	Copper Alloy
Series	Avikrimp
Maximum Operating Temperature	105°C
Insulation Material	Polyamide
Minimum Operating Temperature	-55°C
Contact Plating	Tin
Minimum Wire Size mm²	1mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	18AWG
Maximum Wire Size AWG	14AWG
Outer Ring Diameter	11.86mm
Inner Ring Diameter	6.61mm
Stud Size	M6

Key Features

Seamless barrel design enables easier crimping with barrel rotation in crimping jaws.
Halogen-free nylon polyamide insulation for enhanced safety and durability.
Blue color coding indicates wire size compatibility of 18 AWG to 14 AWG.
Copper alloy contact is tin plated for corrosion resistance and reliable conductivity.
Outer ring diameter measures 11.86 mm while inner ring diameter fits M6 stud size.
Overall length of the terminal is 21.3 mm with a thickness of 0.79 mm.
Rated for operating temperatures from -55°C up to 105°C.
Designed for use in electrical wire termination in industrial, commercial, and electronic applications.

Product Description

Molex 19324-0010 Avikrimp insulated ring terminal is engineered for reliable and efficient wire termination with M6 stud size compatibility. It is designed to accommodate wire sizes from 18 AWG to 14 AWG, featuring a durable polyamide insulation that is halogen free, ensuring safety in various electrical installations.

The terminal construction includes a seamless barrel which facilitates easier crimping by allowing barrel rotation within crimping jaws, improving the quality of the crimp and ensuring a secure connection. The copper alloy contact material is tin plated, providing excellent corrosion resistance and enhanced electrical conductivity, suitable for demanding industrial environments.

This ring terminal has an outer ring diameter of 11.86 mm and an inner ring diameter of 6.61 mm to fit M6 studs perfectly. The overall length is 21.3 mm with a thickness of 0.79 mm, making it compact yet robust for tight spaces.

Operating temperature ranges from -55°C up to 105°C, suitable for various industrial and electronic applications, including power connectors and wire splices. Its blue insulation indicates wire size compatibility, aiding identification during installation.

Seamless barrel design for easier crimping and improved reliability. Halogen-free polyamide insulation enhances safety and durability. Tinned copper alloy contacts resist corrosion. Blue color coding matches wire size 18 AWG to 14 AWG.

Compact design with precise dimensions for M6 stud. Wide operating temperature range from -55°C to 105°C. Manufactured in the United States to high quality standards.

Ideal for industrial manufacturing, electronics assembly, automotive wiring, and HVAC wiring applications. This product offers reliable performance in demanding environments where quality wire termination is essential. Explore more options in the Ring Terminal category on EnvMart for compatible connectors and splicing solutions.
